BF 50 Wall Fans

Technical User Guide 89

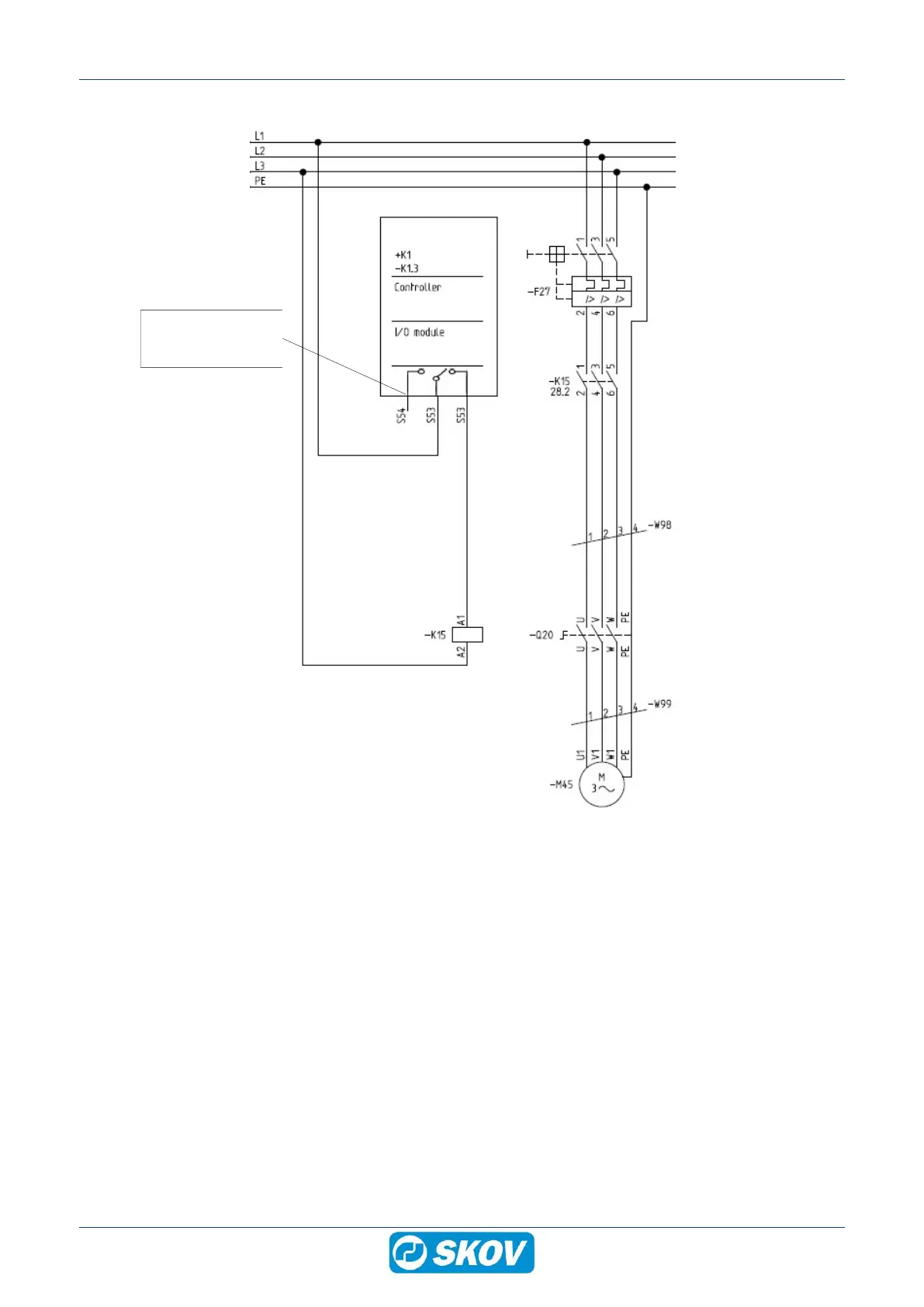

4.1.30.3 Circuit Diagram

Example of terminal number

For correct connection

see the setup menu

Show connection in controller

Fan 3x230V
