BF 50 Wall Fans
72 Technical User Guide
4.1.22 BF 50 LPC 3x230 V stepless (435384)

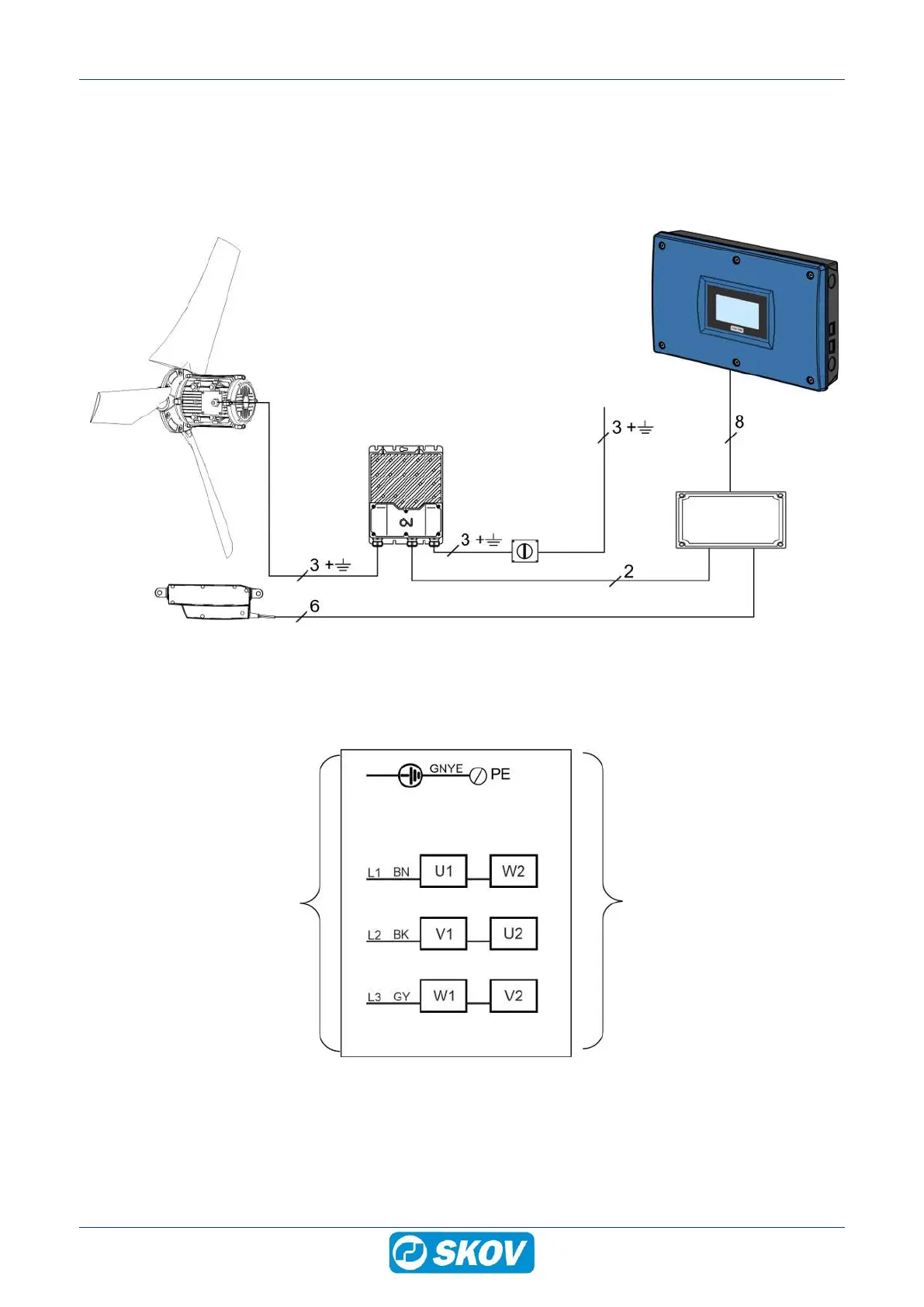

4.1.22.1 Cable plan
3x230 V
LPC fan
LPC motor controller
Power supply
isolator
Controller
LPC actuator stepless
Connection box
4.1.22.2 Terminals in LPC 3x230 V fan
External
Internal
