BF 50 Wall Fans
Technical User Guide 45

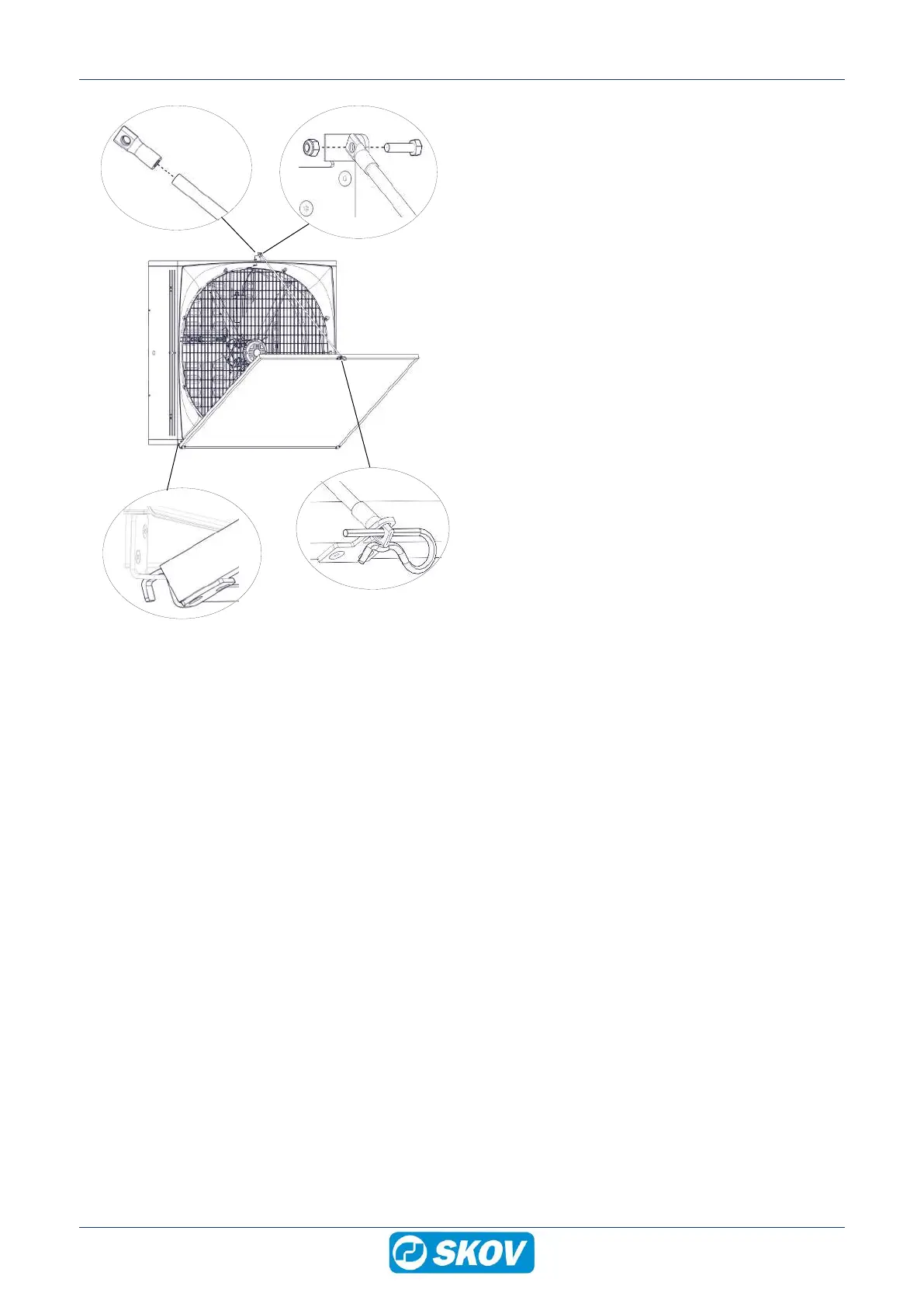

Screw 2 eye joiners onto the pull rod.
Mount eye joiner in top bracket mounted on wall with 1
x M6x20 screw and M6 washer.
Mount plate in the bottom bracket on the wall fan.
Mount eye joiner in top bracket on plate with split pin.
