Section 2 - Operation Visual and Daily Maintenance Inspections
Disc Brake (Models 71xx & 8xxx)•
Ensure there are no loose or missing
-
parts and there is no visible damage.
Pin Brakes (Model 9250)•
Ensure there are no loose or missing -
parts and there is no visible damage.
Ensure tabs are not locked. -
Drive Motor•
Ensure there are no loose or missing -
parts and there is no visible damage.
Ensure all bolts are properly tightened. -
Ladder•
Ensure there are no loose or missing -
parts and there is no visible damage.
Outriggers•
Ensure there are no loose or missing -
parts and there is no visible damage.
2.8-11 Manuals
Ensure a copy of operating manual, manual
of responsibilities and ANSI/CSA certificate
are enclosed in manual storage box.
Check to be sure manual storage box is -
present and in good condition.
Ensure manuals are legible and in good -
condition.
Always return manuals to the manual -
storage box after use.
Wheel/Tire
Assembly
Steer Cylinder
Assembly
Tie Rod

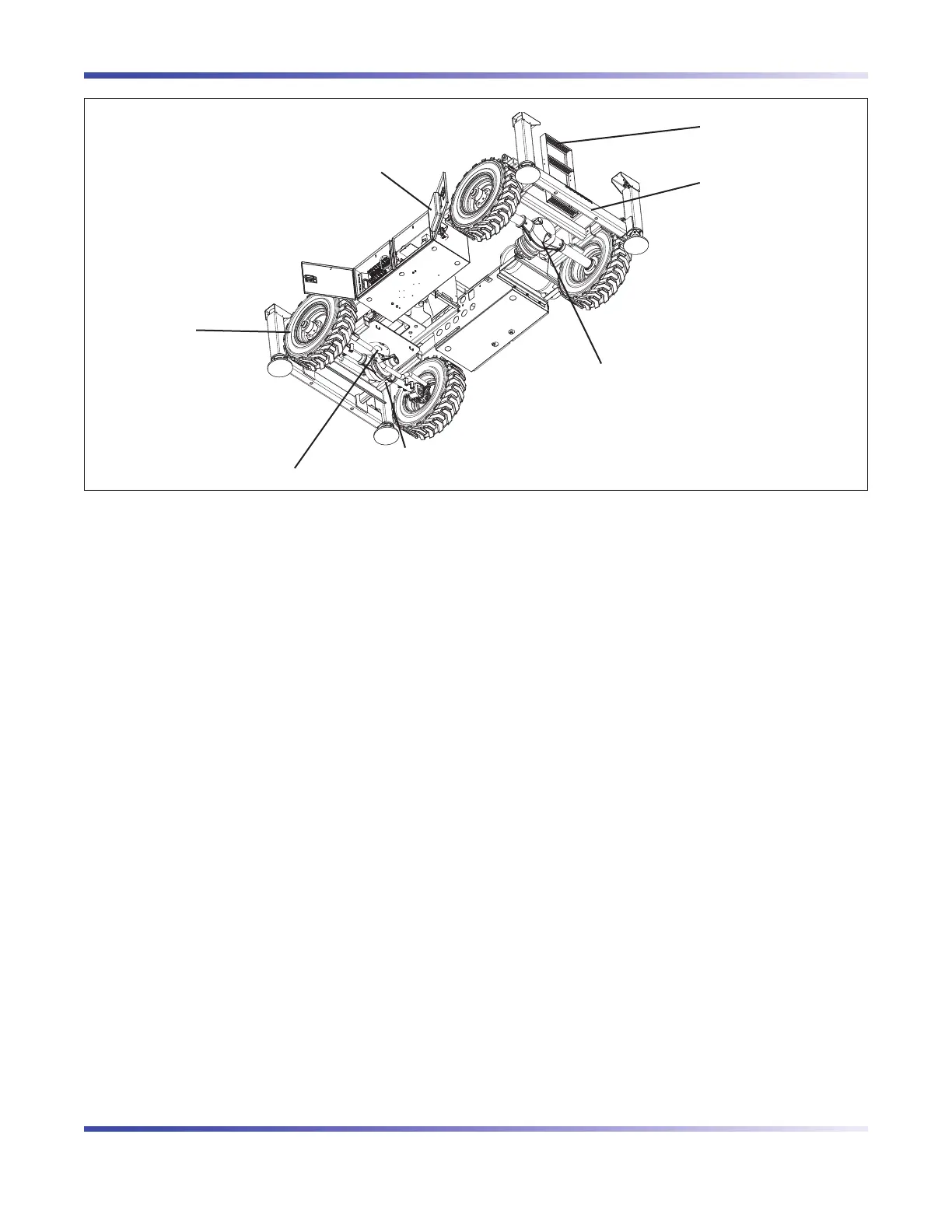

Model 71xx Bottom View
Base
Weldment
Manual Storage
Box
Ladder
Drive Axle
