Skyjack 8243 User Manual

Mid Size & Full Size RT’s
Engine Powered February 2008
SKYJACK, Page 53
Winching and Towing Procedure Section 2 - Operation
Model 9250
WARNING
Do not manually disengage brakes if the
aerial platform is on a slope.
1

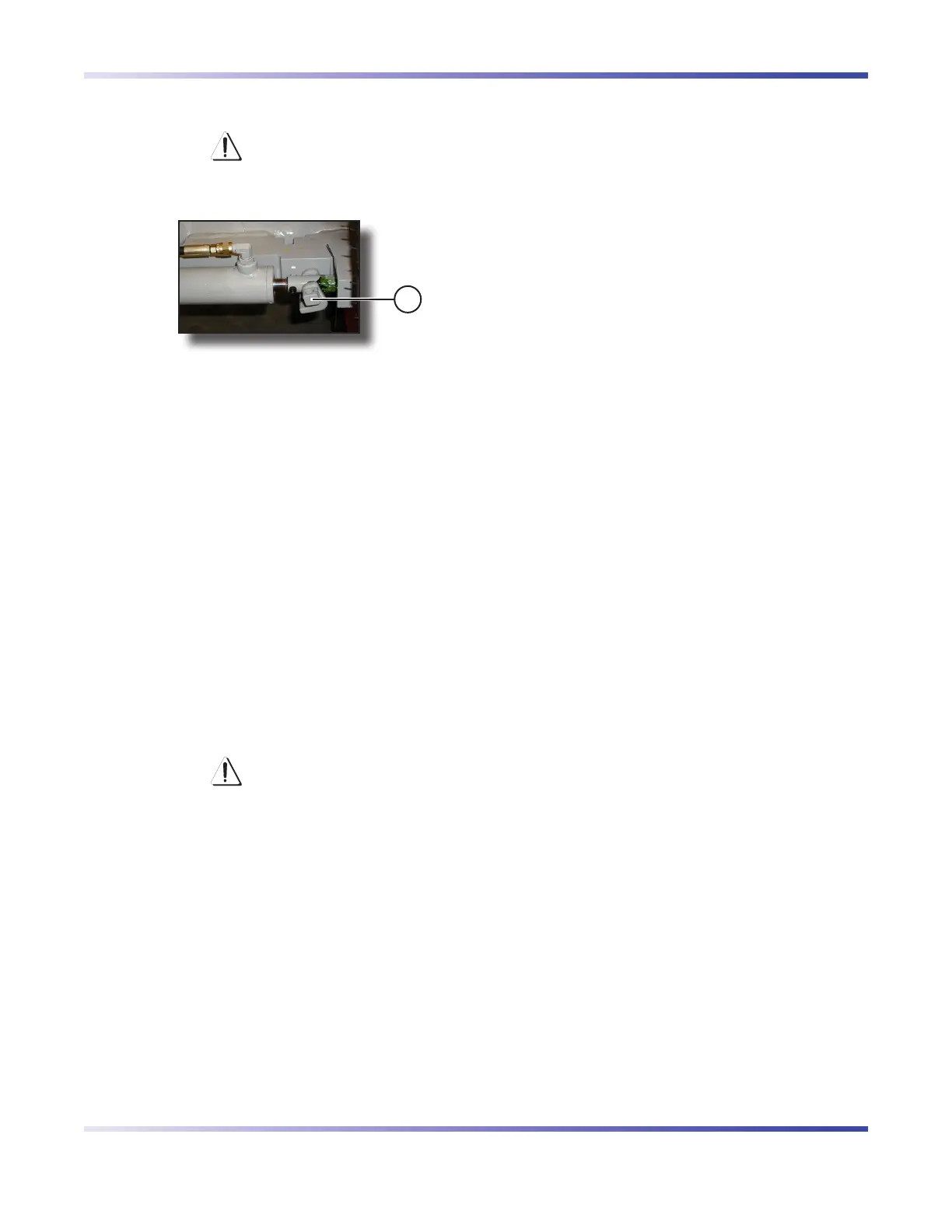

Figure 2-23. Brake
1. Ensure aerial platform is on level ground. Chock
or block wheels to prevent aerial platform from
rolling.
2. Turn emergency main power disconnect switch
to off position.
3. For Left-Side Brake: Using a 3/4” (19 mm) wrench,
rotate the block (item 1) on the brake pin 90°
clockwise. The brake pin should be clear of the
brake disc.
4. For Right-Side Brake: Using a 3/4” (19 mm)
wrench, rotate the block (item 1) on the brake pin
90° counterclockwise. The brake pin should be
clear of the brake disc.
5. Remove wheel chocks or blocks, then push, winch
or tow aerial platform to desired location.
WARNING
Brakes must be reengaged immediately
after reaching desired location.
6. Position aerial platform on a firm and level
surface.
7. Chock or block wheels to prevent aerial platform
from rolling.
8. Reengage brake by doing the following steps.
9. For Left-Side Brake: Using a 3/4” (19 mm)
wrench, rotate the block (item 1) on the brake pin
90° counterclockwise.
10. For Right-Side Brake: Using a 3/4” (19 mm)
wrench, rotate the block (item 1) on the brake pin
90° clockwise.
