Section 2 - Operation Function Tests
Test Steering•
1. Ensure engine is running.
2. Press rocker switch on top of controller
handle to “ ” left and “ ”
right.
Result: Steer wheels should turn left and
right.
Test Driving•
1. Ensure path of intended motion is clear.
2. On platform control console, select
off/lift/drive key switch to “
” drive
position.
3. Activate and hold “
”enable trigger
switch.
4. Slowly move controller handle in “
”
forward or “
” reverse direction until aerial
platform begins to move, and then return
handle to center position.
Result: Aerial platform should move in
forward or reverse direction, and then
come to a stop.
Test Speed Limit•
WARNING
Be aware of overhead obstructions
or other possible hazards around the
aerial platform when lifting.
1. Ensure path of intended motion is clear.
2. Raise the platform until approximately a
height of 7 feet (2 meters) is reached and
attempt to drive forward or reverse.
Result: Aerial platform should move slower
than when it is in stowed position.

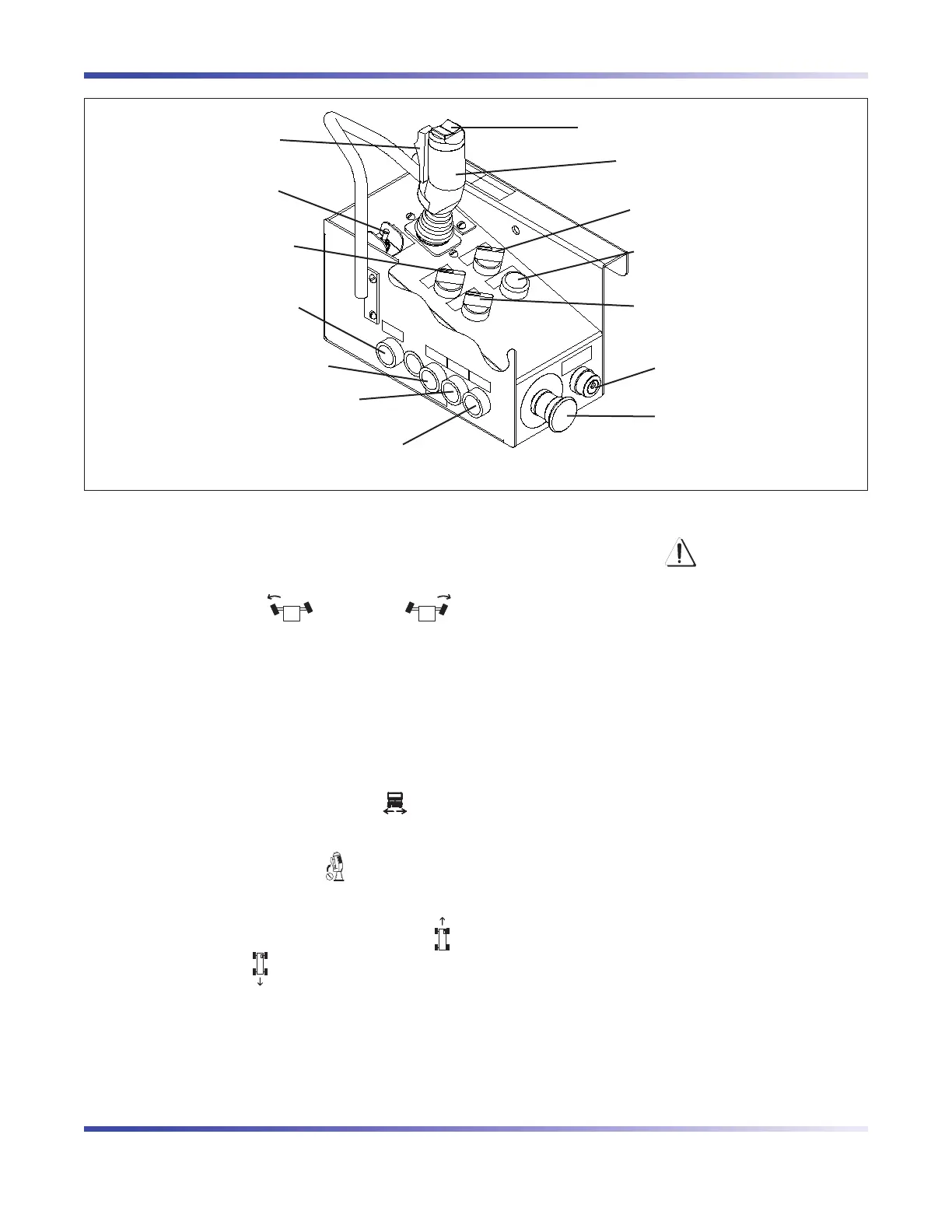

Torque Switch
Engine Start
Pushbutton
Horn
Pushbutton
Glow Plug
Pushbutton
Lift Enable
Pushbutton
Emergency Stop
Button
Low/High Throttle
Switch
Operation Light
Off/Lift/Drive Key
Switch
High/Low Torque
Switch
Drive/Steer Controller
Raise/Off/Lower
Switch
Rocker Switch
Enable Trigger
Switch
