Section 2 - Familiarization
2.1 Familiarization of SJ12/16 Series
2
1
2
1
2
1
2
WARNING
Aerial Platform Familiarization should be given only to individuals who are QUALIFIED And
TRAINED to operate an aerial platform.
Do not operate this aerial platform without proper authorization and training. Failure to avoid
this hazard could result in death or serious injury.
It is the responsibility of the operator to read, completely understand and follow all
instructions and warnings contained in this operating manual and on the aerial platform.

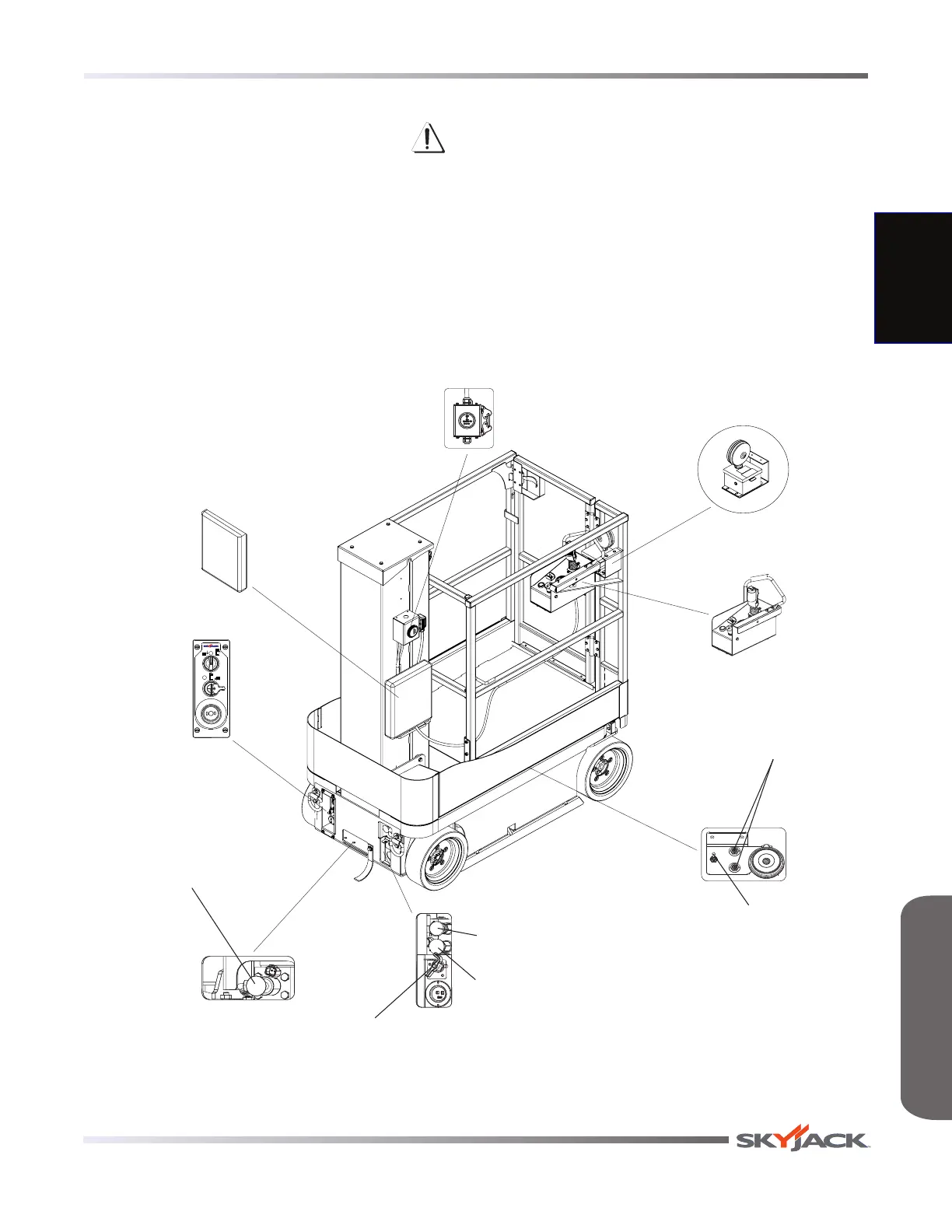

Outdoor Option Flashing
Light (If Equipped)
Manual
Box
Platform Control
Console
Main Power
Disconnect
Base
Control
Console
Emergency
Lowering Valve
Brake Hand
Pump
Brake Auto Reset
Valve Plunger
Hourmeter
Circuit
Breaker
Diagnostic
Switch
Vertical Mast
Page 13
TM

Skyjack SJ12 Specifications

General

Gradeability	25%
Drive Motor	24V DC
Machine Width	32 in (0.81 m)
Stowed Height	6.5 ft
Overall Width	32 in (0.81 m)
Stowed Height (Rails Folded)	6.5 ft
Drive Speed (Elevated)	0.5 mph (0.8 km/h)
Power Source	Electric
