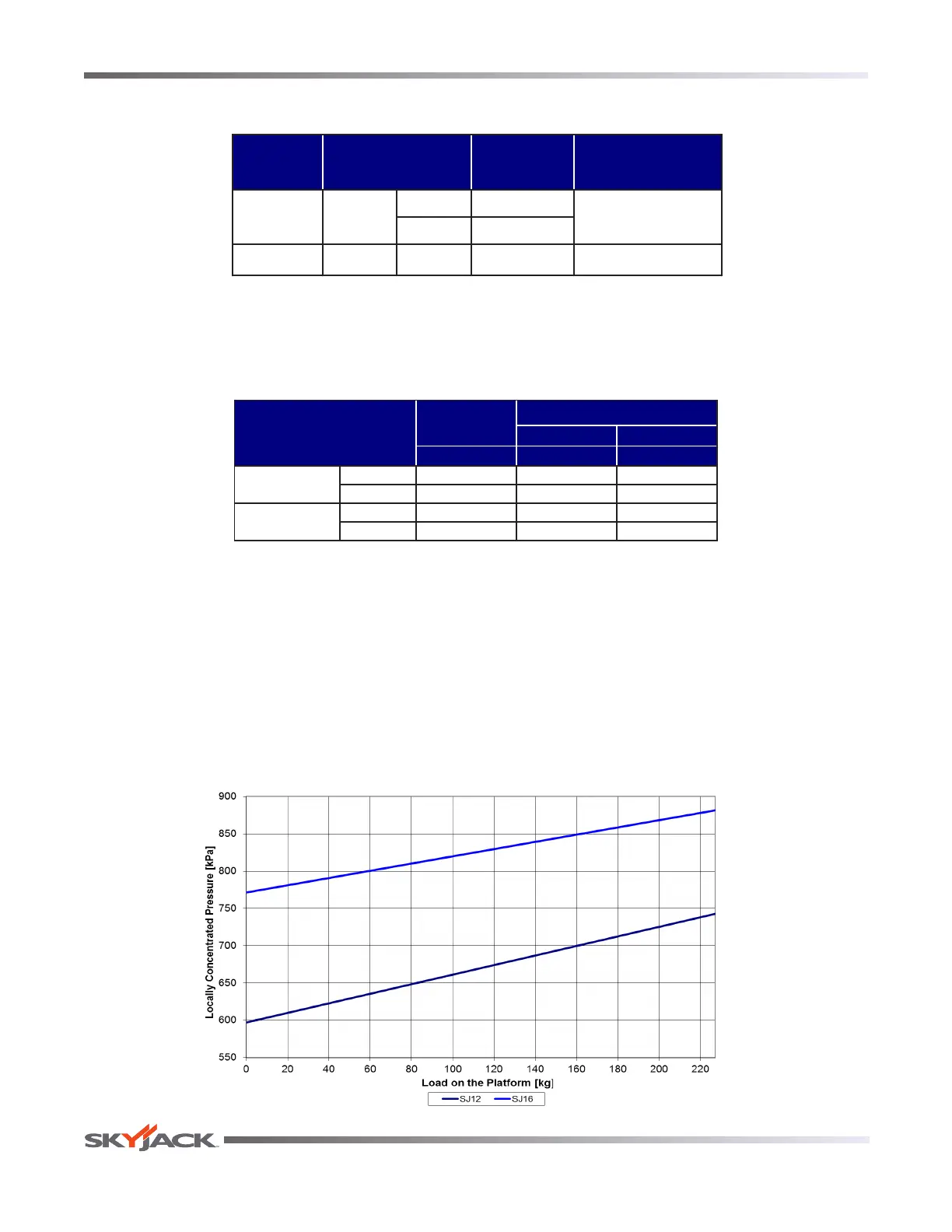

Skyjack SJ12 Operating Manual

Tables Section 4
Table 4.4 Maximum Platform Capacities (Evenly Distributed)
2 Person(s) No wind
1 Person(s) 12.5 m/s
SJ16
227 kg 1 Person(s) No wind 1.5 degrees x 3 degrees
281AA_CE
MODEL Capacity
Maximum
Wind Speed
Tilt Cutout Setting
SJ12
227 kg 1.5 degrees x 3 degrees
NOTE
Refer to Section 3.6-2b for SJ16 MEWPs equipped with the Outdoor Option.
Table 4.5 Floor Loading Pressure
Wheel OUP**
kg kg
kPa (kN/m
2
)
min* 863 275 8.1
max* 1090 430 10.2
min* 980 355 9.2
max* 1207 510 11.3
282AB_CE
*
max - Aerial platform weight + all options + full capacity
**
NOTE:
min - Aerial platform weight with no options
LCP - Locally Concentrated Pressure is a measure of how hard the aerial platform
presses on the areas in direct contact with the floor. The floor covering (tile, carpet,
etc.) must be able to withstand more that the indicated values above.
OUP - Overall Uniform Pressure is a measure of the average load the aerial
platform imparts on the whole surface directly underneath it. The structure of the
operating surface (beams, etc.) must be able to withstand more than the indicated
values above.
The LCP or OUP that an individual surface can withstand varies from structure to
structure and is generally determined by the engineer or architect for that particular
structure (see Floor Loading Pressure chart below).
MODEL
Total Aerial
Platform Weight
Total Aerial Platform Load
SJ12
SJ16
Floor Loading Pressure
SJ16
SJ12
Page 52
Vertical Mast
TM

Skyjack SJ12 Specifications

General

Gradeability	25%
Drive Motor	24V DC
Machine Width	32 in (0.81 m)
Stowed Height	6.5 ft
Overall Width	32 in (0.81 m)
Stowed Height (Rails Folded)	6.5 ft
Drive Speed (Elevated)	0.5 mph (0.8 km/h)
Power Source	Electric
