Control Functions Section 2 - Familiarization
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
FAMILIARIZATIONFAMILIARIZATION
2.2 Component Identification
The following descriptions are for identification,
explanation and locating purposes only.
2.2-1 Main Power Disconnect Switch
This switch is located at the rear of the base.
1

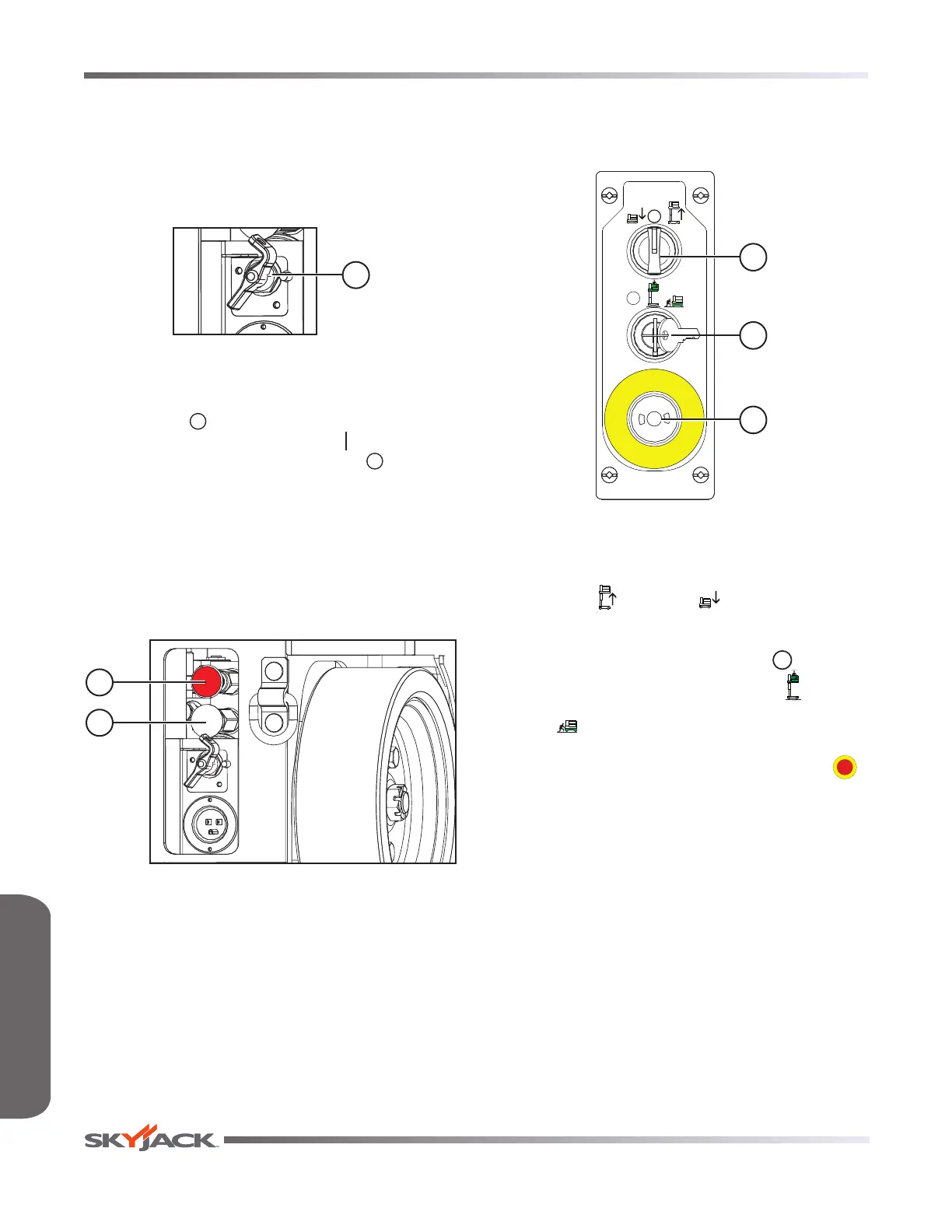

Figure 2-1. Main Power Disconnect Switch
1. Main Power Disconnect Switch - This switch,
when in “ ” off position, disconnects power to
all circuits. Switch must be in “ ” on position to
operate any circuit. Turn switch “ ” off when
transporting aerial platform.
2.2-2 Brake System
The brake system is located at the rear of the base. The
brakes must be manually disengaged before pushing,
winching or towing. Refer to Section 2.5-1 for procedure
on how to release brakes manually. The system contains
the following controls:
2
1
Figure 2-2. Disc Brake System
1. Brake hand pump
2. Brake auto reset valve plunger
2.2-3 Base Control Console
This control console is located at the rear of the base.
It contains the following controls:
2
1
3
Figure 2-3. Base Control Console
1. Lower/Neutral/Raise Switch - This switch
controls “
” raising or “
” lowering of platform.
2. Off/Platform/Base Key Switch - This three-way
switch allows the operator to turn “ ” off power
to aerial platform or to activate either “
” platform
or “
” base controls.
3. Emergency Stop Button - This button “ ”,
when depressed, disconnects power to the control
circuit.
Page 14
Vertical Mast
