Skyjack SJ12 Operating Manual

Component Identification Section 3 - Operation
3.6 Component Identification (Optional Equipment/Attachments)
The following descriptions are for identification, explanation and locating purposes only.
3.6-1 Flashing Light (If Equipped)

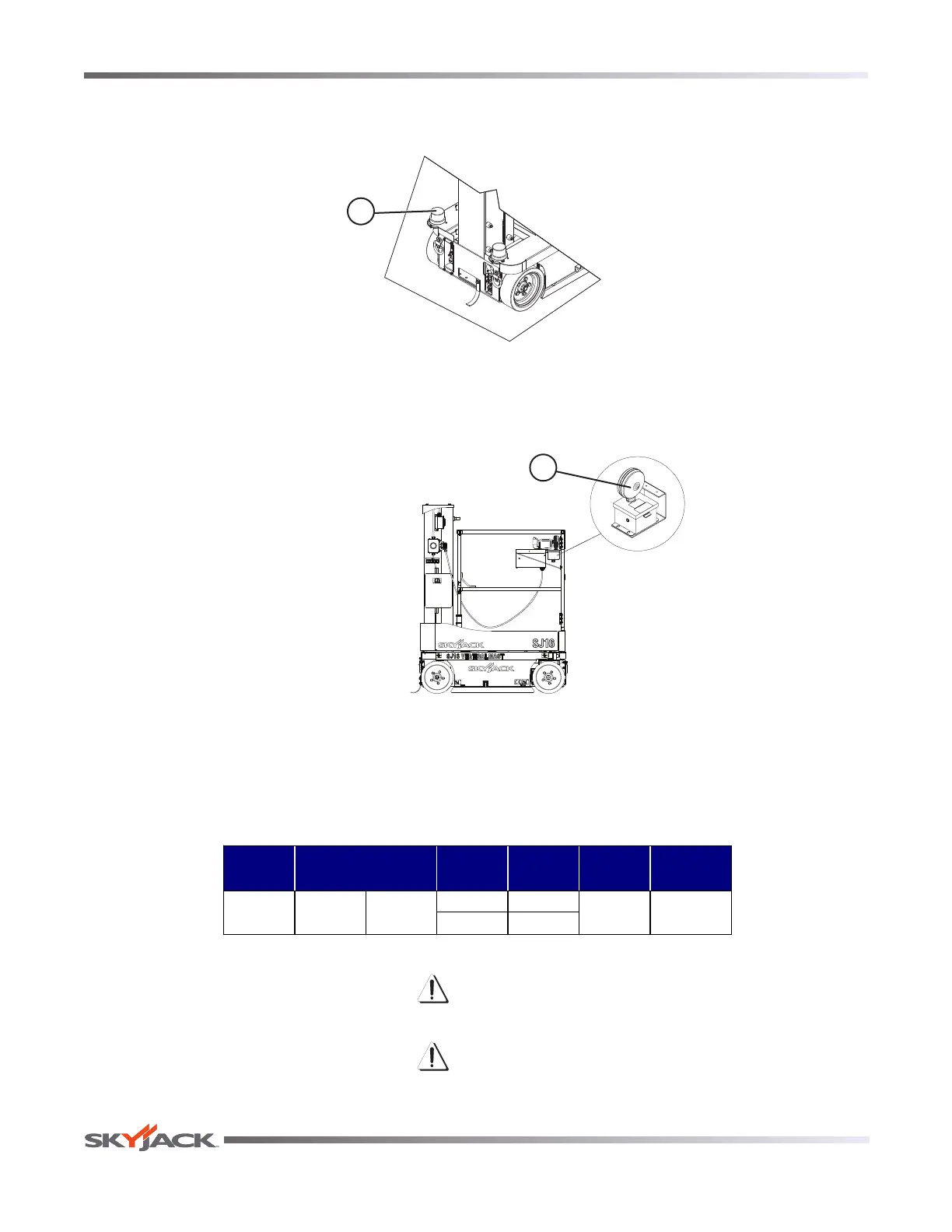

Figure 3-6. Flashing Light
1. Flashing Light Option - This light is attached to the base of the platform and flashes when any movement control
is activated.
3.6-2a Outdoor Option Flashing Light (If Equipped)
1
Figure 3-7. Outdoor Option Flashing Light
1. Outdoor Option Flashing Light - This light is attached to the flashing light box. If the emergency stop button/
operation light is illuminated, the outdoor option flashing light flashes when the platform is raised above 3.6 m (12
feet). Refer to Section 3.6-2b for usage limitations.
3.6-2b Outdoor Option - Maximum Platform Capacities (Evenly Distributed)
3.6 m 12.5 m/s
4.75 m No wind
263AE_CE_SJ16_OutdoorOpt
*If used in wind condition above 0 m/s, elevation must not exceed 3.6 m (12 feet).
Tilt Cutout
Setting
*SJ16
227 kg 1 Person(s) 200 N
1.5 degrees x
3 degrees
MODEL Capacity
Platform
Height
Maximum
Wind Speed
Max.
Manual
Force
WARNING
Do not operate the MEWP at a height exceeding 3.6 m (12 feet) if wind conditions exceed 0 m/s.
WARNING
MEWP must be equipped with working flashing light and limit switch to be able to elevate the MEWP
in wind conditions above 0 m/s.
1
Page 38
Vertical Mast
TM

Skyjack SJ12 Specifications

General

Gradeability	25%
Drive Motor	24V DC
Machine Width	32 in (0.81 m)
Stowed Height	6.5 ft
Overall Width	32 in (0.81 m)
Stowed Height (Rails Folded)	6.5 ft
Drive Speed (Elevated)	0.5 mph (0.8 km/h)
Power Source	Electric
