Skyjack SJ12 Operating Manual

Section 3 - Operation Component Identification
3.5-4 Platform Maintenance Lock Mechanism
This locking mechanism is located underneath the
platform.
1

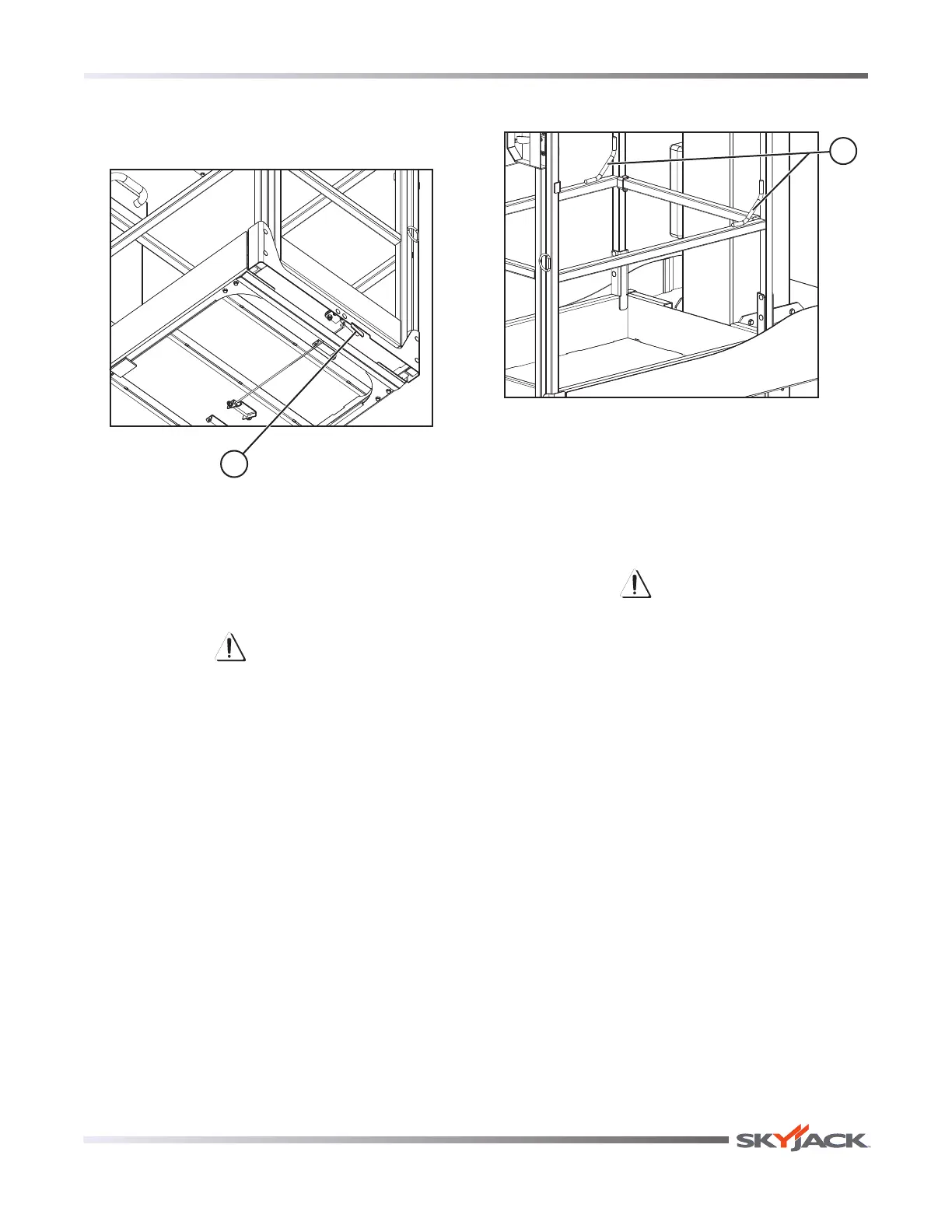

Figure 3-4. Platform Maintenance Lock
1. The aerial platform is equipped with a maintenance
lock mechanism. When engaged, it allows access
to the hydraulic/electrical compartment. During
this access, it disables all functions.
CAUTION
Aerial platform motion can occur when
engaging diagnostic switch.
2. Hydraulic functions can be enabled by engaging
the diagnostic switch.
3.5-5 Fall Protection Anchorage
1
Figure 3-5. Fall Protection Anchorage
1. Fall Protection Anchorage - Use this as an
attachment point for a fall restraint system. Do not
attach anchorage connectors to any other point on
the platform. Do not use this to lift, anchor, secure
or support the platform or any other apparatus or
material.
WARNING
The fall protection anchorage is to be
used for restraint, within the limits of the
platform, only.
Vertical Mast
Page 37
TM

Skyjack SJ12 Specifications

General

Gradeability	25%
Drive Motor	24V DC
Machine Width	32 in (0.81 m)
Stowed Height	6.5 ft
Overall Width	32 in (0.81 m)
Stowed Height (Rails Folded)	6.5 ft
Drive Speed (Elevated)	0.5 mph (0.8 km/h)
Power Source	Electric
