Primary assemblies Section 1 – About this Mobile Elevating Work Platform (MEWP)
1.2 Primary assemblies
The MEWP has these primary assemblies:
1. Base
2. Lift mechanism
3. Platform.
1
Base: The base is a rigid, one-piece weldment
consisting of these components:
▪
Hydraulic system and components.
▪
Electrical system and components.
▪
Two 12 volt batteries.
▪
Emergency-lowering system at the base of the
mast.
▪
The front wheels are powered by electric
motors, are steered by a hydraulic cylinder,
and have spring-applied, electronically-
released brakes
▪
The rear wheels are non-driven.
2
Lift mechanism: The mast assembly is raised
and lowered by a multi-stage hydraulic-lift
cylinder with holding valves.
3
Platform: The platform has these parts.
▪
Tubular support frame.
▪
Slip-resistant deck surface.
▪
Fixed tubular guardrails, with mid-rails, and toe
boards.
▪
You can enter and exit the platform from the
front of the MEWP through a spring-returned
gate with a latch.
▪
AC power outlet.
1
2
3

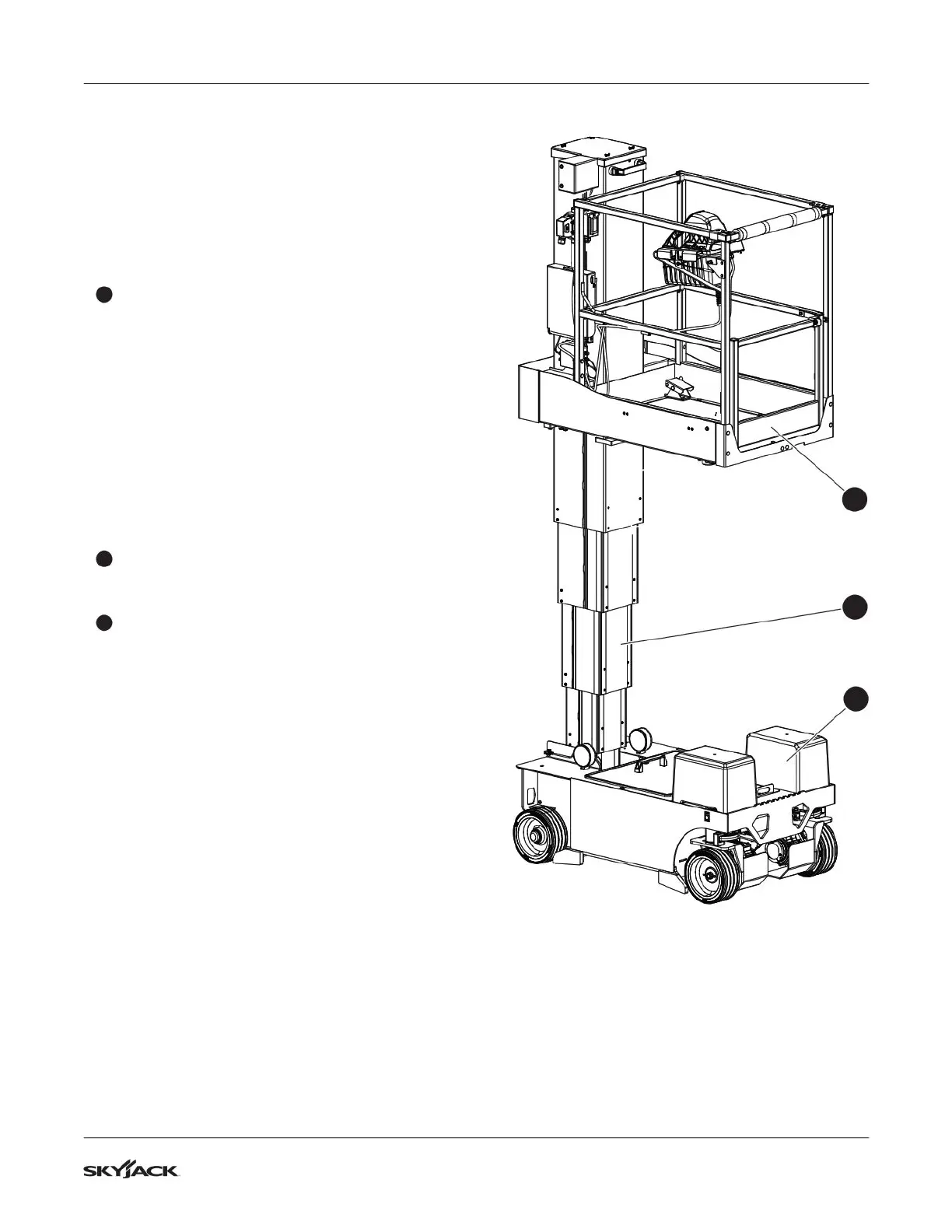

Figure 01 Primary assemblies
