27
SJ20 236504ACA
General components Section 3 – Familiarization

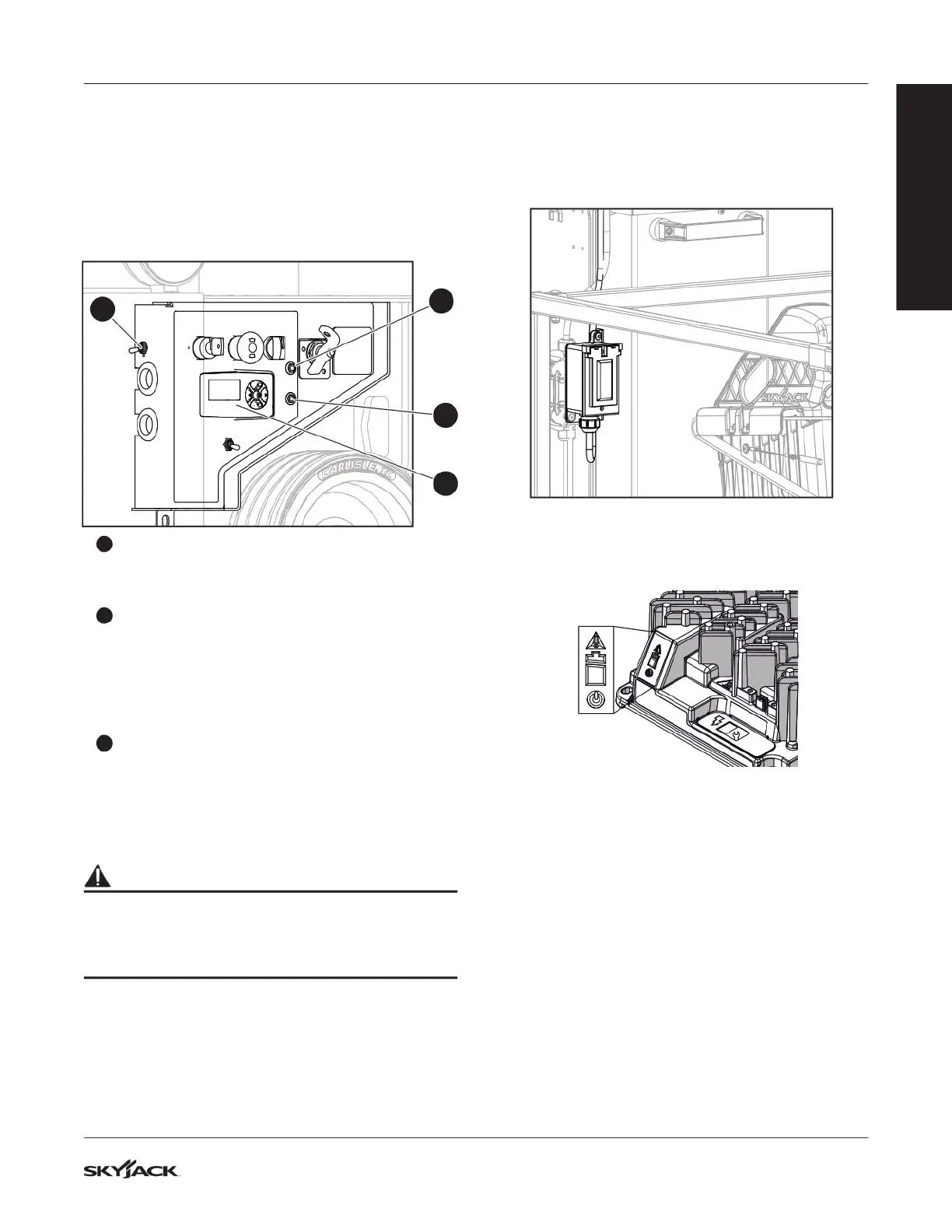

3.5 General components
3.5-1 Circuit breaker and diagnostic
switch
Refer to Section 3.1 for the location of the circuit
breaker/diagnostic switch.
1
3
3
2
1
Diagnostic switch
The diagnostic switch is used during MEWP
servicing to diagnose MEWP operation.
2
Display Panel
This display panel, located in the base controls,
shows operation and parameter information.
Examples are the battery state of charge, hours
of operation, machine speed, and diagnostic
information.
3
Power-overload circuit breaker
If a power overload occurs, the circuit breaker
opens. Push the circuit breaker to reset the
circuit.
WARNING
Do not use the diagnostic switch when there are
personnel on the platform. The MEWP may move
when you engage the diagnostic switch. If you do
not obey, there is a risk of death or serious injury.
3.5-2 AC power socket on the platform
The AC power socket is a source of AC power on the
platform when the plug at the base is connected to a
generator or an external power supply.
3.5-3 Battery charger
The charger is at the rear of the base. Refer to
Section 6.7 for battery charging instructions.
3.5-4 Motion alarm
The alarm makes a sound when a control function
operates. On some MEWPs, an amber flashing light
goes with this alarm.
FAMILIARIZATION
