Section 8 – Labels
Base control console labels

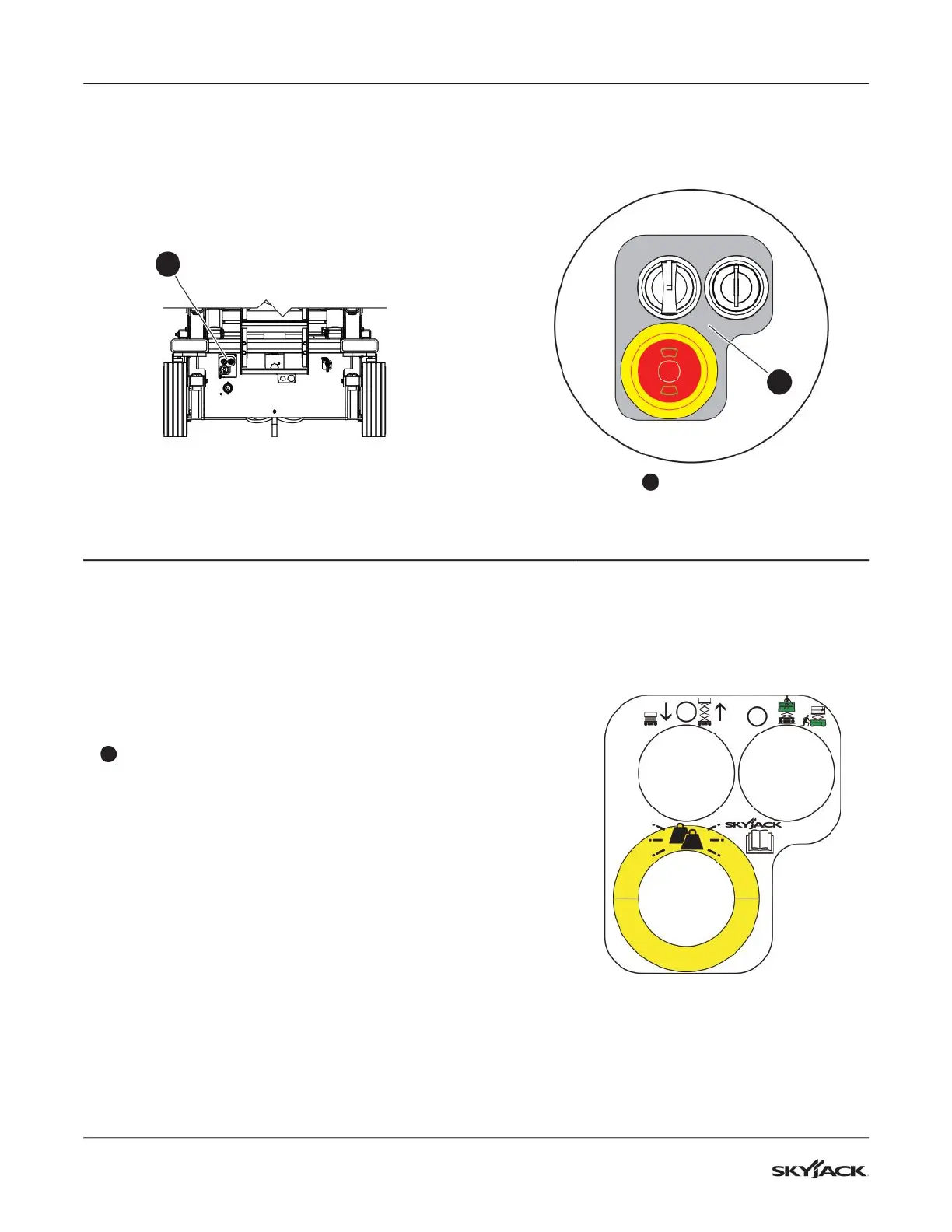

Description Label Pictorial
1
Base controls
▪
Select the off position to turn off power to the MEWP, the
platform position to energize the platform controls, or the
base position to energize the base controls.
▪
Turn and hold the lower/neutral/raise switch to lower or
raise the platform.
▪
Push the emergency-stop button to disconnect power
to the control circuit. Pull the emergency-stop button to
connect the power again.
TM
8.1 Base control console labels
1
A
A
Base controls
