216380ACA SJ3215, SJ3219, SJ3220, SJ3226, SJ4726, SJ4732, SJ4740
102

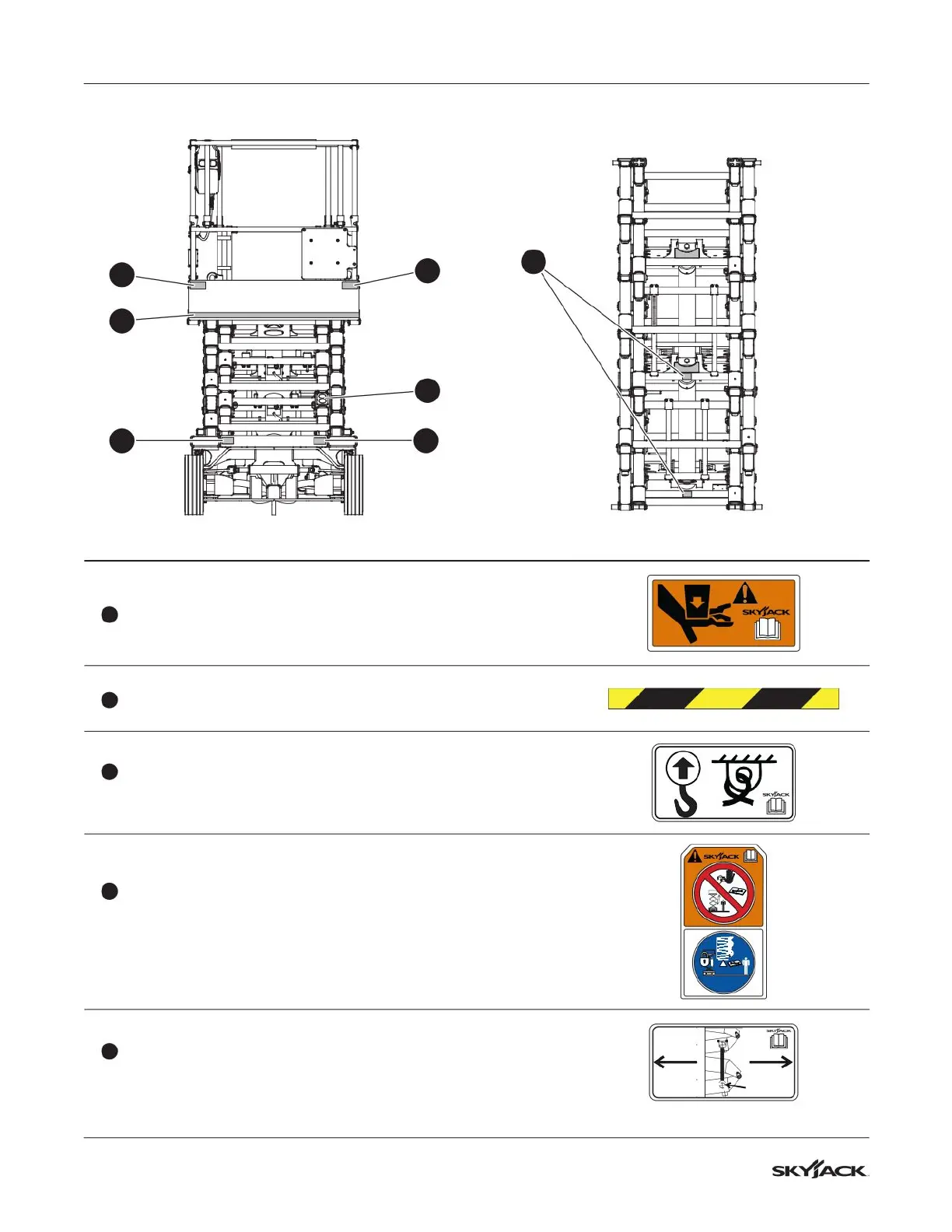

Section 8 – Labels
Labels
Description Label Pictorial
1
Warning - crush hazard
TM
2
Caution tape stripe
3
Lift and tie-down points
Only use these points to lift or tie-down the MEWP.
TM
4
Warning - deploy maintenance support(s)
Do not do maintenance or inspections in the scissor assembly
unless the maintenance support(s) are deployed. Refer to
Section 6.8.
TM
5
Maintenance support(s)
Engage the maintenance support(s) here.
TM
1
1
2
3 3
5
4
8.5-4 Front 8.5-5 Scissor assembly - rear
