Labels Section 8 – Labels
Description Label Pictorial
6
Maintenance support procedure (SJ3215, SJ3219, SJ3220,
SJ3226, SJ4726, SJ4732 only)
Refer to the operation manual.
1. Remove all personnel and material from the platform.
2. Raise the platform until there is adequate clearance to deploy
the maintenance support.
3. Deploy the maintenance support. Lower the platform until
the bottom ends of the maintenance support touches the
cross bar with the label, and the maintenance support holds
the scissors.
4. The maintenance support is now secured.
(A) Turn the main power disconnect switch to the off
position.
(B) Do the necessary inspection or maintenance.
5. Turn the main power disconnect switch to the on position.
6. Raise the platform until there is adequate clearance to retract
the maintenance support.
7. Store the maintenance support into the storage brackets.
8. Fully lower the platform.
1
5
A
7
B
6
8
4
3
2
TM

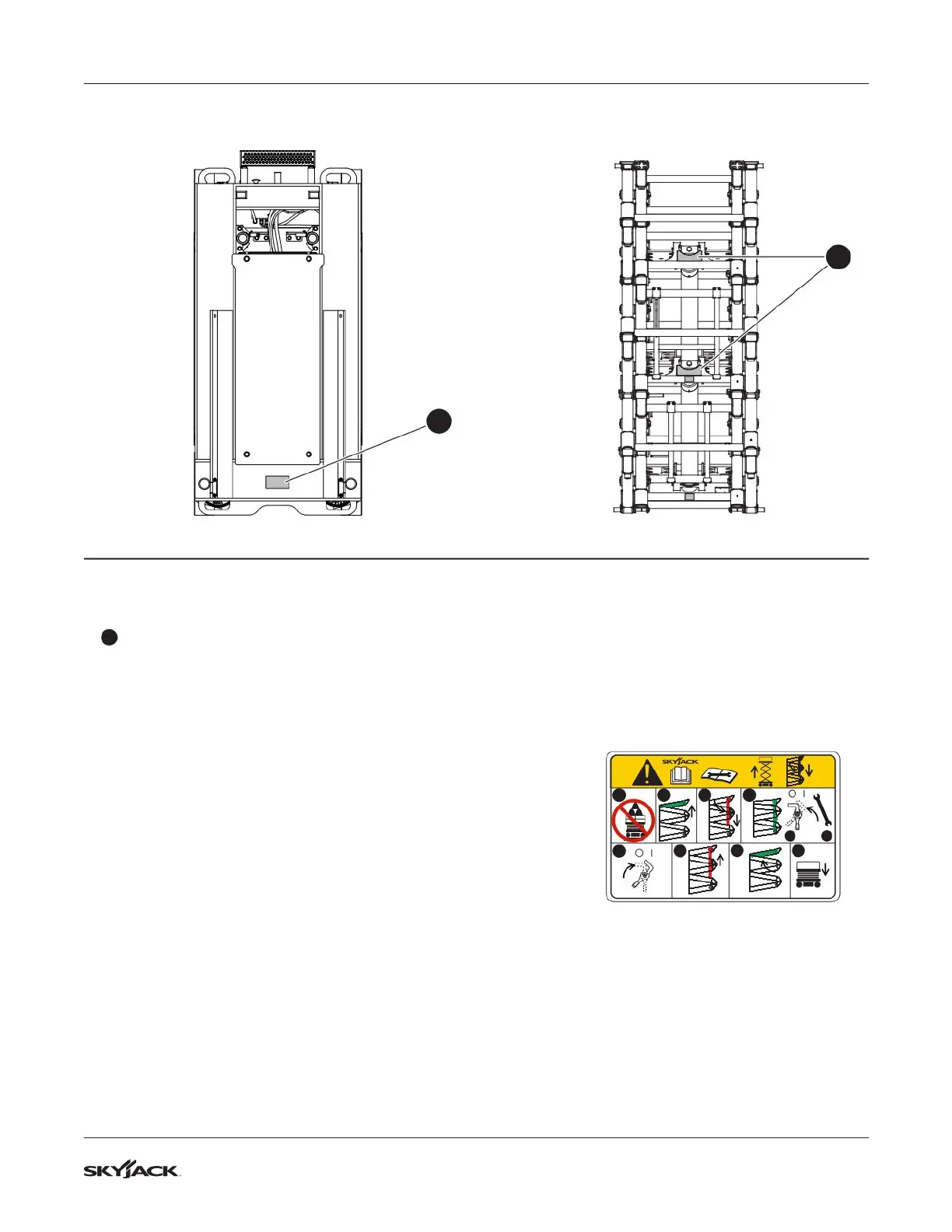

Scissor assembly - rear, continued
SJ3215, SJ3219, SJ3220, SJ3226, SJ4726, SJ4732 Location SJ4740 Location
