Section 8 – Labels
Labels
Description Label Pictorial
6
Maintenance supports procedure (SJ4740)
Refer to the operation manual.
1. Remove all personnel and material from the platform.
2. Raise the platform until there is adequate clearance to deploy
the maintenance support.
3. Deploy the top and lower maintenance supports. Lower the
platform until the bottom ends of the maintenance supports
touch the cross bars with the labels, and the maintenance
supports hold the scissors.
4. The maintenance supports are now secured.
(A) Turn the main power disconnect switch to the off
position.
(B) Do the necessary inspection or maintenance.
5. Turn the main power disconnect switch to the on position.
6. Raise the platform until there is adequate clearance to retract
the maintenance supports.
7. Store the maintenance supports into the storage brackets.
8. Fully lower the platform.
1
5
A
7
B
6
8
4
3
2
TM

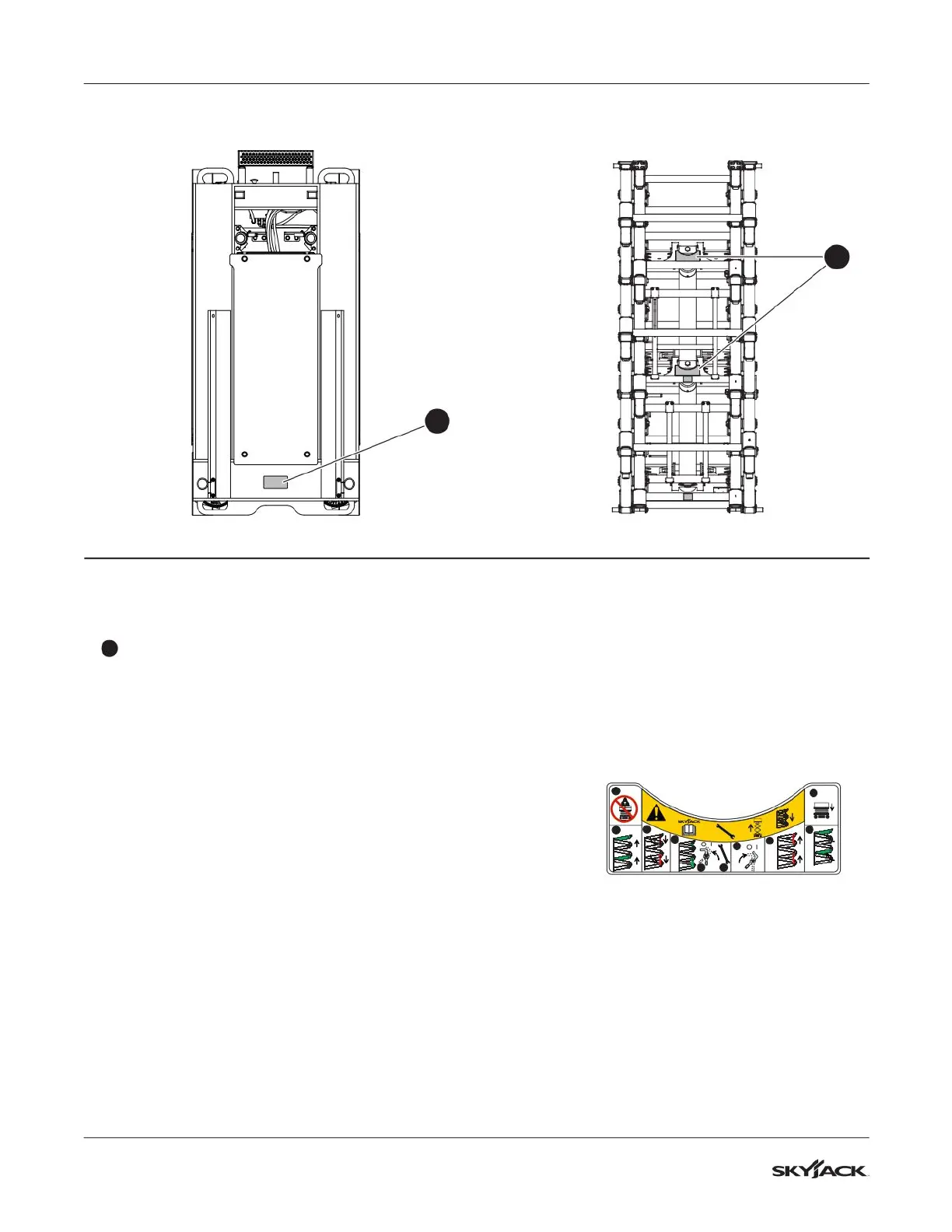

Scissor assembly - rear, continued
SJ3215, SJ3219, SJ3220, SJ3226, SJ4726, SJ4732 Location SJ4740 Location
6
6
