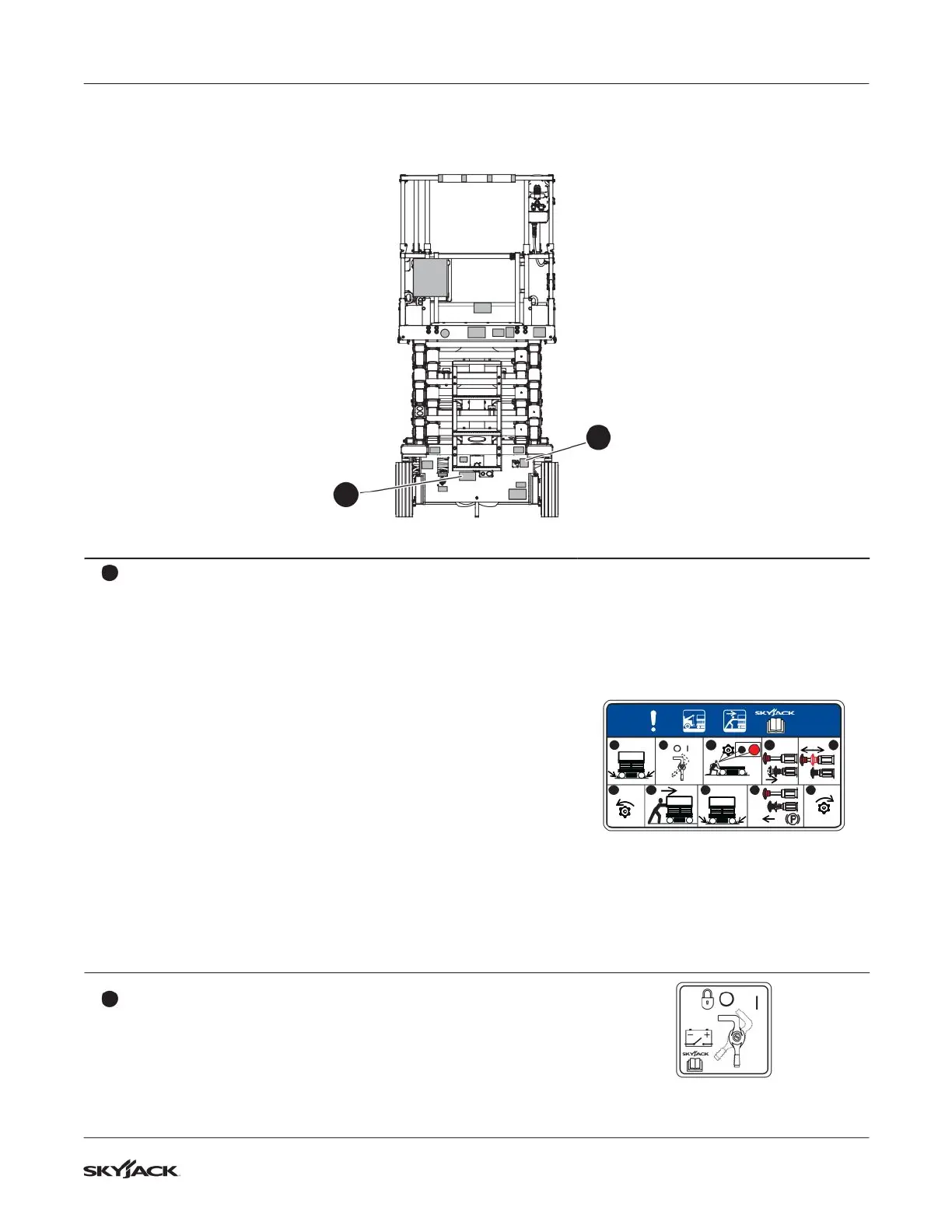

Labels Section 8 – Labels
Description Label Pictorial
10
Winch/tow/push procedure - disc brakes (SJ4740 only)
Refer to the operation manual.
1. Use wheel chocks or blocks at the front and rear of the
wheels to prevent MEWP movement.
2. Turn the main power disconnect switch to the off position.
3. Find the freewheeling valve and the drive manifold at the
rear of the base.
4. Push the plunger of the brake auto-reset valve.
5. Continuously push and release the knob of the hand pump
until firm resistance is felt. The brake is released
6. Turn the freewheeling valve counterclockwise to a fully open
position.
7. Push, winch, or tow the MEWP to the necessary location.
8. Use wheel chocks or blocks at the front and rear of the
wheels to prevent MEWP movement.
9. Pull the plunger of the brake auto-reset valve to re-engage
the brakes.
10. Turn the freewheeling valve knob clockwise to a fully close
position.
1
6
2
4
8 9
3
5
7
10
10-30
TM
11
Main power disconnect switch
Turn the switch clockwise to turn the power on. Turn the switch
counterclockwise to turn the power off. Use a padlock to lock
the switch in place.
