Manual storage box Section 3 – Familiarization

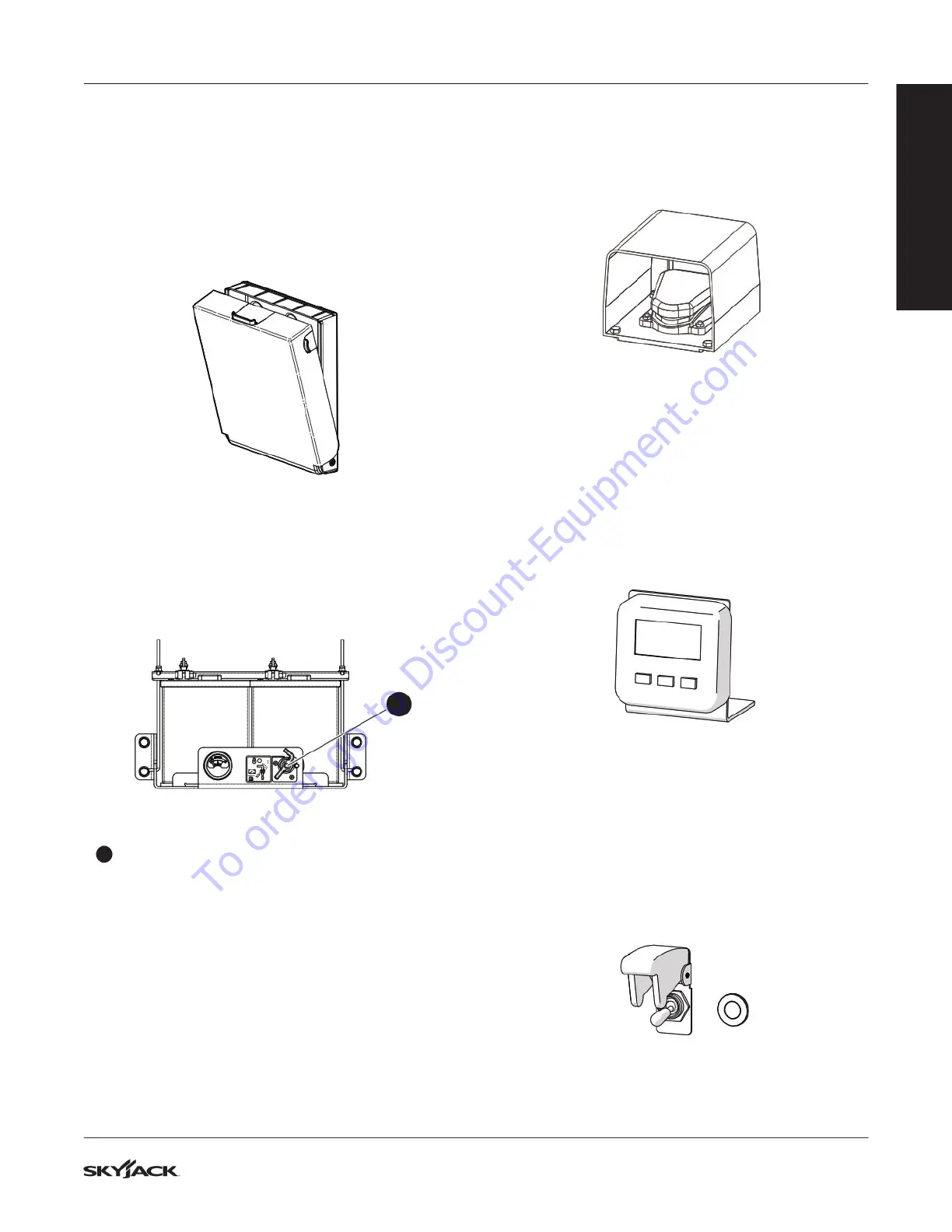

3.2 Manual storage box
The manual storage box is weather-resistant. It
contains the operation manual, ANSI Manual of
Responsibilities, and the ANSI/CSA certicate. You
must keep the operation manual for the make and
model of this MEWP in this box. Refer to Section 3.1
for the location of the manual storage box.
3.3 Control functions
3.3-1 Main power disconnect switch
Refer to Section 3.1 for the location of the main power
disconnect switch.
TM
1
1
Main power disconnect: This switch
disconnects power to all control circuits when it
is in the off position. The switch must be in the on
position to operate the MEWP. The switch must
be in the off position when you transport the
MEWP or put it in storage.
3.3-2 Footswitch
Refer to Section 3.1 for the location of the footswitch.
When pressed and held, it enables the controls on the
platform control console.
NOTE
The footswitch has a 7-second anti-tiedown
feature. This feature prevents the footswitch
operation when the operator presses it for
7 seconds without the activation of a function.
3.3-3 Engine display module
The engine display module is fastened to the top of
the base control console. It has a graphic LED screen
with three buttons below the screen.
3.3-4 Positive air shut-off (optional
equipment)
This switch stops the air supply to the engine. This is
useful if the engine does not immediately stop when
the power is off.
The switch is under a red switch guard. It is located
below the coolant overow tank on the engine.
