Section 7 – Technical Diagrams and Specifications Technical diagrams

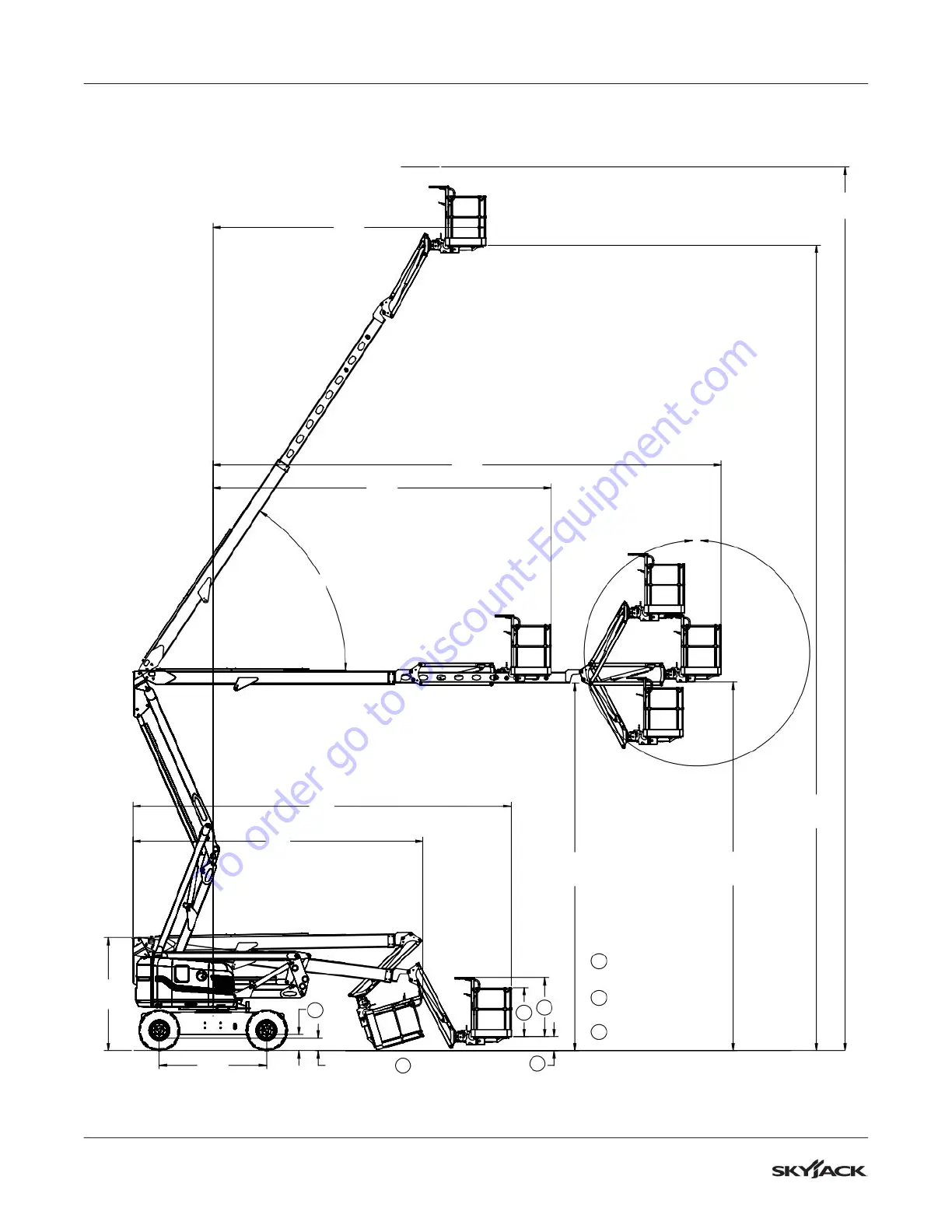

7.1-4 Dimensions - SJ60 AJ+
56°
A
6.2 m
(20 ft 4 in)
20.11 m
(66 ft)
11.56 m
(37 ft 11 in)
7.7 m
(25 ft 3 in)
18.29 m
(60 ft)
8.38 m
(27 ft 6 in)
8.31 m
(27 ft 2 in)
6.6 m
(21 ft 8 in)
8.31 m
(27 ft 2 in)
2.54 m
(8 ft 4 in)
2.44 m
(8 ft)
0.37 m
(14-1/2 in)
0.33 m
(13 in)
A
0.28 m
(11 in)
1.35 m
(4 ft 5 in)
B
1.12 m
(3 ft 8 in)
C
A
C
B
D
D
