Technical diagrams Section 7 – Technical Diagrams and Specifications

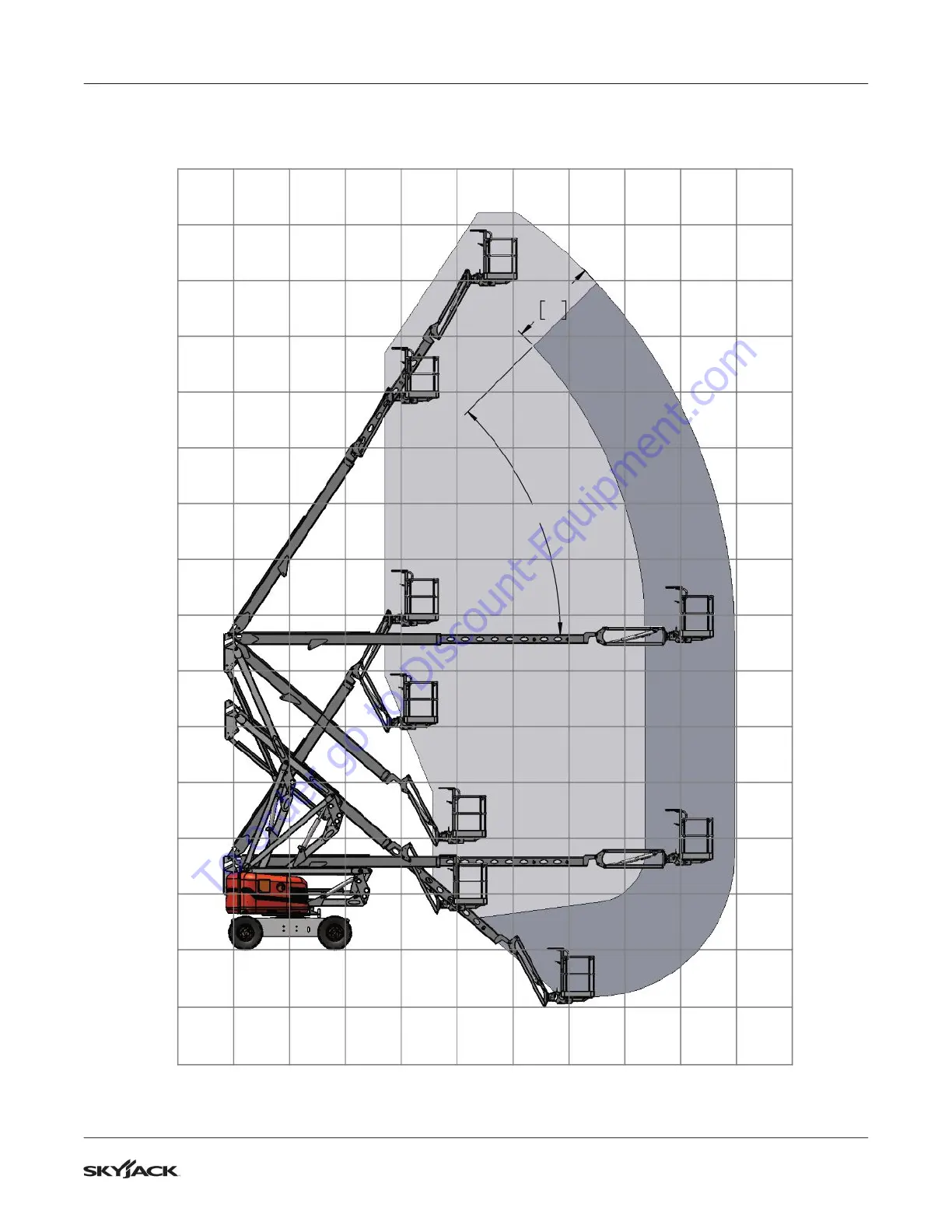

7.1-3 Reach diagram - SJ60 AJ+
-3.05
(-10)
-1.52
(-5)
0
1.52
(5)
3.05
(10)
4.57
(15)
6.10
(20)
7.62
(25)
9.14
(30)
10.67
(35)
12.19
(40)
13.72
(45)
15.24
(50)
16.76
(55)
18.29
(60)
19.81
(65)
21.34
(70)
13.72
(45)
12.19
(40)
10.67
(35)
9.14
(30)
7.62
(25)
6.10
(20)
4.57
(15)
3.05
(10)
1.52
(5)
0
-1.52
(-5)
-3.05
(-10)
45°
96.09in
8ft
