Section 3 – Familiarization Control functions
FAMILIARIZATION

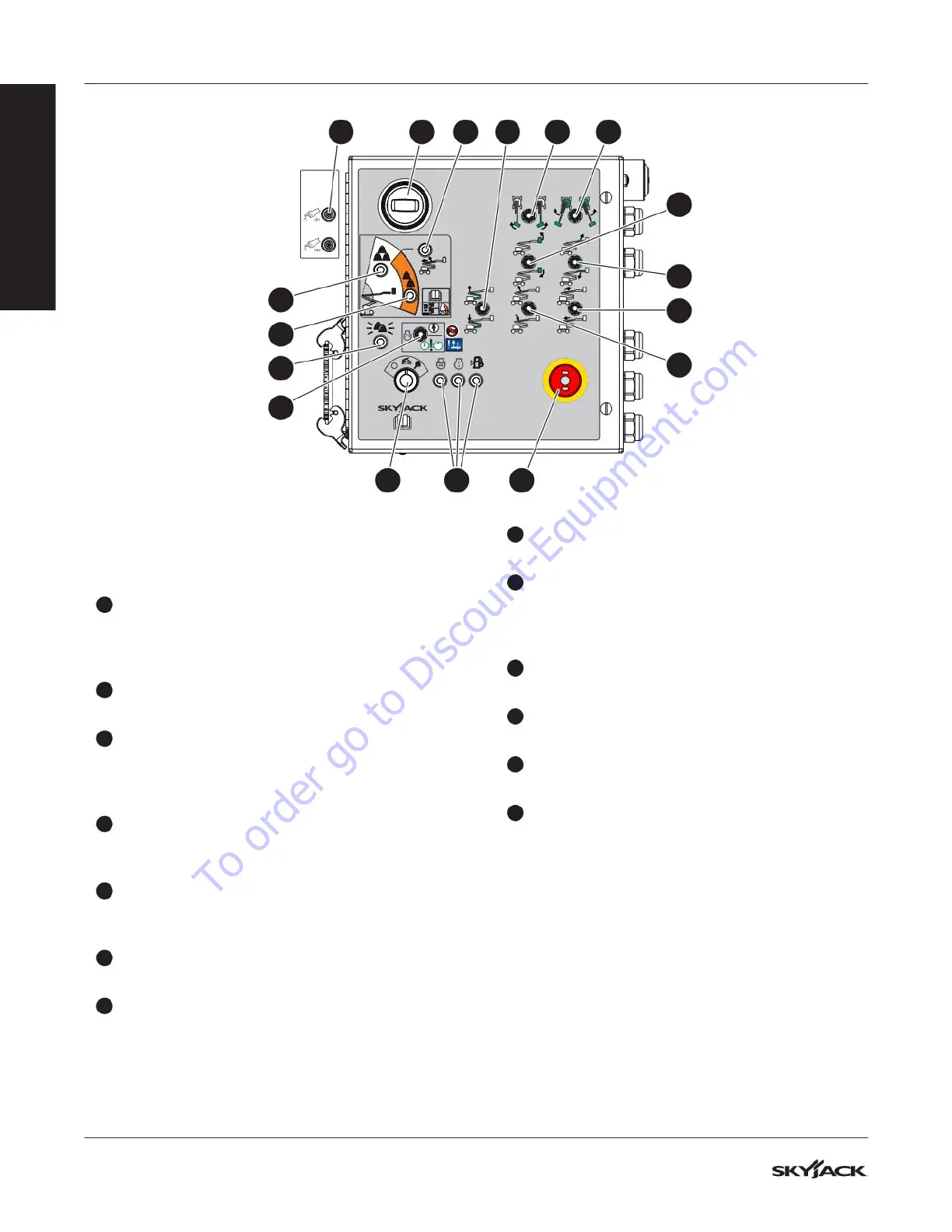

3.3-5 Base control console
Refer to Section 3.1 for the location of the base control
console.
1
Circuit breaker: If a power overload or positive
circuit grounding occurs, the circuit breaker
comes out. Push the circuit breaker back into
the initial position to reset the power.
2
Hourmeter: This display shows the hours of
operation.
7
3
Capacity zone border light (SJ60 AJ+ only):
This light shows the MEWP is at the limits of
travel for the high-capacity zone. The lower and
extend functions are not available.
7
4
High-capacity zone indicator (SJ60 AJ+ only):
This light shows the MEWP is in the high platform
capacity zone. Refer to Section 7.8.
7
5
Low-capacity zone indicator (SJ60 AJ+ only):
This light shows the MEWP is in the low platform
capacity zone. Refer to Section 7.8.
7
6
Riser raise/lower: This switch controls the raise
or lower function of the riser.
7
Platform rotation: This switch controls the left or
right rotation of the platform.
8
Turret rotation: This switch controls the left or
right rotation of the turret.
9
Platform-leveling override: This switch
overrides the automatic platform-leveling function
and controls the tilt up or tilt down function of the
platform.
7
10
Jib up/down: This switch controls the up or
down movement of the jib.
7
11
Boom extend/retract: This switch controls the
extension or retraction of the boom.
7
12
Main boom raise/lower: This switch controls the
raise or lower function of the main boom.
13
Emergency-stop: This button disconnects power
to the control circuit and stops the engine. Pull to
connect the power again.
12.5 m/s (28 mph)
TM
2 7 8
9
10
11
13
17
16
4
1415
5
31
12
6
