238264AAA SJ45 AJ+, SJ60 AJ+
28

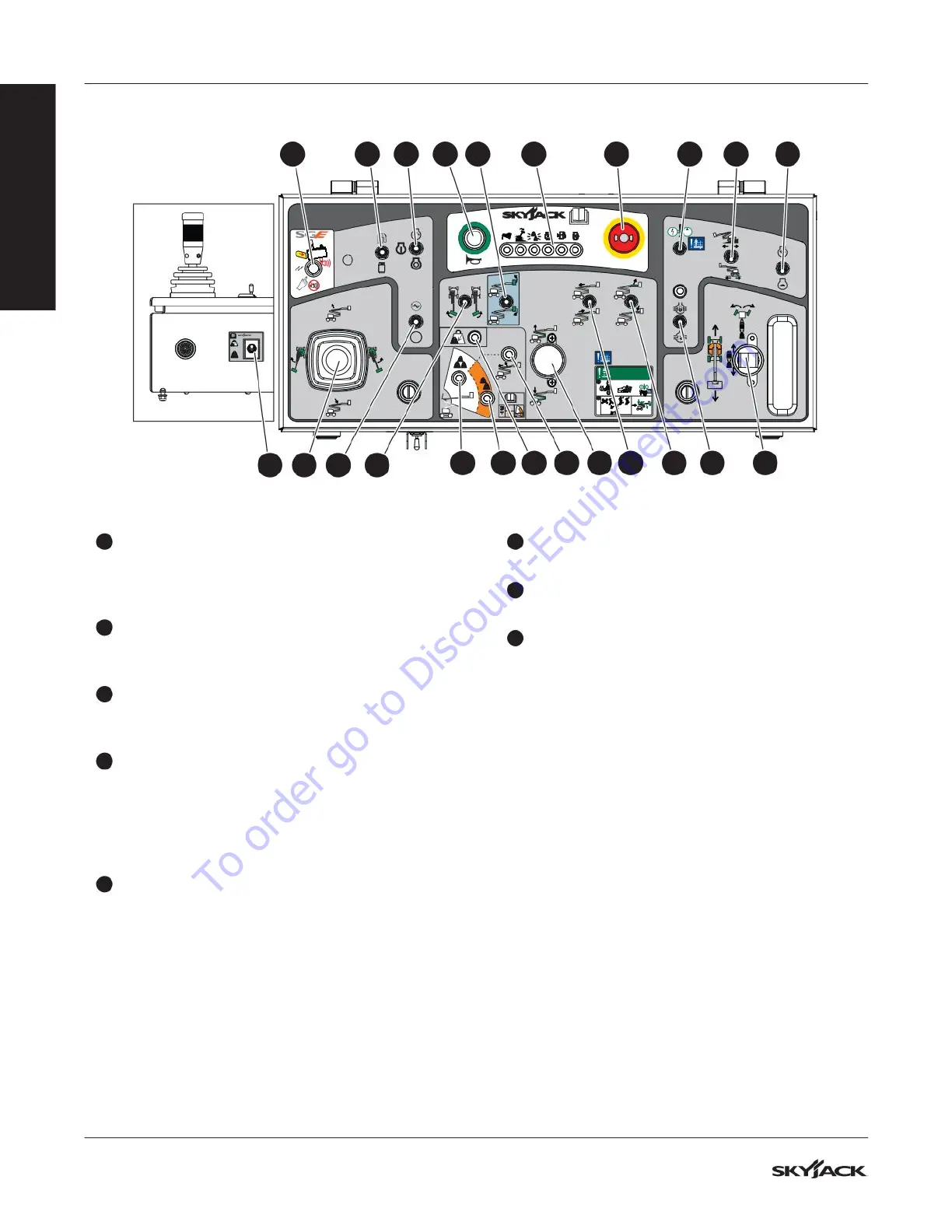

Section 3 – Familiarization Control functions
7
16
Capacity zone border light (SJ60 AJ+ only):
This light shows the MEWP is at the limits of
travel for the high-capacity zone. The lower and
extend functions are not available.
7
17
Low-capacity zone indicator (SJ60 AJ+ only):
This light shows the MEWP is in the low platform
capacity zone. Refer to Section 7.8.
7
18
High-capacity zone indicator (SJ60 AJ+ only):
This light shows the MEWP is in the high platform
capacity zone. Refer to Section 7.8.
7
19
Capacity derate light: This light illuminates
when the capacity derate switch is selected. It
indicates the reduction in platform capacity. Refer
to Section 5.25 and Section 5.26 for operation,
Section 7 for specications, and Section 8 for the
platform capacity label.
7
20
Capacity derate switch: This switch controls
the platform capacity. This switch also derates
the platform capacity to adapt to specied
attachments. Refer to Section 5.25 and Section
5.26 for operation, Section 7 for specications,
and Section 8 for the platform capacity label.
21
Platform rotation: This switch controls the left or
right rotation of the platform.
22
Generator (optional equipment): This switch
turns the generator on or off.
23
Boom/turret controller: This dual-axis lever
controls the raise or lower function of the main
boom, and the left or right rotation of the turret.
TM
TM
1
2
+
+
4 6 7 8 9 10
111213141517
212223
321 5
18 19 16
20
