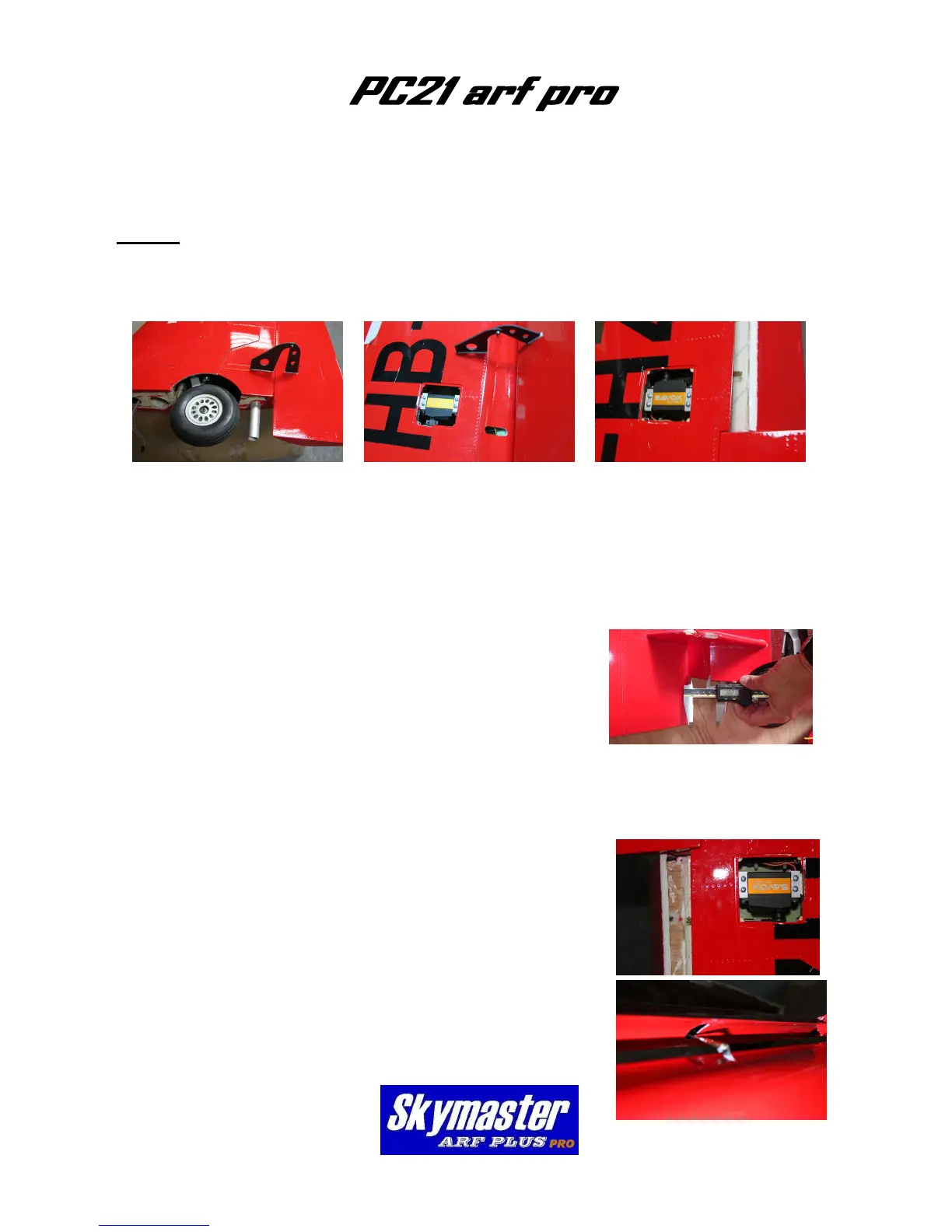

Assembly & Operation Manual
WINGS
NOTE: Make sure to have some sort of protective foam on the work bench. This will
protect the paint surface from unwanted dents. Assemble both wings simultaneously.
Mark √ each step.
Use masking tape to keep flap in position. Mask off area for carbon hinges.
Assemble 2 pr carbon hinges and mark slots for carbon hinges onto wing.
Dremel slots for hinges and glue hinges to both flap and wing.
Make sure hinge points are all aligned and high of each hinge same.
When dry—trail fit the hinge fairings. Glue in place.
Secure flap servo with aluminum brackets.
Mark slots for flap pushrod. Dremel slots to clear push-
rods.
Glue flap horn to flap—note—make sure horn is se-
cure into balsa in flap.
Install pushrod and check operation of flap. Set flap travel as shown. 38mm
Secure aileron servo with 2 aluminum brackets.
Cut slots for pushrods.( Note—Internal pushrods are
shown. You may use external pushrods.)
Glue aileron horn to aileron. Make sure horn is glued
into balsa block into aileron.
Fit pushrod and secure cover.
Repeat for other wing.
P-11
Photo 13
Photo 12
Photo 10
Photo 14
Photo 9 Photo 11
