AIR SYSTEM You will need 2 x 2way and 1x 1way + sequencer.
All work done at factory.
Glue the air tanks (3) with silicon
Use quick connectors on fuselage joints to help
with break up of model if glued in tail.
Fit the 3 filler valves and 3 pressure gauges
onto plywood tray.
Plumb the landing gear, door and brake system
by using color air tubing. T all same color
tubing together until a single pipe emerge.
Fit electronic valves + sequencers on tray.
The air system will consist of :
Air up, Air down retracts (2)
Air up, Air down door (2)
Air out brakes (1)
Air filler input (3)
Total of 8 pipes
Air leaks can damage your model! Please do a thorough check for air leaks. Make
sure the system can hold pressure for at least an hour in the up and down position.
Do not rush this installation.
P-16
Assembly & Operation Manual

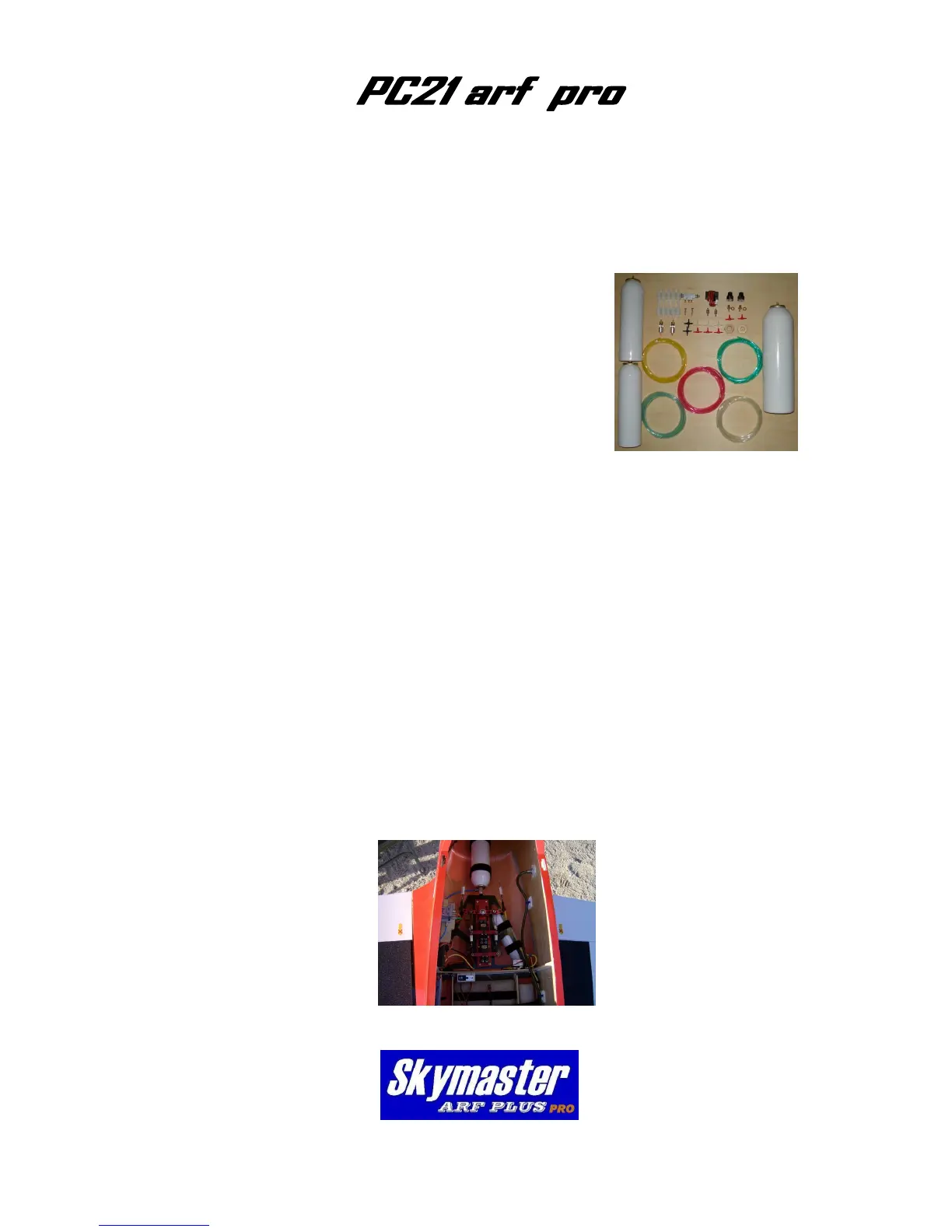

Photo 22
Photo 23
