Assembly & Operation Manual
FUEL CELLS
NOTE: Bad plumbing lead to flame outs. This will destroy your model. Please take your
time and do a good job.
Make up fuel line fittings. Make sure clunk moves freely and reaches all corners of
inside of tanks.
Fit to main tank. Mark pipes for “inlet” and “outlet”.
Plumb tank using diagram on next page.
Fill tank and check for leaks. Secure tank with ply bracket and 2 bolts.
Drain tank with turbine fuel pump and check no air bubbles in system until last drop
is drained. A good plumbing will secure good turbine operation.

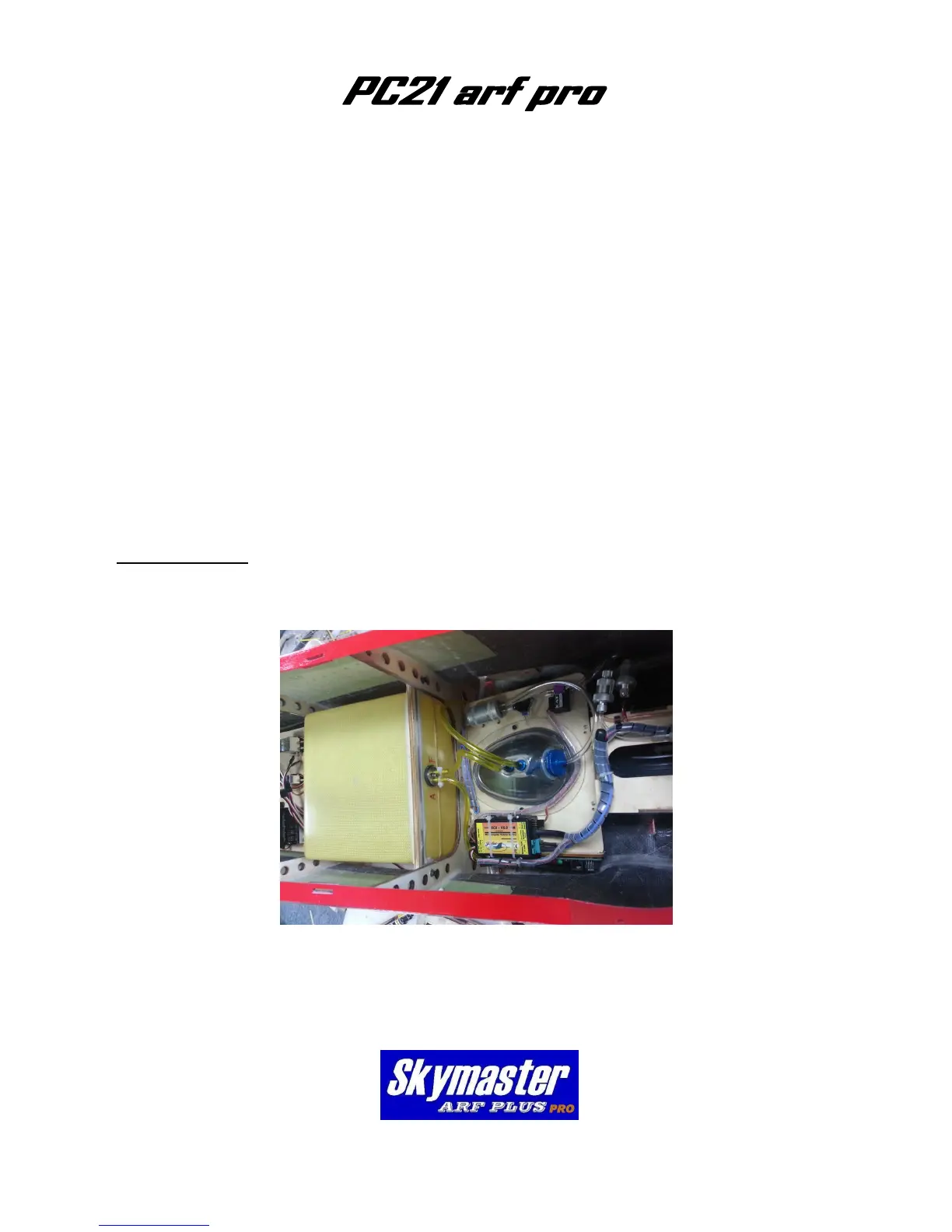

SMOKE TANK:
Note : Optional smoke tank can be installed in front of turbine!
P-14
Photo 20
