FUSELAGE
Before joining the fuselage it is necessary to tidy up the servo wires. Make sure
wires are secure .
Tidy up the air line. Use quick disconnects between wing and fuselage.
Check operation of landing gear and doors.
Install JR DS8511 steering servo. Bolt with 4 x M3 bolts and lock nuts.
Centre servo and connect to actuator.
Secure rear fusealge with 6 screws.
P-13
Assembly & Operation Manual

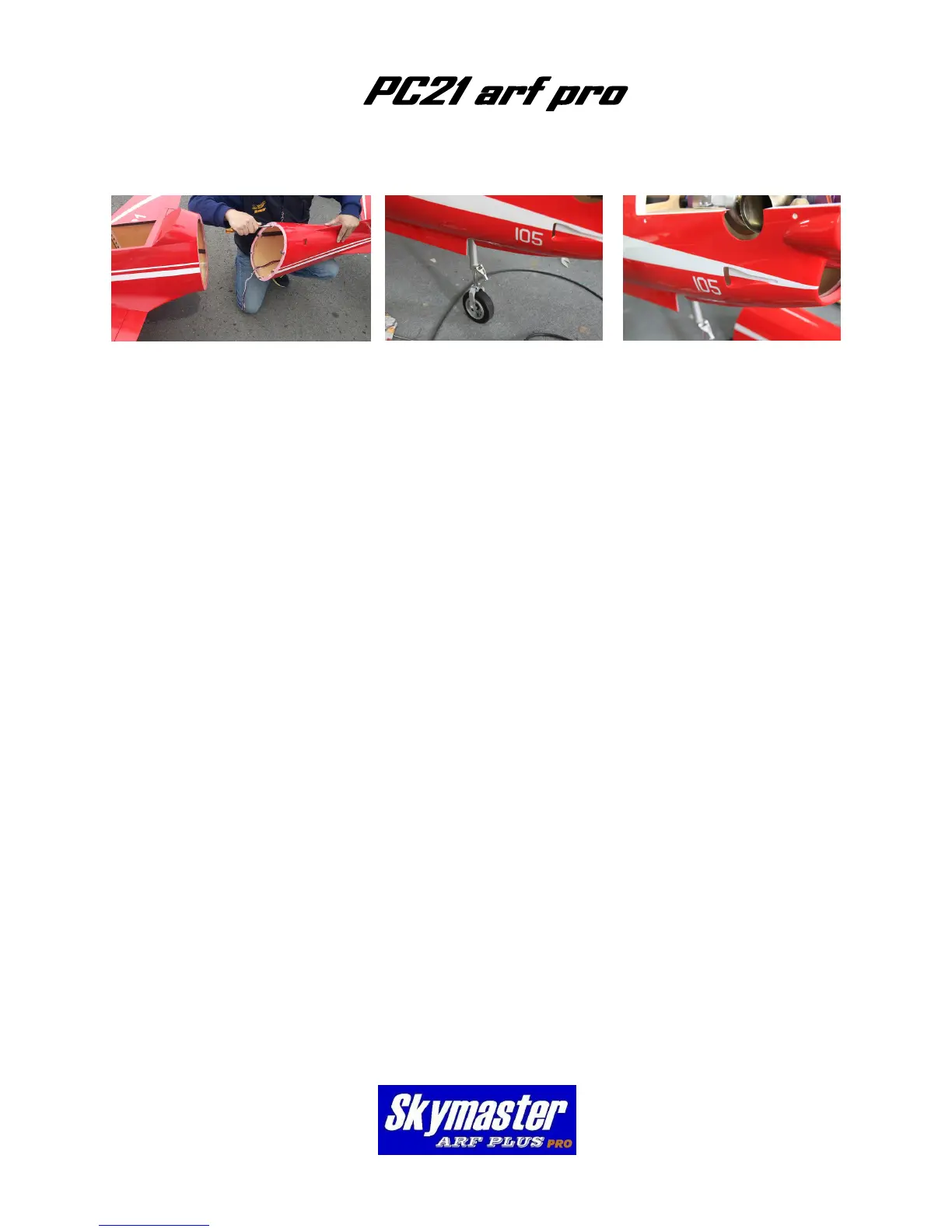

Photo 17 Photo 18 Photo 19
