Hydraulic Section
8-53
6036, 6042, 8042, 10042, 10054 31211015
8.9.2 Cylinder Pressure Checking
Attach a digital or 4000 psi (276 bar) gauge to test port on
hydraulic pump to check system pressure. For more
information, refer Section 8.5.1, “Pressure Checks and
Adjustments”.
Note: If a hydraulic cylinder pressure is greater than main
control valve pressure, increase main control valve pressure by
adjusting the main relief. Generally, one half turn clockwise will
be adequate to check an individual circuit. Activate circuit and
if pressure is obtained turn main relief counter clockwise one
half turn. Re-check main relief setting and adjust if necessary.
8.9.3 Steering Cylinders
The steer cylinder is attached to each axle center housing.
The steer cylinder assembly can be found in Section 5.3,
“Axle Assemblies”. The steer cylinder is covered in the
appropriate manufacturer’s axle literature.

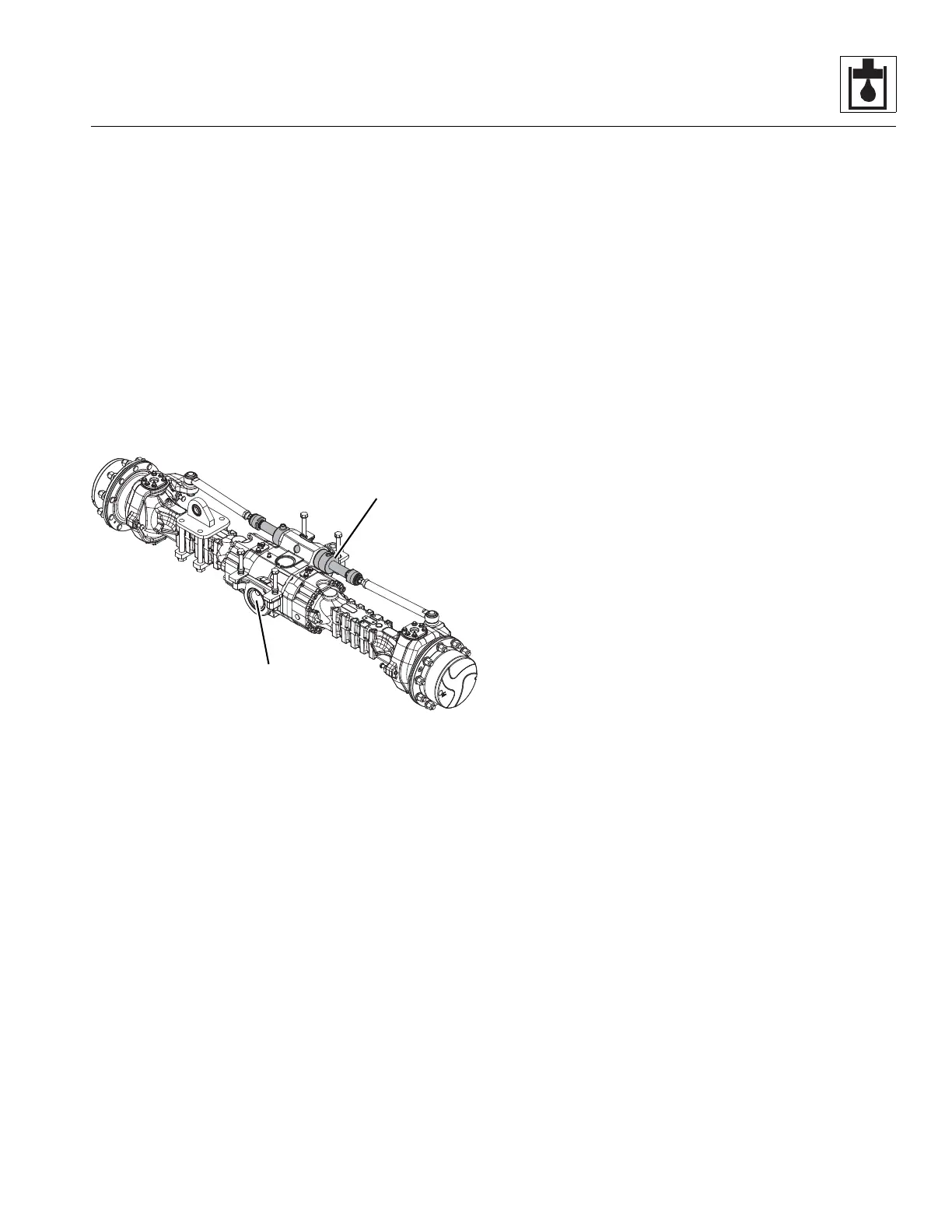

AXLE CENTER SECTION
STEERING CYLINDER
