Skytrak 6036 - Metric Pipe Parallel O-Ring Boss (MPP)

General Information and Specifications
2-65
6036, 6042, 8042, 10042, 10054 31211015

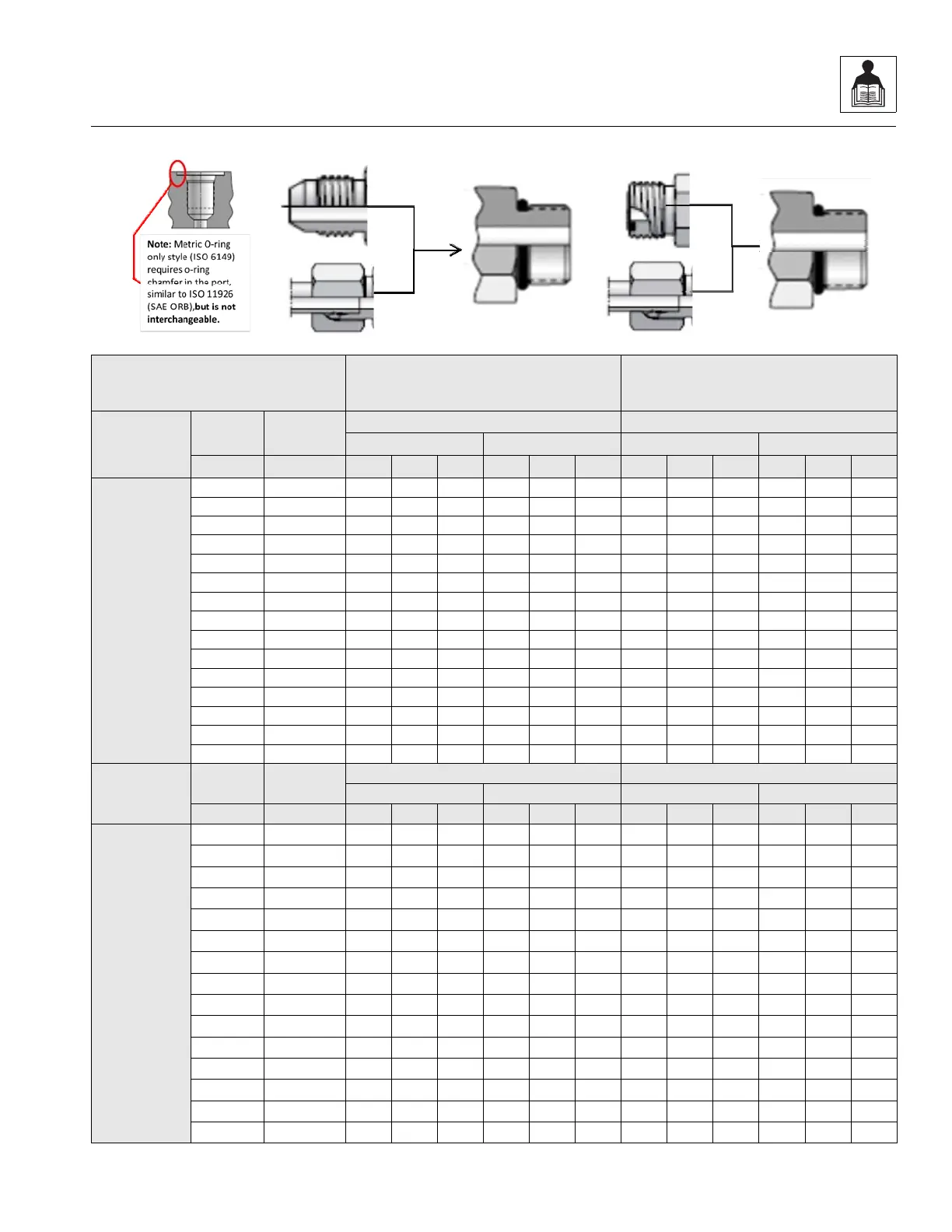

a. Metric Pipe Parallel O-Ring Boss (MPP)
TYPE/FITTING
IDENTIFICATION
STUD ENDS WITH 37° (JIC) OR L SERIES
DIN (MBTL) OPPOSITE END
STUD ENDS WITH (ORFS) OR S SERIES
DIN (MBTS) OPPOSITE END
Material
Thread
M Size
Connecting
Tube O.D.
Torqu e Torque
[Ft-Lb] [Nm] [Ft-Lb] [Nm]
(metric) (mm) Min Nom Max Min Nom Max Min Nom Max Min Nom Max
STEEL FITTINGS
WITH STEEL
MATING
COMPONENTS;
UN-LUBRICATED
THREADS
M8 x 1 4 677899899101212
M10 x 1 6 11 12 12 15 16 16 15 16 17 20 22 23
M12 x 1.5 8 18 19 20 25 26 27 26 28 29 35 38 39
M14 x 1.5 10 262829353839333536454749
M16 x 1.5 12 303233404345414345555861
M18 x 1.5 15 333536454749525557707577
M20 x 1.5 -- ------------596265808488
M22 x 1.5 18 444648606265747881100106110
M27 x 2 22 74 78 81 100 106 110 125 132 138 170 179 187
M30 x 2 -- 95 100 105 130 136 142 175 184 193 237 249 262
M33 x 2 25 120 126 132 160 171 179 230 242 253 310 328 343
M38 x 2 -- 135 142 149 183 193 202 235 247 259 319 335 351
M42 x 2 30 155 163 171 210 221 232 245 258 270 330 350 366
M48 x 2 38 190 200 209 260 271 283 310 326 341 420 442 462
M60 x 2 50 230 242 253 315 328 343 370 389 407 500 527 552
Material
Thread
M Size
Connecting
Tube O.D.
Torqu e Torque
[Ft-Lb] [Nm] [Ft-Lb] [Nm]
(metric) (mm) Min Nom Max Min Nom Max Min Nom Max Min Nom Max
ALUMINUM/
BRASS FITTINGS
OR ALUMINUM/
BRASS
MATING
COMPONENTS;
UN-LUBRICATED
THREADS
M8 x 1 4 455577566788
M10 x 1 6 78891111101111141515
M12 x 1.5 8 12 13 13 16 18 18 17 18 19 23 24 26
M14 x 1.5 10 171819232426212223283031
M16 x 1.5 12 202121272828272829373839
M18 x 1.5 15 212223283031343637464950
M20 x 1.5 -- ------------304042415457
M22 x 1.5 18 293031394142485153656972
M27 x 2 22 485153656972818690110117122
M30 x 2 -- 62 65 68 84 88 92 114 120 125 155 163 169
M33 x 2 25 78 82 86 106 111 117 150 157 164 203 213 222
M38 x 2 -- 88 93 97 119 126 132 153 161 168 207 218 228
M42 x 2 30 101 106 111 137 144 150 159 168 176 216 228 239
M48 x 2 38 124 130 136 168 176 184 202 212 222 274 287 301
M60 x 2 50 150 157 164 203 213 222 241 253 265 327 343 359
MAE9360
MA
E9370
MA
E9380
