General Information and Specifications
2-72
31211015 6036, 6042, 8042, 10042, 10054

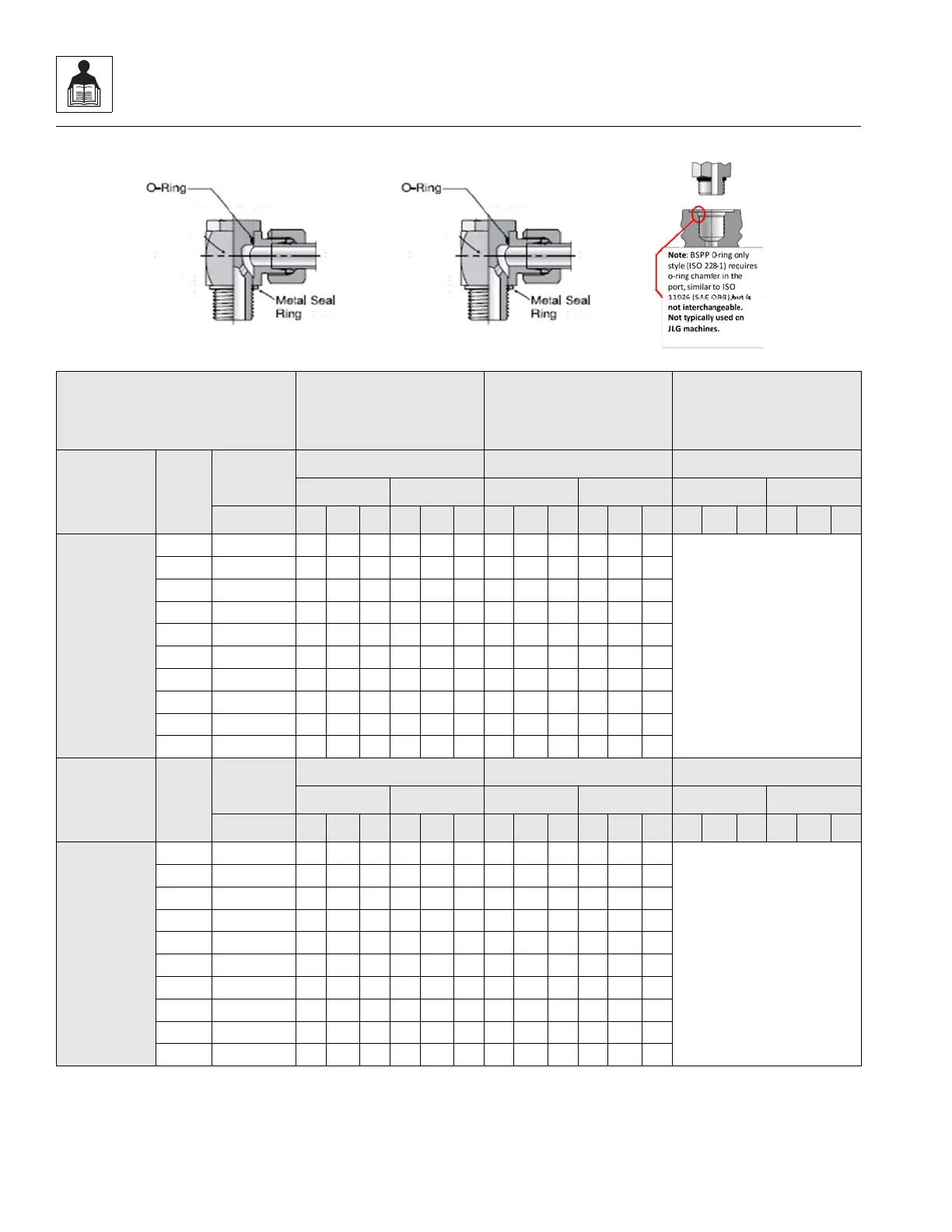

f. British Standard Parallel Pipe Port (BSPP) L Series - Table 3 of 3
TYPE/FITTING
IDENTIFICATION
BANJO FITTINGS
WITH S SERIES DIN (MBTS)
OPPOSITE END
HIGH PRESSURE BANJO
FITTINGS WITH S SERIES
DIN (MBTS) OPPOSITE END
JIS/BSPP O-RING
ONLY
Material
BSPP
Thread
G Size
Connecting
Tube O.D.
Torqu e To rq ue Torque
[Ft-Lb] [Nm] [Ft-Lb] [Nm] [Ft-Lb] [Nm]
(mm) Min Nom Max Min Nom Max Min Nom Max Min Nom Max Min Nom Max Min Nom Max
STEEL FITTINGS
WITH STEEL
MATING
COMPONENTS;
UN-LUBRICATED
THREADS
G 1/4A 6 303233404345333536454749
Fitting type not typically
specified on Caterpillar
applications.
Refer to the specific
procedure
in this Service Manual.
G 1/4A 8 303233404345333536454749
G 3/8A 10 48 51 53 65 69 72 52 55 57 70 75 77
G 3/8A 12 48 51 53 65 69 72 52 55 57 70 75 77
G 1/2A 14 66 70 73 90 95 99 89 94 98 120 127 133
G 1/2A 16 66 70 73 90 95 99 89 94 98 120 127 133
G 3/4A 20 92 97 101 125 132 137 170 179 187 230 243 254
G 1A 25 -- -- -- -- -- -- 236 248 260 320 336 353
G 1-1/4A 30 -- -- -- -- -- -- 398 418 438 540 567 594
G 1-1/2A 38 -- -- -- -- -- -- 516 542 568 700 735 770
Material
BSPP
Thread
G Size
Connecting
Tube O.D.
Torqu e To rq ue Torque
[Ft-Lb] [Nm] [Ft-Lb] [Nm] [Ft-Lb] [Nm]
(mm) Min Nom Max Min Nom Max Min Nom Max Min Nom Max Min Nom Max Min Nom Max
ALUMINUM/
BRASS FITTINGS
OR ALUMINUM/
BRASS
MATING
COMPONENTS;
UN-LUBRICATED
THREADS
G 1/4A 6 202121272828222223303031
Fitting type not typically
specified on Caterpillar
applications.
Refer to the
specific procedure in
this Service Manual.
G 1/4A 8 202121272828222223303031
G 3/8A 10 31 33 34 42 45 46 34 36 37 46 49 50
G 3/8A 12 31 33 34 42 45 46 34 36 37 46 49 50
G 1/2A 14 43 45 47 58 61 64 58 61 64 79 83 87
G 1/2A 16 43 45 47 58 61 64 58 61 64 79 83 87
G 3/4A 20 60 63 66 81 85 89 111 117 122 150 159 165
G 1A 25 -- -- -- -- -- -- 153 161 169 207 218 229
G 1-1/4A 30 -- -- -- -- -- -- 259 272 285 351 369 386
G 1-1/2A 38 -- -- -- -- -- -- 335 352 368 454 477 499
MAE9290
MAE9300
MA
E9470
