SY8086
High Efficiency 1.4MHz, 1A
Synchronous Step Down Regulator
Preliminary Specification
SY8086 Rev. 0.11 Silergy Corp. Confidential- Prepared for Customer Use Only 1
General Description
The SY8086 is a high-efficiency 1.4MHz synchronous
step-down DC-DC regulator ICs capable of delivering
up to 1A output current. The SY8086 operates over a
wide input voltage range from 2.5V to 5.5V and
integrate main switch and synchronous switch with
very low R
DS(ON)
to minimize the conduction loss.
Low output voltage ripple and small external inductor
and capacitor sizes are achieved with 1.4MHz
switching frequency. This along with small SOT-23
footprint provides small PCB area application.
Ordering Information
Temperature Code
Optional Spec Code
SY8086
ƶ
ƶƶ
ƶ
(
ƶƶ
ƶƶƶƶ
ƶƶ
)
ƶ
ƶƶ
ƶ
Temperature Range: -40
e
C to 85
e
C
Features
•
Low R
DS(ON)
for internal switches (top/bottom):
250m
Ω
/200m
Ω
•
2.5-5.5V input voltage range
•
1.4MHz switching frequency minimizes the
external components
•
Internal softstart limits the inrush current
•
RoHS Compliant and Halogen Free
•
Compact package: SOT23 5 pin
Applications
•
Portable Navigation Device
•
Smart phone
•
USB Dongle
•
Set Top Box
•
Media Player
Typical Applications
LX
IN
GND
FB
EN
V
IN
C
IN
L
R
1
R
2
V
OUT
C
OUT
C
1
(opt.)

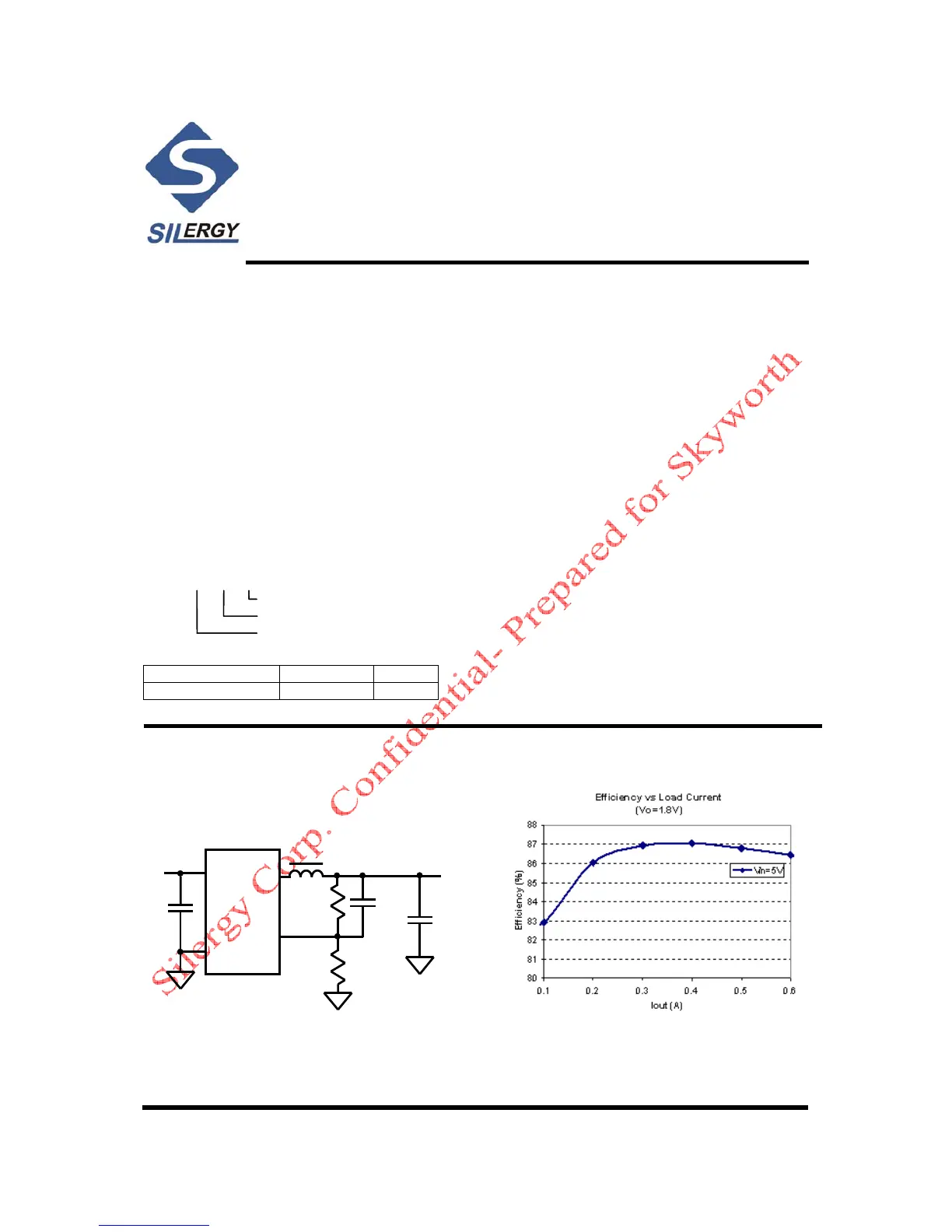

Figure 1. Schematic Diagram Figure2 Efficiency vs Load Current
Ordering Number Package type Note
SY8086AAC SOT23-5 1A
