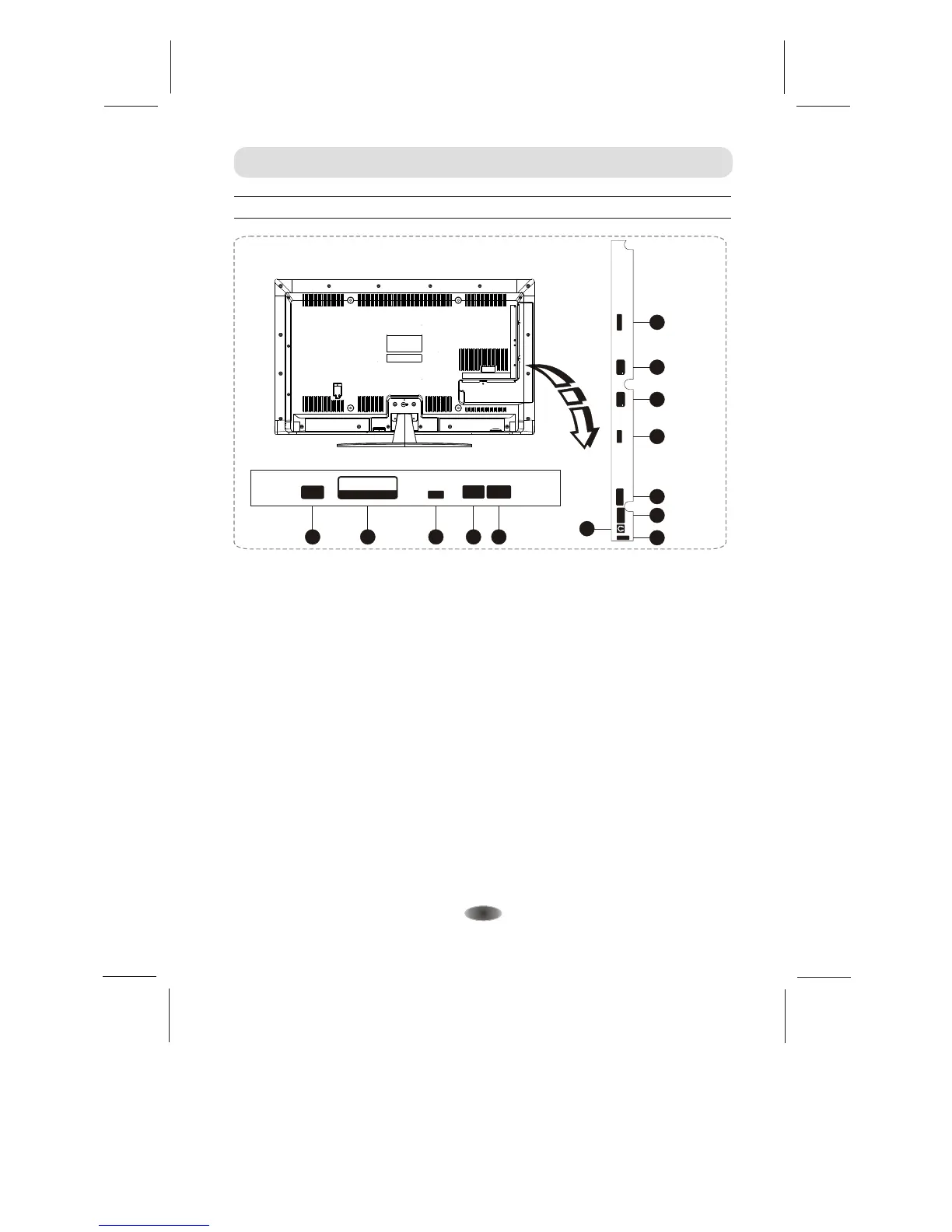

EXTERNAL SCHEMATIC AND INSTALLATION
Back Panel
Note: The graphics are for representation only.
-9-
1
2
3
4 5
PC IN
PC
AUDIO IN
HDMI2 HDMI1
HDMI IN
USB1
USB3
service only
12
10
9
7
8
6
SD CARD
USB1
USB1
5V 500mA
USB1
USB2
5V 500mA
LAN IN
AV/AUDIO
IN
S/PDIF
7
11
1. USB3:
2. HDMI1\HDMI2: Connect HDMI input signal from signal source such as DVD.
3. PC IN: Connect a PC via a VGA cable.
4. PC AUDIO IN: Audio input for PC and Audio input for HDMI when the signal is DVI timing.
5. RF IN: Connect a coaxial cable to receive signal from the antenna or cable.
6. SD CARD:
. USB1\USB2: USB port.
android
8. LAN IN:
9. YPbPr IN: Connect YPbPr signal from signal source such as DVD.
Share the same AUDIO input with AV IN.
10. AV/AUDIO IN: Connect AUDIO and VIDEO input signal from signal source such as DVD.
11. EARPHONE: Audio output, speakers will be muted when earphone plugged.
12. S/PDIF: Use a digital optical cable to connect your TV to a compatible audio receiver.
only for service to update software.
This a SD card sink for SD card or stick memory to insert.
7 When you insert your USB storage device, you will see it in the File
manager application in system, or directly turn on the Video/musie player
application to play the video/music in your USB storage.
Connect to the network through a LAN cable.
RF IN
YPbPr IN
