22
5693
21 2023
-
SE60/185 s2
MG_0567
++
12V
BATTERY
++
12V
BATTERY
Refer to the User and Installation
Manual of the control panel for
detailed installation instructions.

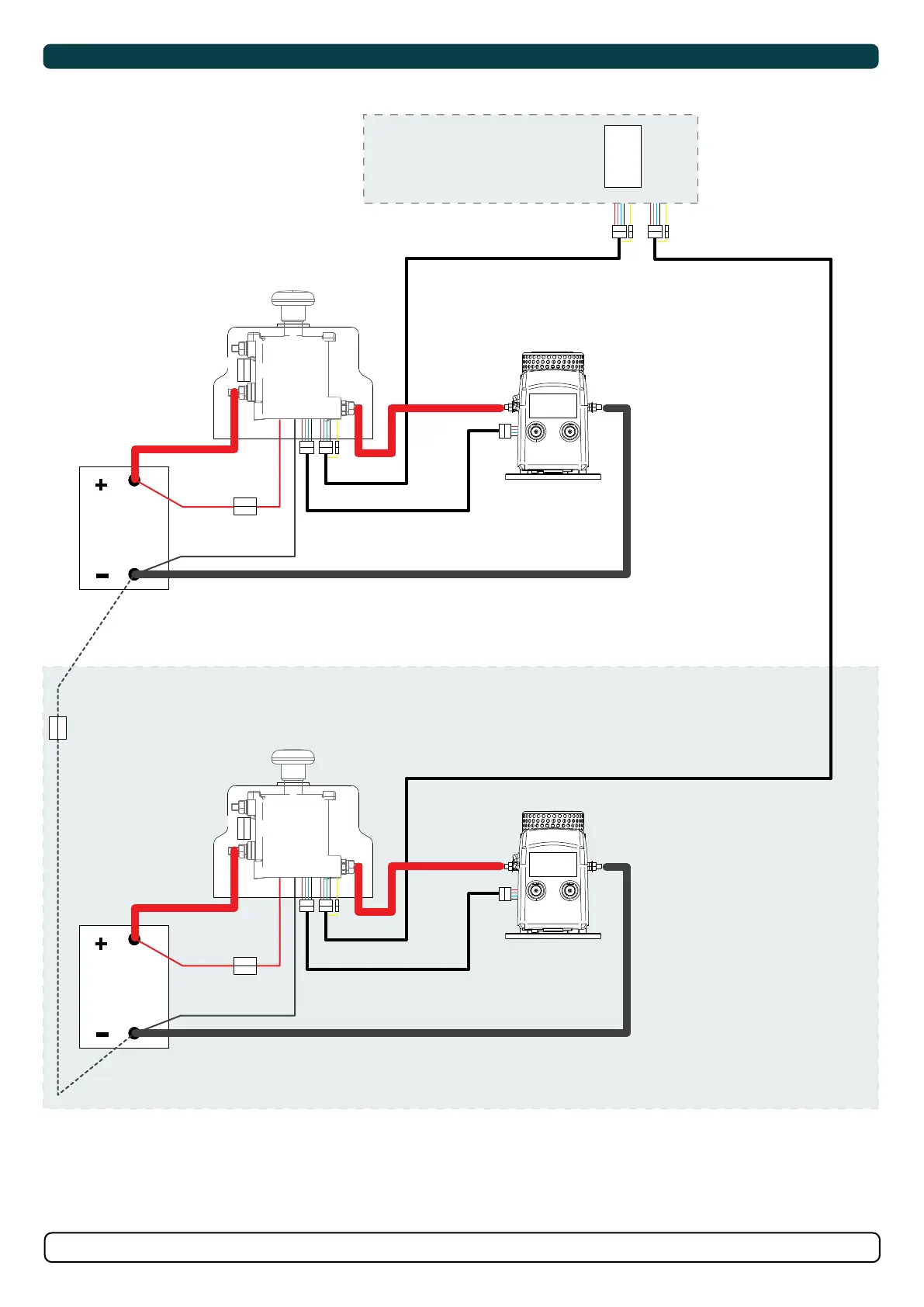

Automatic Main Switch Wiring Diagram 12V Thruster
Fuse 5A
Thruster
4-wire cable
5-wire cable
4-wire cable
Fuse 5A
Thruster
Fuse 10A
Control
panel
Automatic Main Switch
5-wire cable
Automatic Main Switch
ANL Fuse
ANL Fuse
The Top wiring diagram is for a single bow or stern thruster system
The top and bottom wiring diagram is for a dual thruster system, for example a bow and stern installation.
MG_0591
Manual Main Switch Wiring Diagram 24V Thruster
++
12V
BATTERY
++
12V
BATTERY
Thruster
4-wire cable
4-wire cable
Thruster
Fuse
10A
Control
panel
++
12V
BATTERY
++
12V
BATTERY
The Top wiring diagram is for a single bow or stern thruster system
The top and bottom wiring diagram is for a dual thruster system, for example a bow and stern installation.
Refer to the User and Installation
Manual of the control panel for
detailed installation instructions.
ANL Fuse
ANL Fuse
Manual Main
Switch
Manual Main
Switch
