Sleipner SE60 - Manual Main Switch Wiring Diagram (24 V)

23
5693
21 2023
-
SE60/185 s2
MG_0591

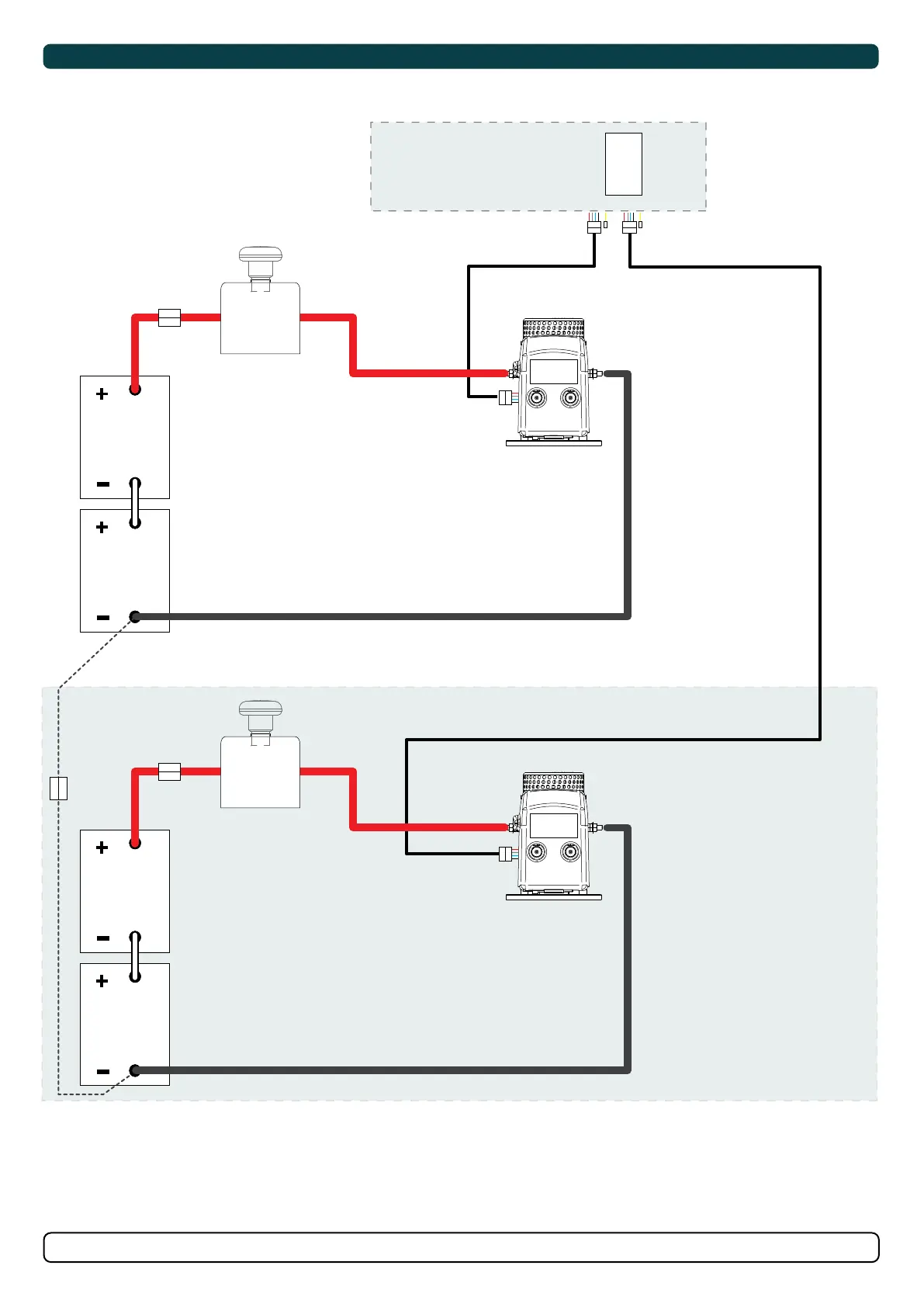

Manual Main Switch Wiring Diagram 24V Thruster
++
12V
BATTERY
++
12V
BATTERY
Thruster
4-wire cable
4-wire cable
Thruster
Fuse
10A
Control
panel
++
12V
BATTERY
++
12V
BATTERY
The Top wiring diagram is for a single bow or stern thruster system
The top and bottom wiring diagram is for a dual thruster system, for example a bow and stern installation.
Refer to the User and Installation
Manual of the control panel for
detailed installation instructions.
ANL Fuse
ANL Fuse
Manual Main
Switch
Manual Main
Switch
