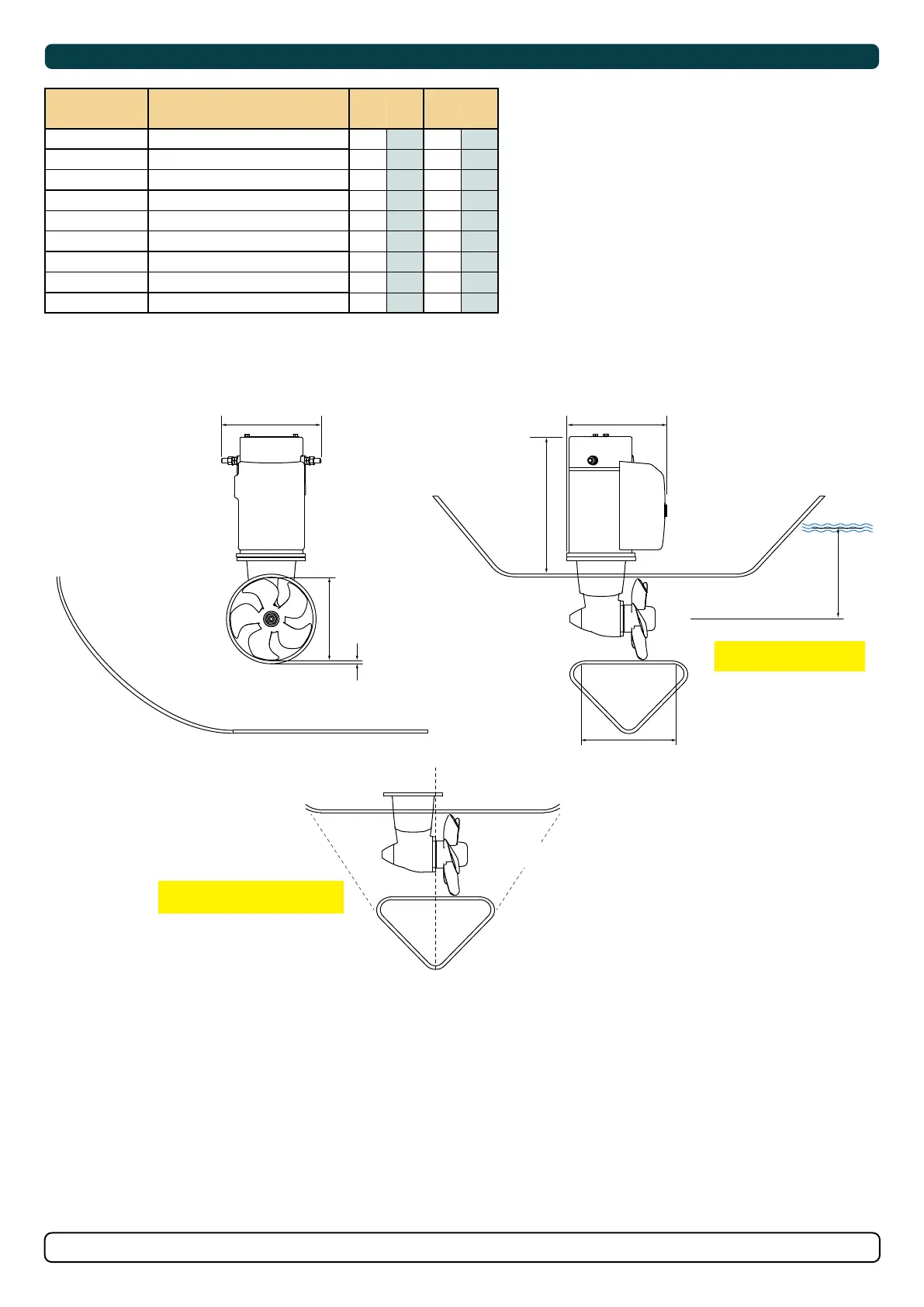

Product Measurements
Measurement
code
Measurement description
mm inch mm inch
ID Internal tunnel diameter 185 7.3 185 7.3
H Motor Height 272 10.7 250 8.1
W Width 199 7.8 201 7.9
L Length 208 8,19 205 8.1
WD Water Depth 185 7.3 185 7,28
TL Minimum tunnel length 128 5 128 5,04
TL (recommended) Recommended tunnel length 165 6.5 165 6,50
T (min) Minimum tunnel wall thickness 4 0.16 4 0.16
T (max) Maximum tunnel wall thickness 6 0.24 6 0.24
SE60 s2
12v
SE60 s2
24v
*Valid for SE & SEP
MG_0079
TL
WD
H
WL
ID
T
Tunnel centre line
Propeller position will vary
with each thruster model
The gear leg/ propeller(s) must
never extend out of the tunnel
Single Propeller
