Slinex SONIK 7 Cloud - 4 Installation; Cable Requirements; Schematic Diagrams

Door 1
Door 2
Camera 1
Camera 2 Output
Ext. power
Network
4.2. Schematic diagrams

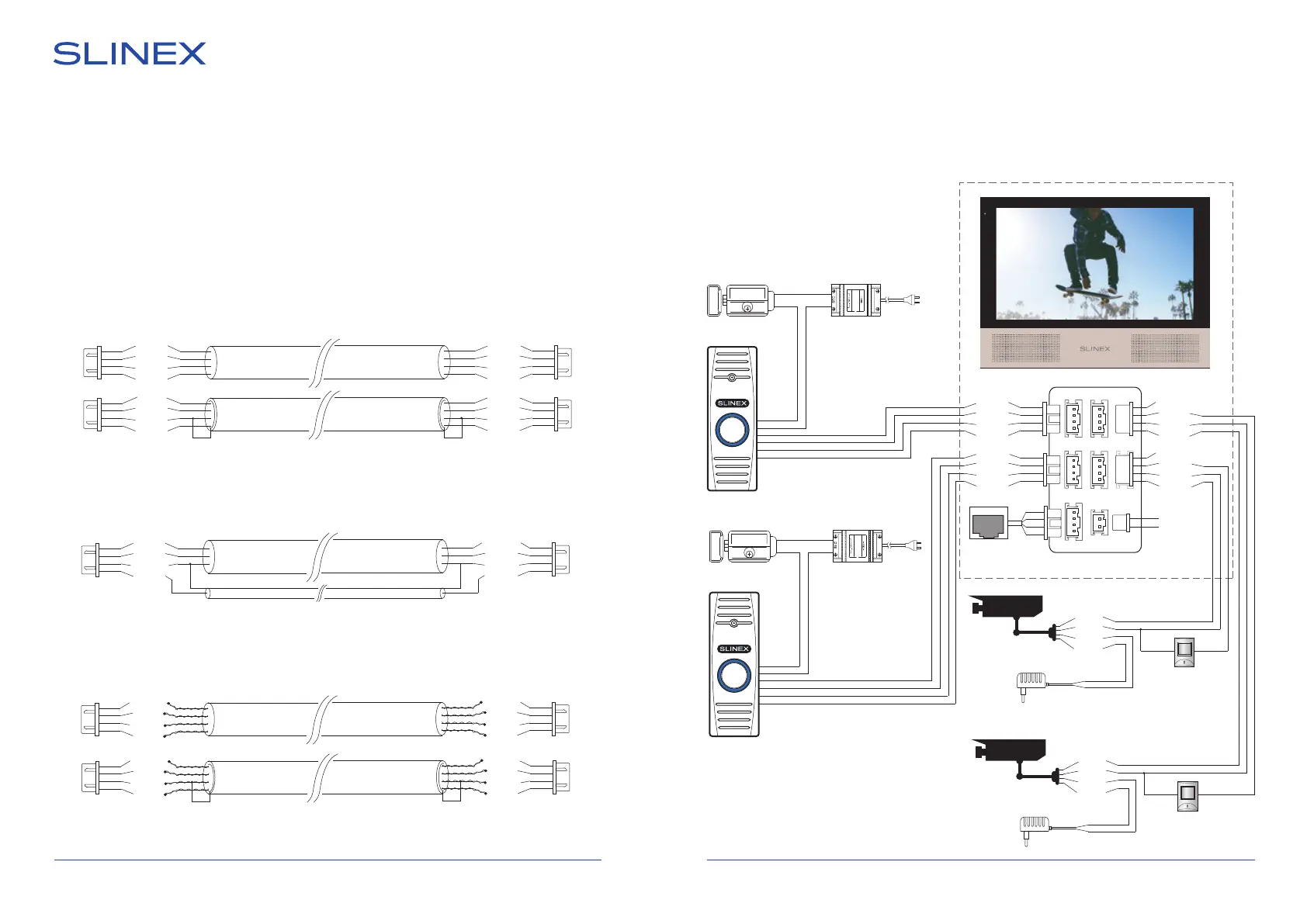

Diagram 1. Sonik 7 Cloud outdoor panels, cameras and locks connection.
SONIK 7 Cloud
5 6
Sonik 7 Сloud
GND
+13,5 V
*
4. Installation
4.1. Cable requirements
Disconnect all power cables before device installation.
able type that is used for device connection depends on the distance between the last indoor monitor in
the system and outdoor panel:
) Use 4-wire cable with such parameters:
• distance up to 25 meters (82 ft.) use a cable with 0,22 mm square of one wire (AWG 24);
• distance 25 to 50 (82-164 ft.) meters use a cable with 0,41 mm square of one wire (AWG 21);
• distance 50 to 100 meters (164-328 ft.) use a cable with 0,75 mm square of one wire (AWG 18).
b) If the distance between door monitor and door panel is between 80 and 100 meters (262-328 ft.) then
use a 3-wire cable with 0,75 mm (AWG 18) square of one wire and RG-59 or RG-6 coaxial cable for the
video signal.
c) Shielded or non-shielded twisted pair (not recommended):
• distance up to 25 meters (82 ft.) non-shielded twisted pair can be used;
Power
Audio
Ground
Video
Power
Audio
Ground
Video
Power
Audio
Ground
Video
Power
Audio
Ground
Video
Power
Audio
Ground
Video
Power
Audio
Ground
Video
0 - 50 m
Shield
Shield
50 - 80 m
80 - 100 m
RG-59 or RG-6
0 - 25 m
25 - 50 m
Power
Audio
Ground
Video
Power
Audio
Ground
Video
Power
Audio
Ground
Video
Power
Audio
Ground
Video
Shield Shield
164 - 262 ft.
0 - 164 ft.
262 - 328 ft.
0 - 82 ft.
82 - 164 ft.
Outdoor
panel 1
Outdoor
panel 2
Lock
Lock power
supply
Lock
Lock power
supply
Power
Audio
GND
Video
Power
Audio
GND
Video
Not used
Alarm
GND
Video
Not used
Alarm
GND
Video
Video
GND
GND
+12 V
Video
GND
GND
+12 V
CCTV 2
CCTV 1
Camera
power
suppply
Camera
power
suppply
Motion
sensor
Motion
sensor
RJ-45 connector
