APPENDIX
MOUNTING BRACKET FOR POSITIONER – LINEAR STROKE VALVE

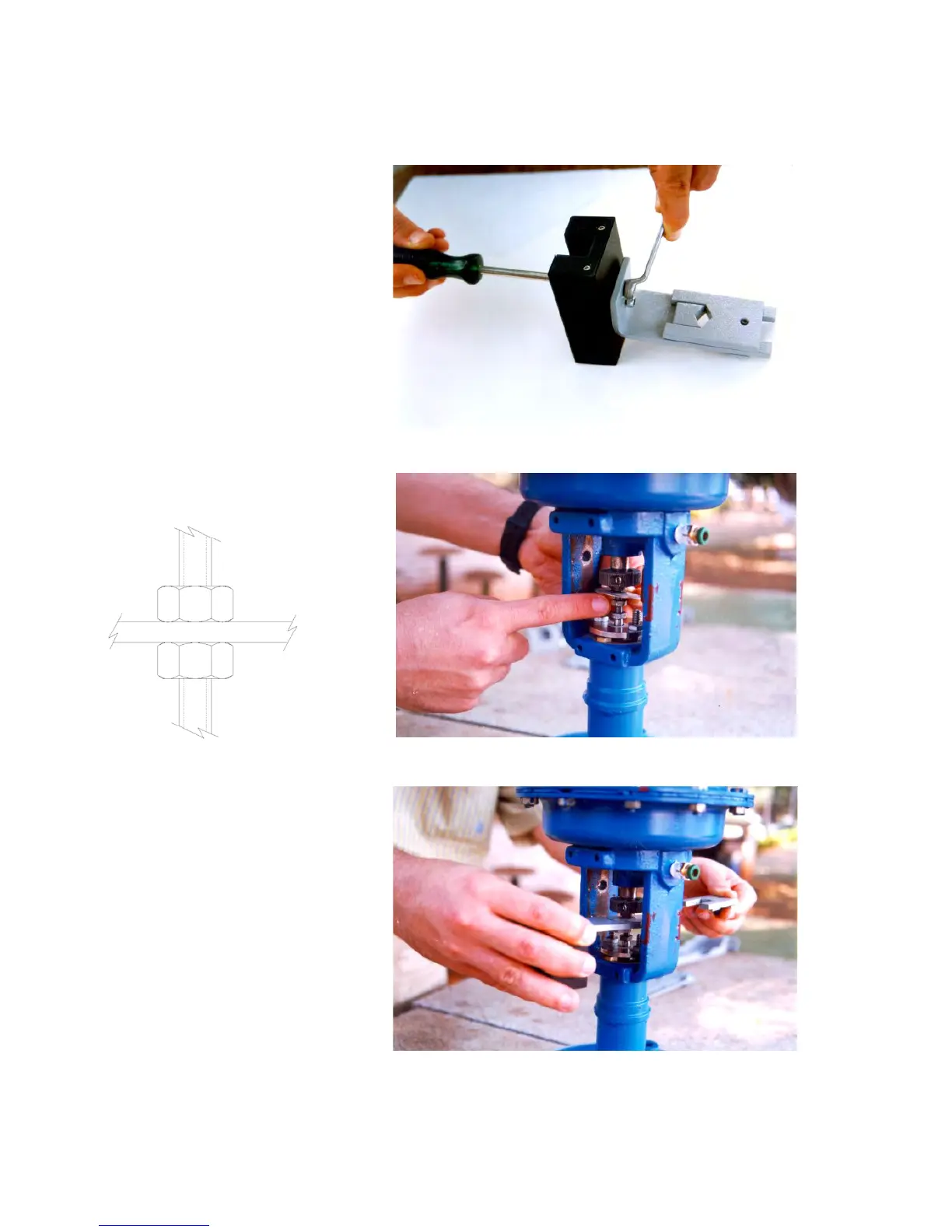

MOUNTING INSTRUCTIONS
1 –Attach the magnet to the magnet bracket
support before connect them to the valve
stem.
2 - The stem nuts should be used to fasten
the magnet bracket.
3 – Mount the magnet assembly using the
nuts of the valve stem. The mounting
bracket has two parts that should be
mounted to the stem.
To Next Page
