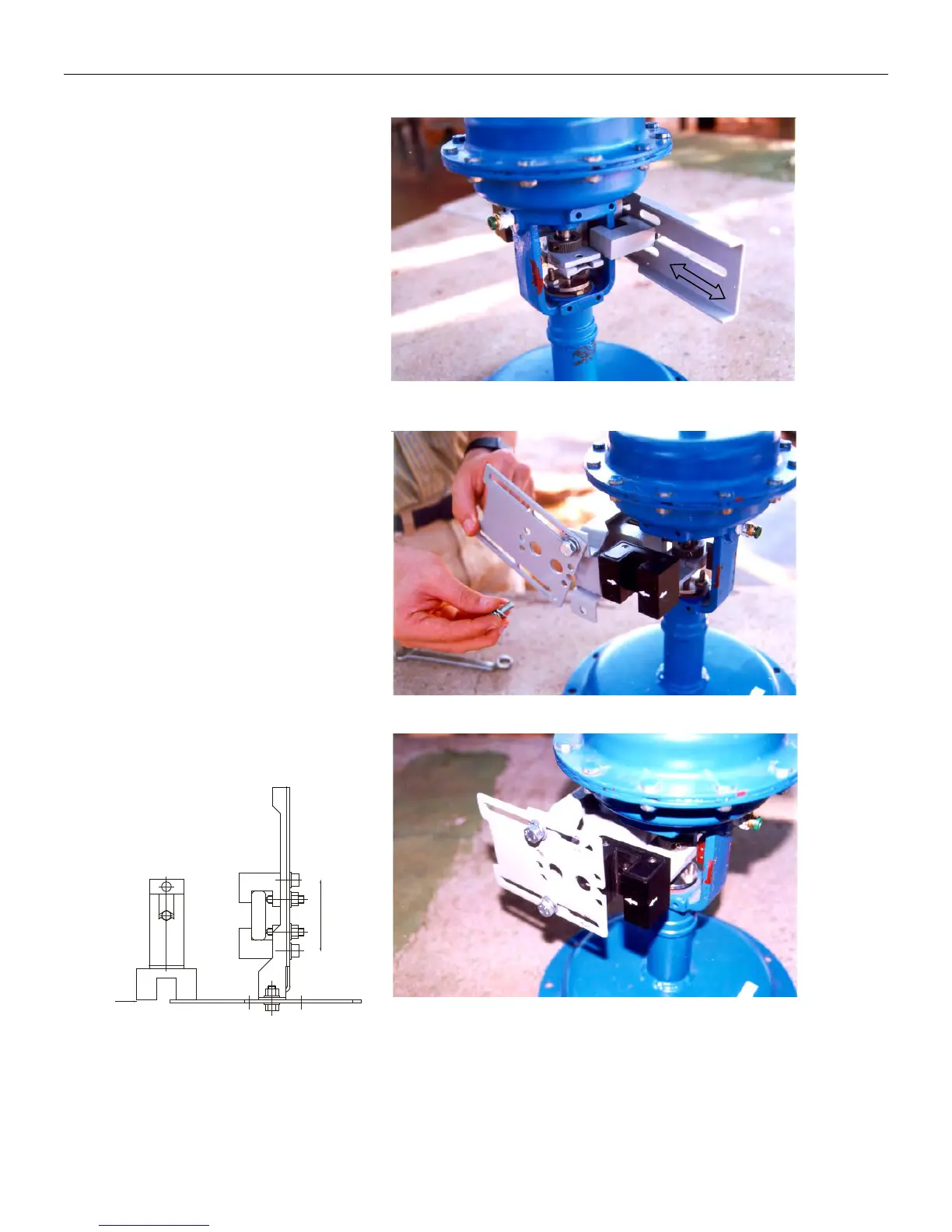

BFY – MOUNTING BRACKET FOR POSITIONER FY 3
7 – Adjust the clamps according to the
width of the yoke and tighten the bolts
finger tight.
8 – Mount the positioner back plate. Tighten
the nuts finger tight.
9 – Use the plate as a guidance to adjust
the position of the positioner so that the
back plate is about 1 mm apart from the
magnet.
BACK PLATE
ADJUST
