SMAR FY301 - Pillar Type Actuator Mounting

6 Mounting Instructions
MOUNTING DETAILS FOR THE PILLAR TYPE ACTUATOR

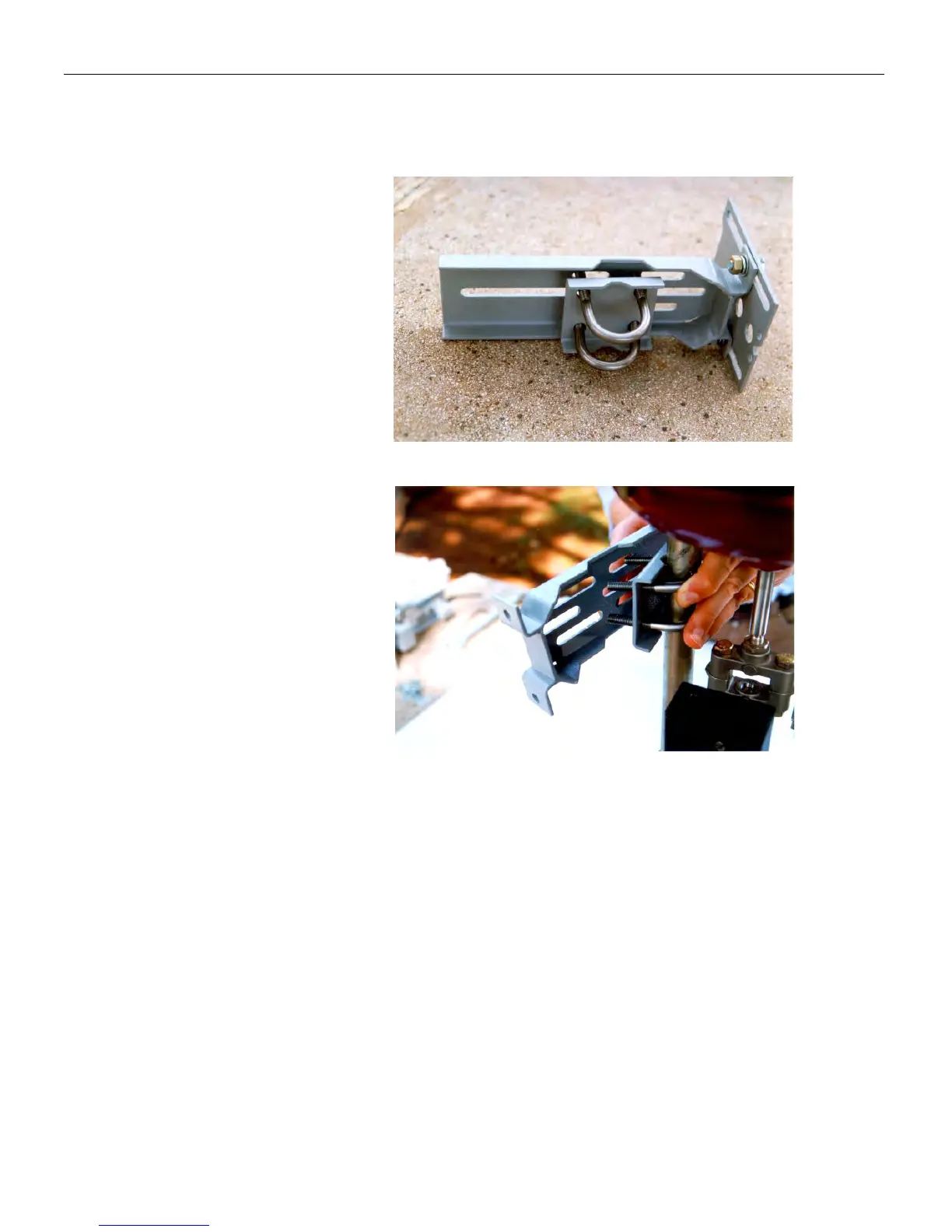

15 - This is the mounting bracket using U-
clamps to be mounted on pillar type
actuators.
16 – After assembling the U-clamps, follow
the steps 8 to 13.
