5. Installation (continued)
Contents
5.1 Mechanical Installation (continued)
5.1.2 STR behind Canon Booklet Trimmer D1

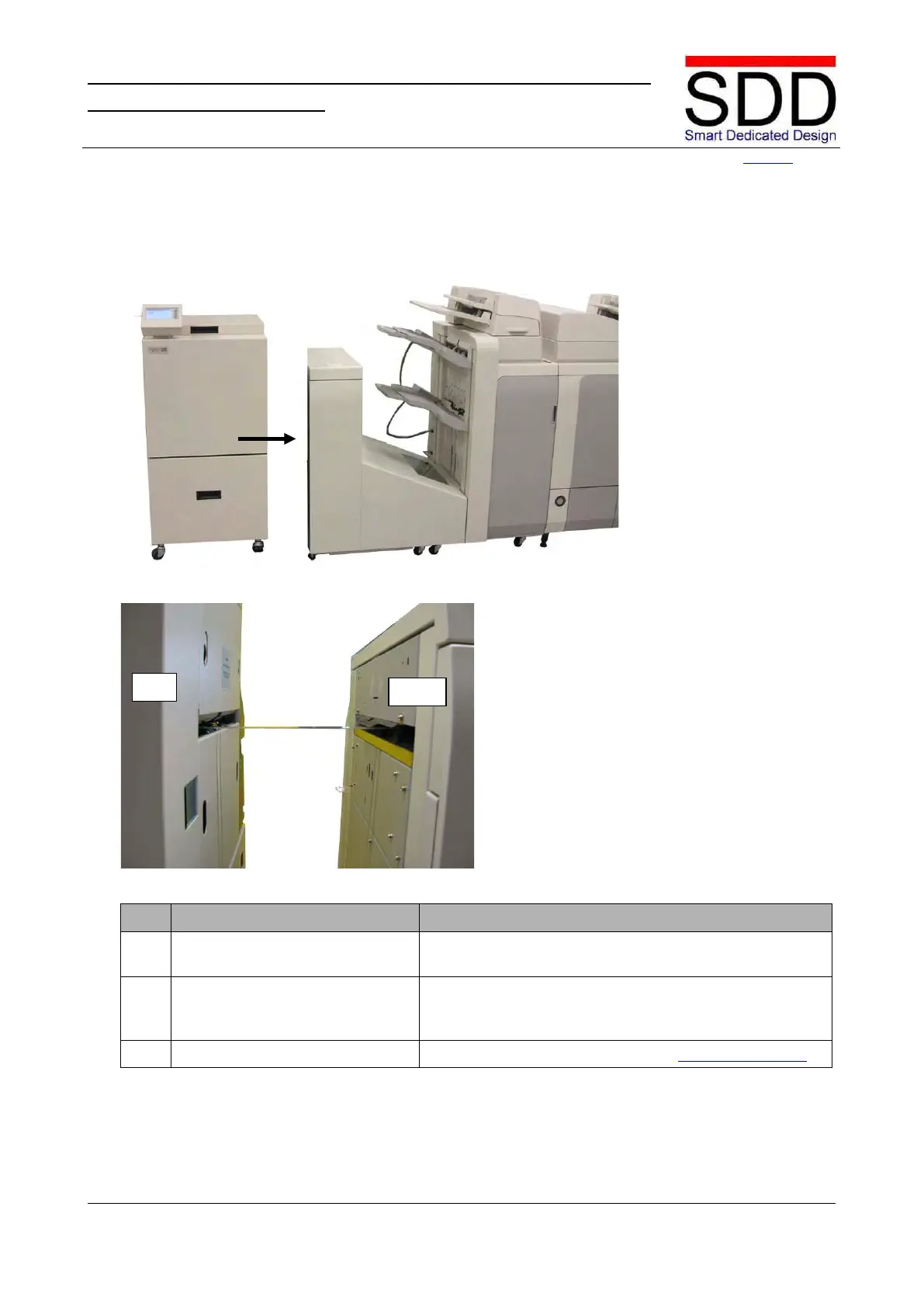

Fig. 5.1.2.1
Fig. 5.1.2.2
Step
Action
Remarks
1.
Positioning STR.
Position STR behind Canon Booklet Trimmer (Fig.
5.1.2.1) and align units as per following steps.
2.
Horizontal alignment
Horizontally align the lower edge of the STR Infeed slot
on the lower edge of the Canon Booklet Trimmer Outfeed
slot (Fig. 5.1.2.2).
3.
Adjust STR height.
If necessary adjust STR height (see 4.3 Preparing STR)
STR
D1
