5. Installation (continued)
Contents
5.1 Mechanical Installation (continued)
5.1.2 STR behind Canon Booklet Trimmer D1 (continued)

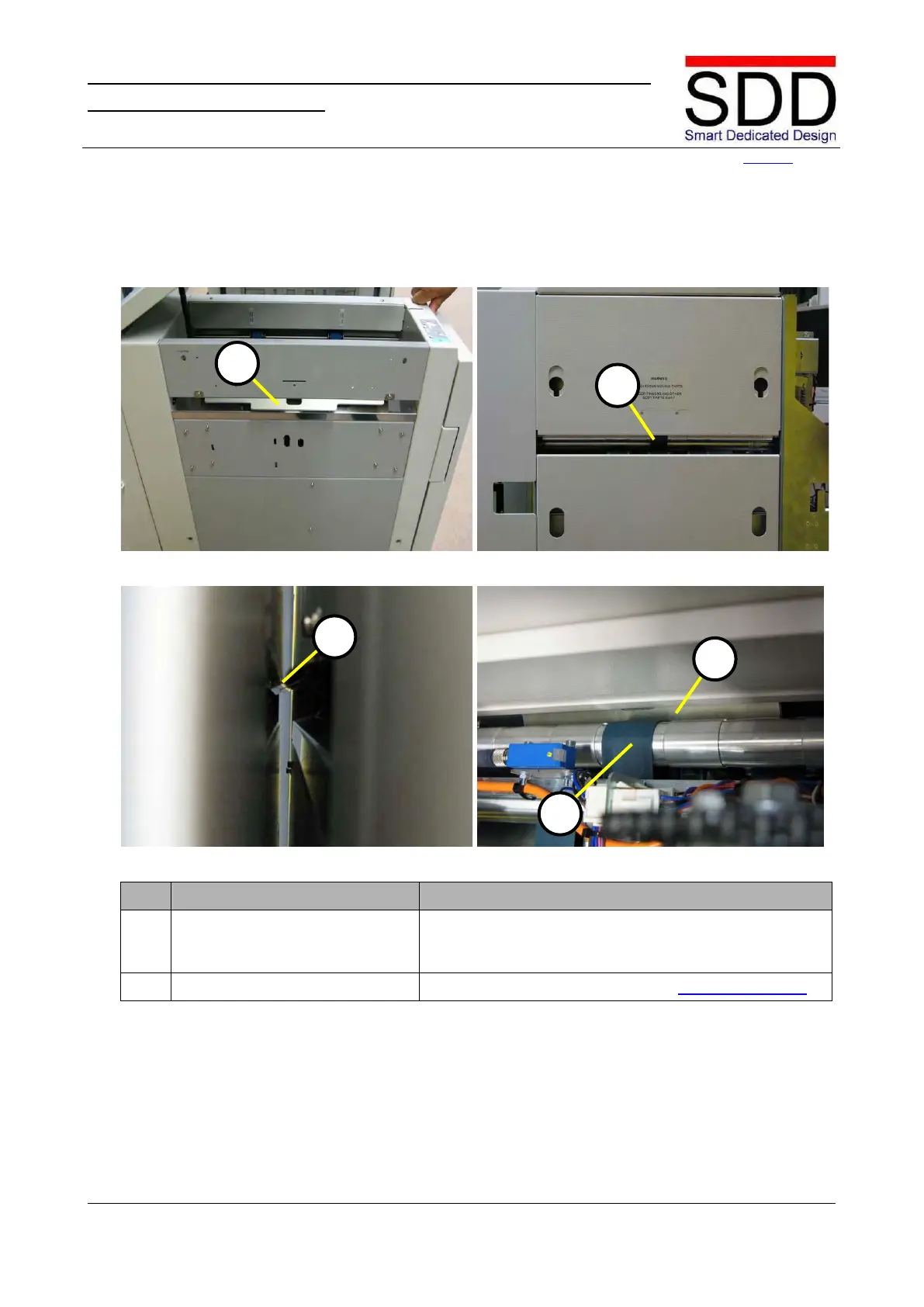

Fig. 5.1.2.6 Fig. 5.1.2.7
Fig. 5.1.2.8 Fig. 5.1.2.9
Step
Action
Remarks
6.
Align Booklet Guide.
Booklet Guide [A] (Fig. 5.1.2.6) should not touch STR
Upper Infeed Roller [B] (Fig. 5.1.2.7) but be 2 to 5 mm
below the roller (Fig. 5.1.2.8. & 5.1.2.9).
7.
Adjust STR height.
If necessary adjust STR height (see 4.3 Preparing STR)
A
B
A
B
A
