You can also connect additional devices to your IPTV STB:
• Microphone
• 2.5’’ SATA internal HDD – SML-292 HD premium only
• USB ash drive (USB Flash) or other USB device (web camera, external
HDD)
• External IR receiver

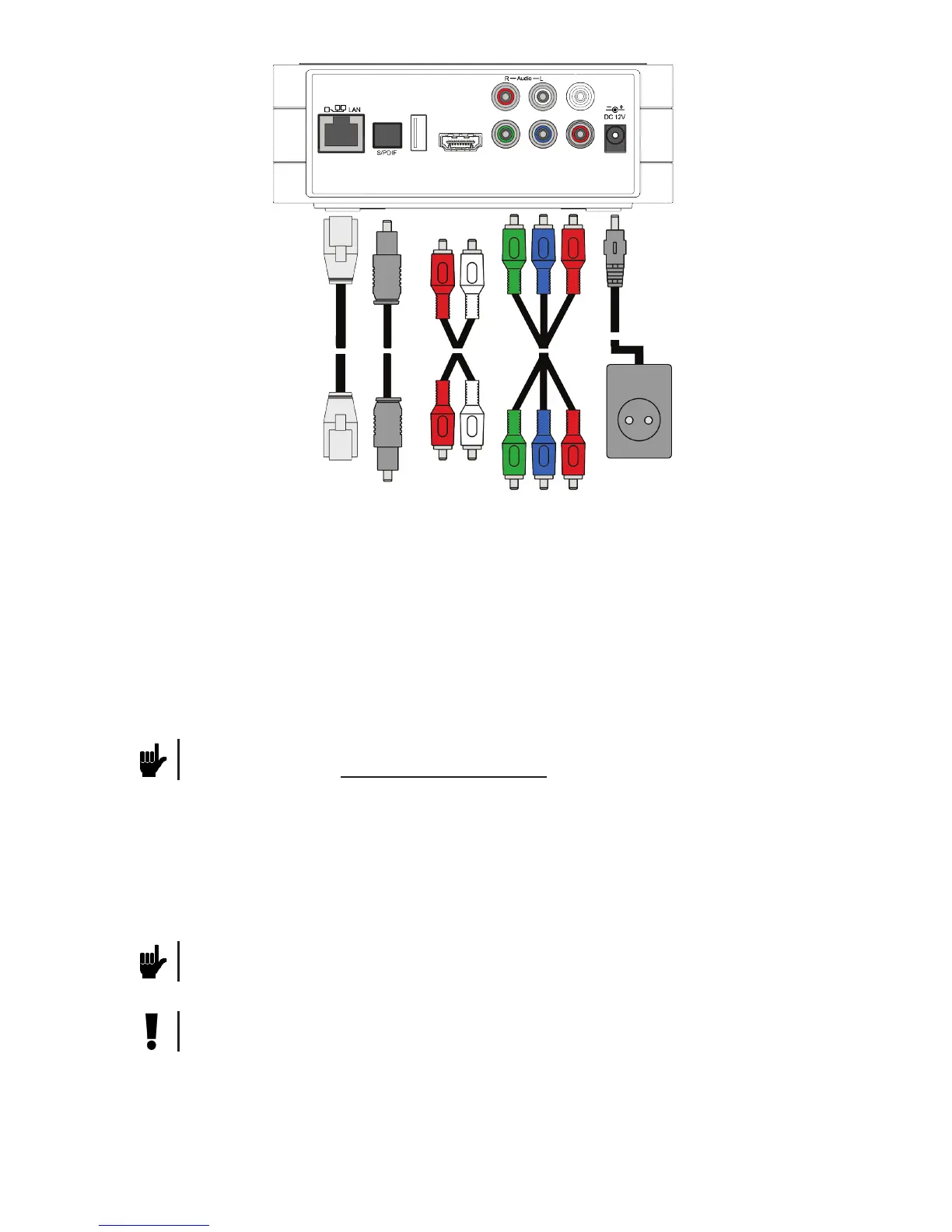

The connection scheme via the component video slot YPbPr
and audio slot RCA or S/PDIF
To an Internet router
Power supply
(220 V)
To an audio receiver or
audio system (if any)
To a TV set
To a TV set or
audio system
9
Note. If your device is provided with the RF remote control, it has no slot to
plug in an external IR remote control.
Note. The list of compatible microphones is available on the IPTV STB manu-
facturer’s web site: www.smartlabs.tv/iptvstb
Attention! Before using the RF remote control, you should connect it to the
IPTV STB, as it is described in the Connecting the RF Remote Control sec-
tion.
