SmartLabs SML-272 SD - Indicators and Slots

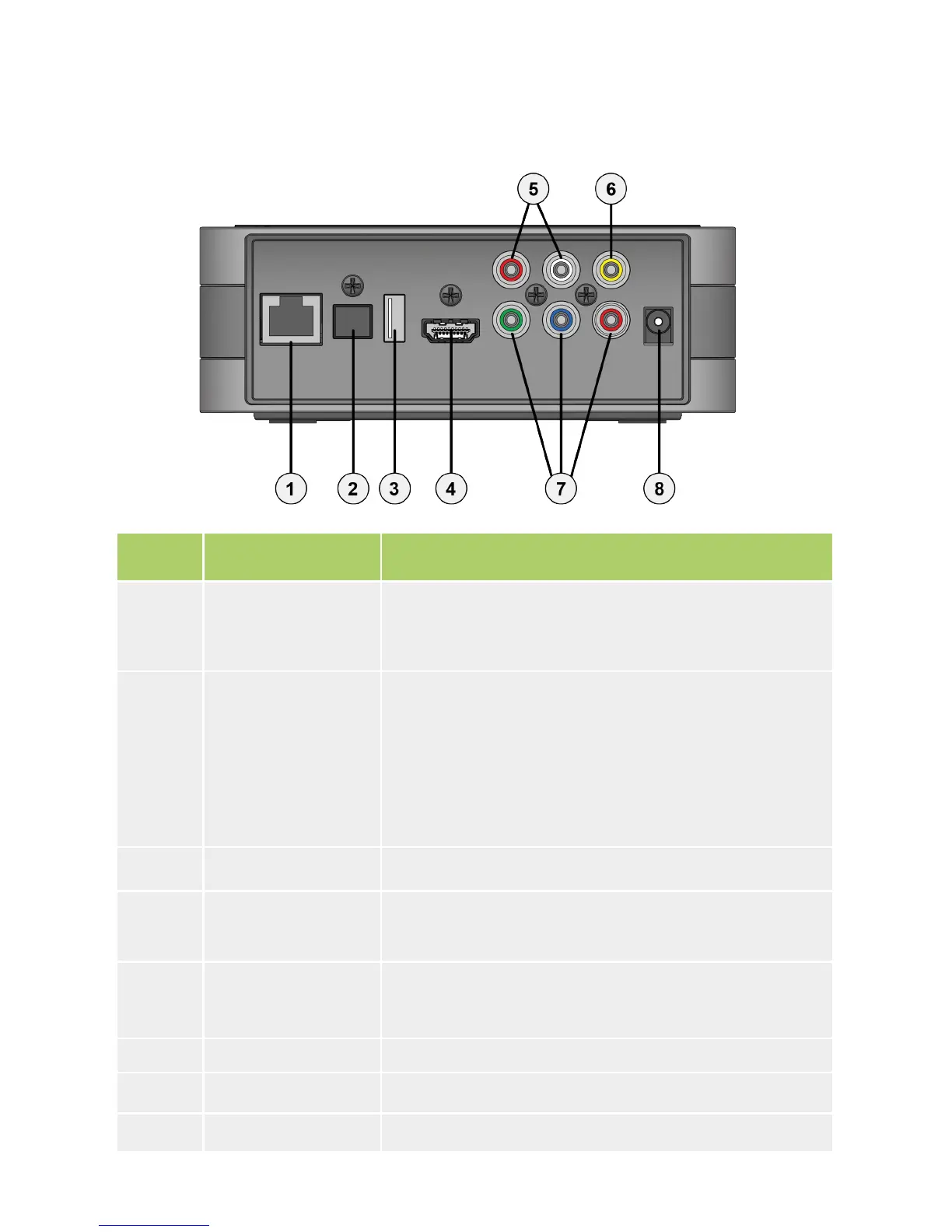

Back Panel
Number Slot Purpose
1 LAN
Ethernet port 10/100 Mbit/s for the connection to a
network device (the service provider’s equipment or
Internet router).
2 S/PDIF
Optical audio output to audio receiver or speakers of
the PCM or Dolby Digital 5.1 digital audio format.
It is possible to switch the output mode from the
application’s menu, if your service provider provides
this feature.
3 USB USB 2.0 port for the connection to external devices.
4
HDMI (Нет в SML-
272 SD)
Audio+video output of high denition for the connec-
tion to a TV set or AV receiver.
5 R-Audio-L
Stereo audio output.
R - Right channel.
L - Left channel.
6 Video Composite video output.
7 Y, Pb, Pr Component video output.
8 DC 12V Power adapter slot.
