T4 (053B) Series Installation Guide
CD354/220116 Smartscan Ltd

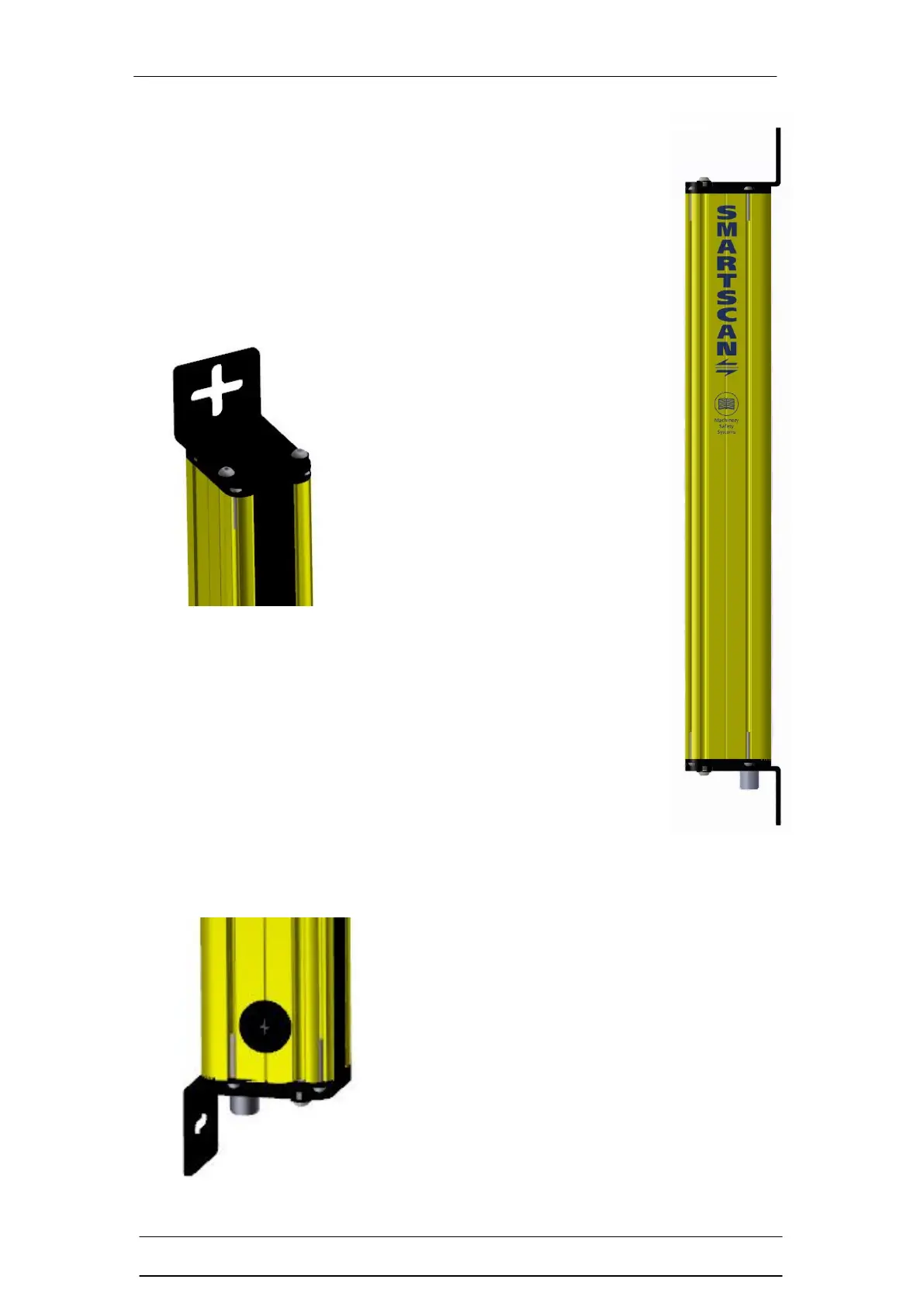

The T4 (053B) series safety light curtain is supplied with
mounting brackets fitted as standard. The mounting bracket
may be fixed at 90 degrees, with a +/-3˚ adjustment, (use a
3mm Allen key) before the brackets are fully tightened.
Use 6mm bolts for mounting the safety light curtain and ensure
they are fixed so as to prevent any movement.
Measurements are shown for
the overall length (L) (including
mounting brackets), fixing
centres (CTR) and detection
zone (DZ). The individual values
in mm for each model are listed
in Figure N of the installation
guide.
The detection zone or protected
height is needed to select the
appropriate length to cover the
access area so that any
approach to the danger must be
through the detection zone
(infrared field).
The dimensions including the mounting bracket are overall
length (L) x 48mm width x 61mm depth.
Please ensure the dip switch cover on the receiver head (RX) is securely in place
to maintain the overall sealing integrity.
