SMARTSCAN T4 Series - Page 37

T4 (053B) Series Installation Guide
CD354/220116 Smartscan Ltd
33

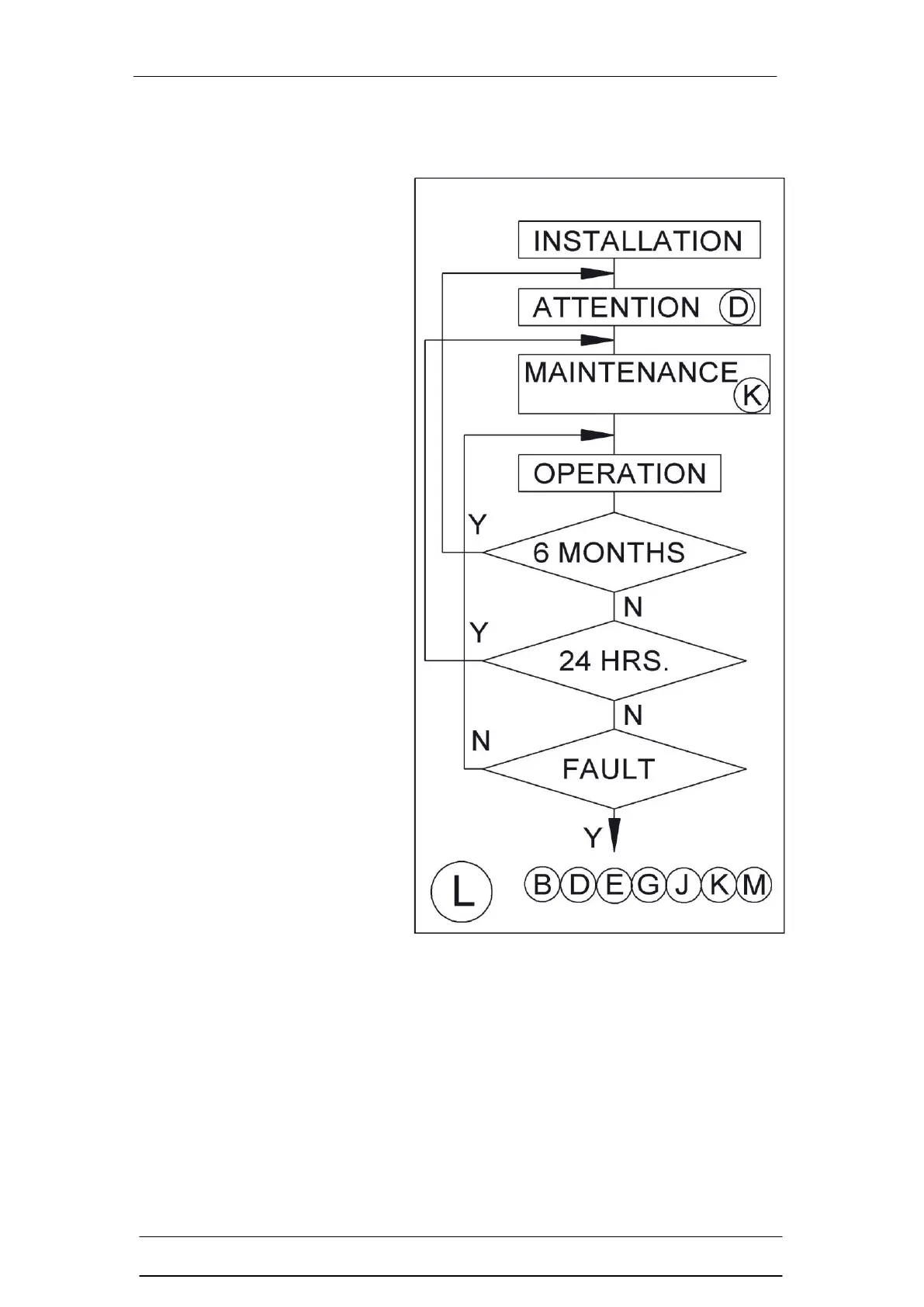

Figure L – Operation Cycle
 Before installation read and
understand the Installation
Sheet provided paying
particular attention to the
information provided in Fig.
D
 Refer to Fig. K for test and
maintenance procedures
 Every 24 hours carry out
tests as indicated in Fig. K
 Every 6 months check the
entire installation paying
particular attention to Fig. D
 If the equipment fails to
operate as intended check
the electrical connections
as shown in Fig. E
