T4 (053B) Series Installation Guide
CD354/220116 Smartscan Ltd

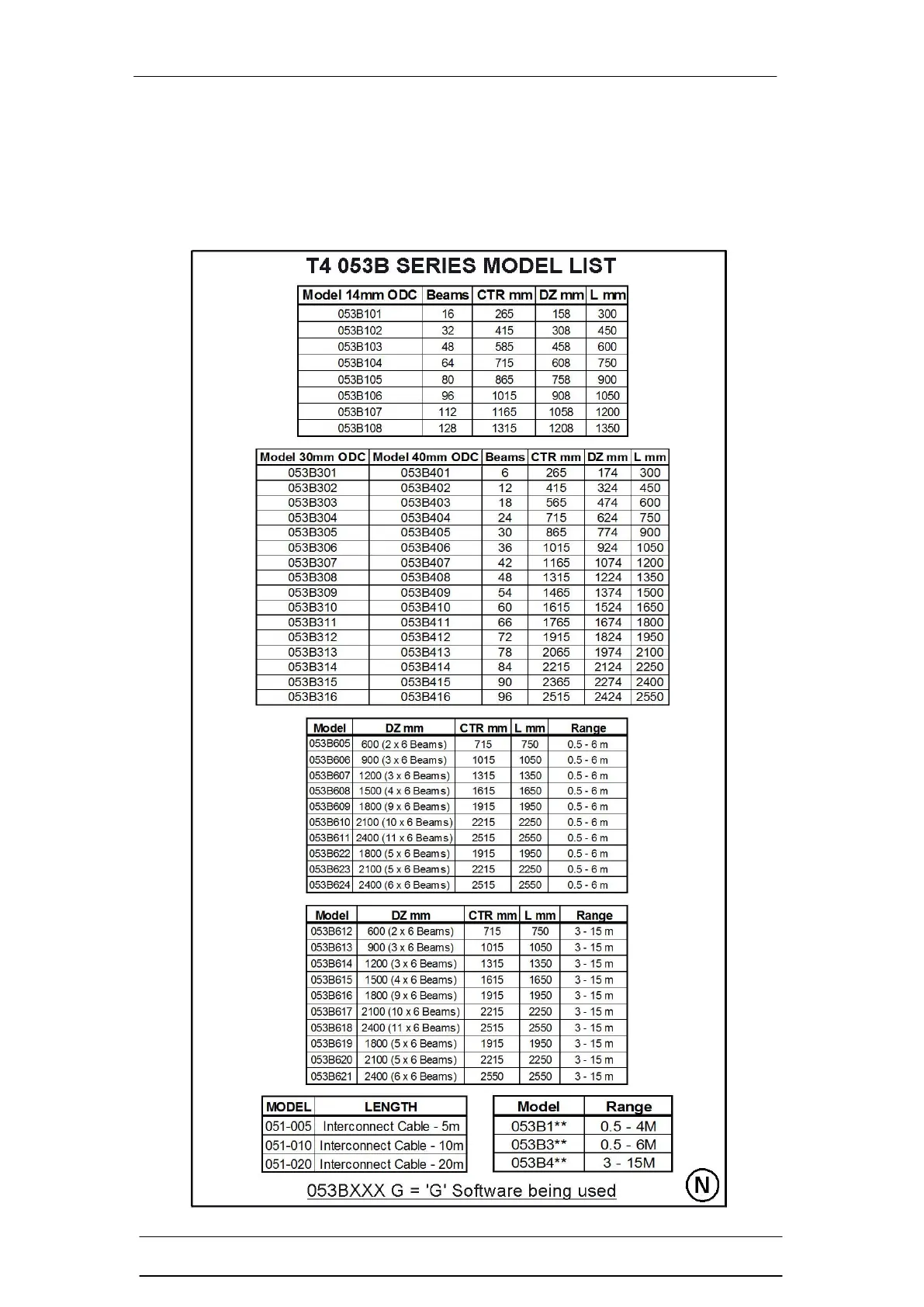

Figure N – Model List
Fig. M shows the T4 (053B) series safety light curtain model numbers with their
corresponding number of Infrared beams, detection zone width (DZ), fixing
centres (CTR), overall length (L), and object detection capability (ODC). A list of
the operating ranges for the different model numbers is also provided.
