T4 (053B) Series Installation Guide
CD354/220116 Smartscan Ltd
T4 (053B) series (LUM)
cable showing M12
connector

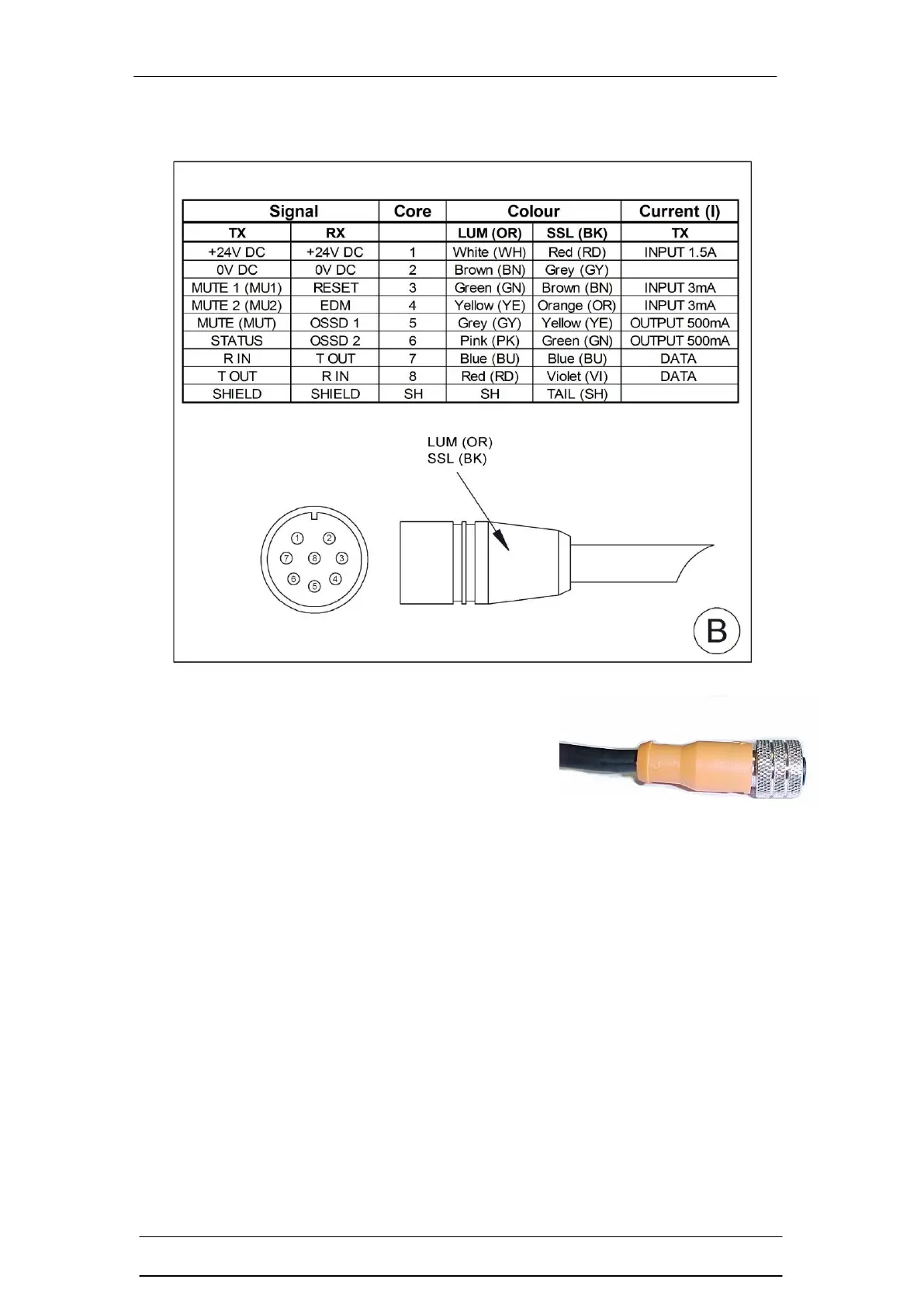

Figure B – Cable Conductors
The picture above shows the M12 connector pin
out, the colour coding for the cable cores, the
signal function for the corresponding cable core,
and the current rating for input/output signals.
The standard cable supplied will use the LUM
colour code shown above.
The T4 (053B) series safety light curtain requires a connection cable on the
Transmitter (TX) head and a connection cable on the Receiver (RX) head. They
are connected via the M12 (8 way) socket located on the bottom end cap. The
M12 socket also forms a locator for the mounting bracket.
