S
OFTWARE
I
NSTALLATION
33

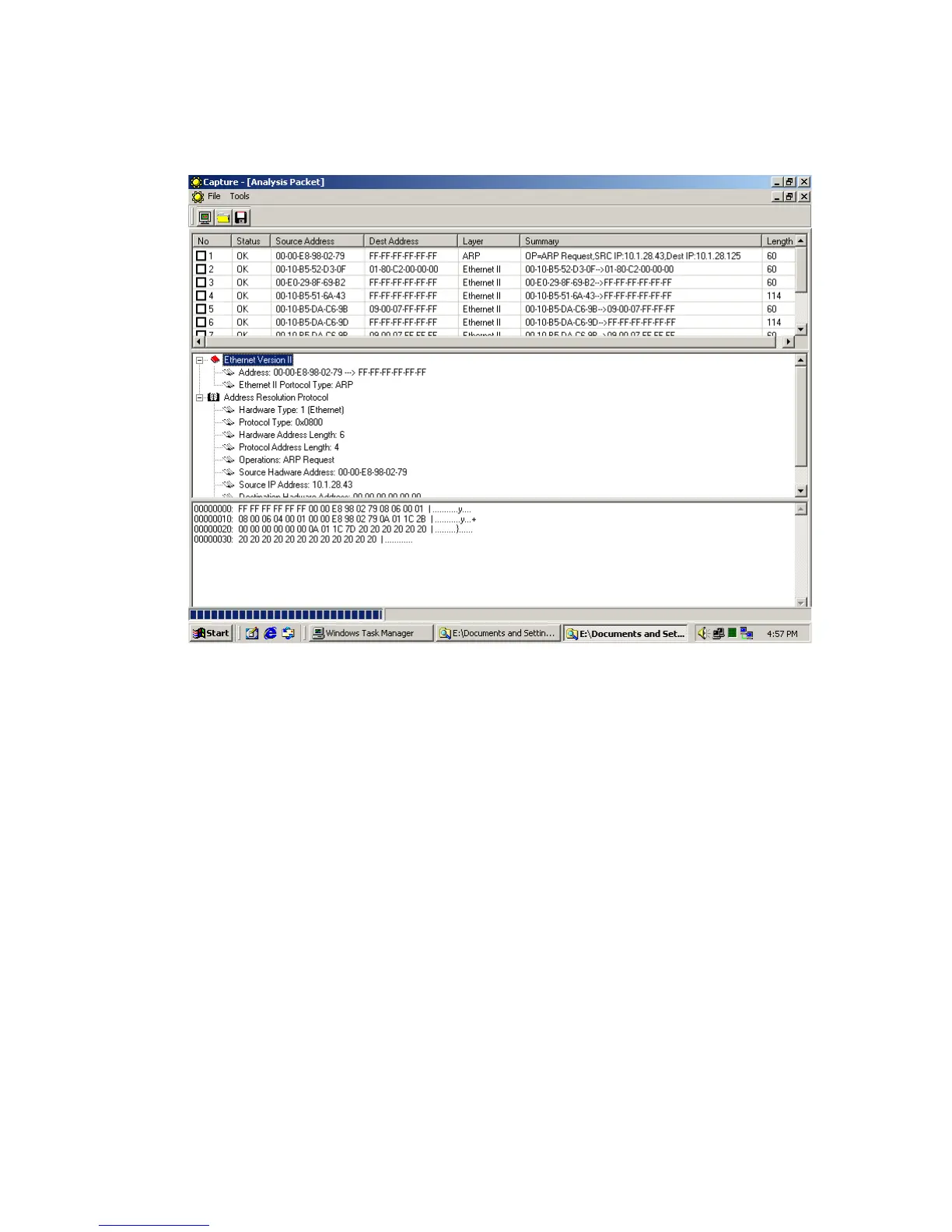

Packet Analysis
The packet Analysis screen features three windows:
The top window gives basic information on captured packets, including
which layer the packets belong to.
The center window shows detailed data on each layer.
The lower window shows the HEX and ASCII code related to the selected
data in the top window.
