SMC Networks HRR012-A*-20 Series Operation Manual

HRX-OM-W004
Chapter 2 Contact input/output communication
HRR Series 2.4 Setting and checking
2-5

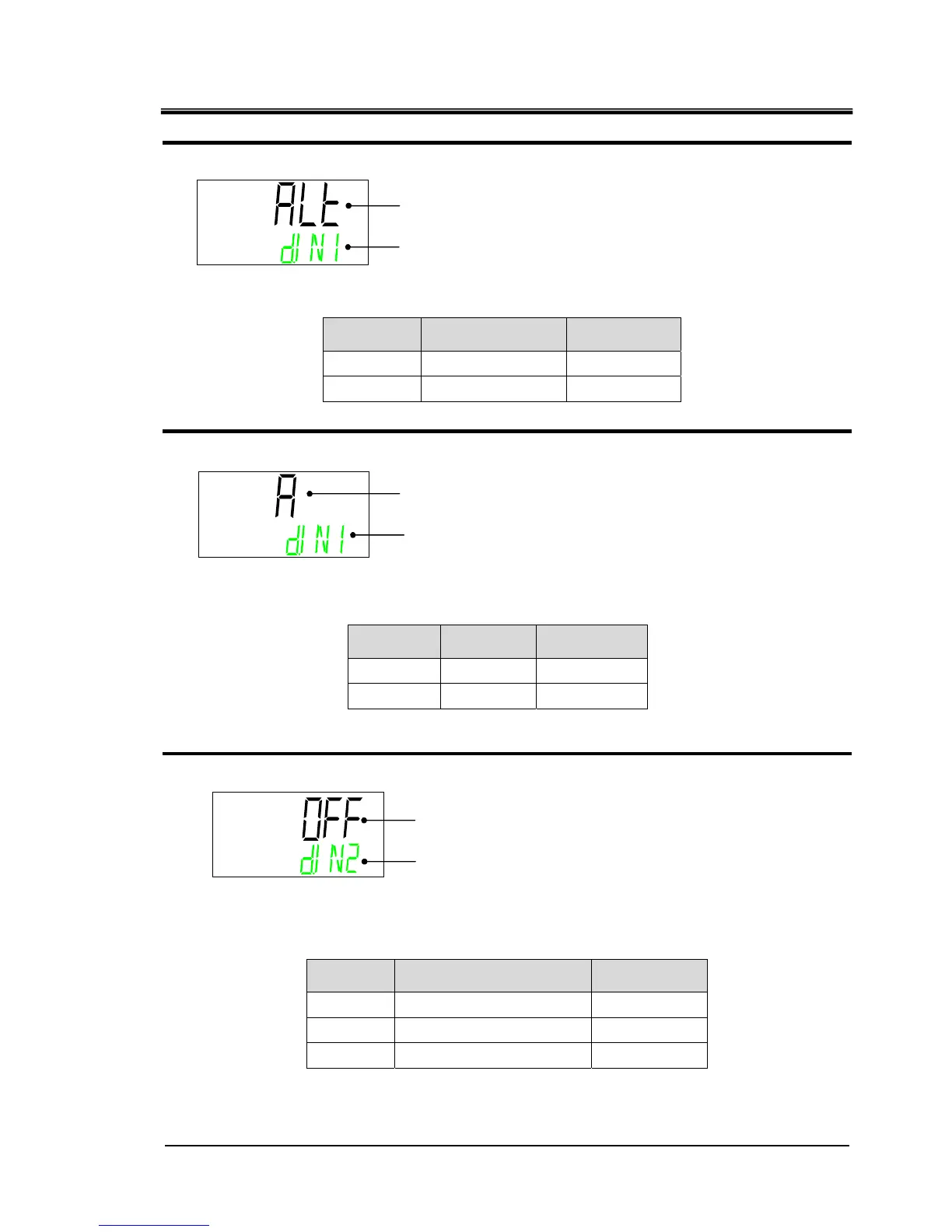

Contact input signal 1 type
3. Press the [▼] key. Displays screen for setting the type of Contact input signal 1.
Displays the type of Contact input signal 1.
Contact input signal 1
operation
4. Press the [▼] key. Displays screen for setting the operation of the Contact input signal 1.
Select the Contact input signal 1 operation.
Contact input signal 2 Select function
5. Press the [▼] key. Displays screen for setting the function of the Contact input signal 2.
Displays the function of the Contact input signal 2.
Set value Contents
Initial value
OFF
No input signal
○
STOP
Stop signal input
―
SW
External switch signal input
―
Set value Contents
Initial value
ALT
Alternate signal
○
mT
Momentary signal
―
Set value Contents
Initial value
A
N.O. type
○
B
N.C. type
―
Contact input signal 1 type
DIN1 ⇒ SW ⇒ TYPE(Alternately displayed)
Contact input signal 1 operation
DIN1 ⇒ CON ⇒ TYPE(Alternately displayed)
Contact input signal 2 function
DIN2 ⇒ SEL(Alternately displayed)
