Chapter 2 Contact input/output communication
2.4 Setting and checking HRR Series
2-6

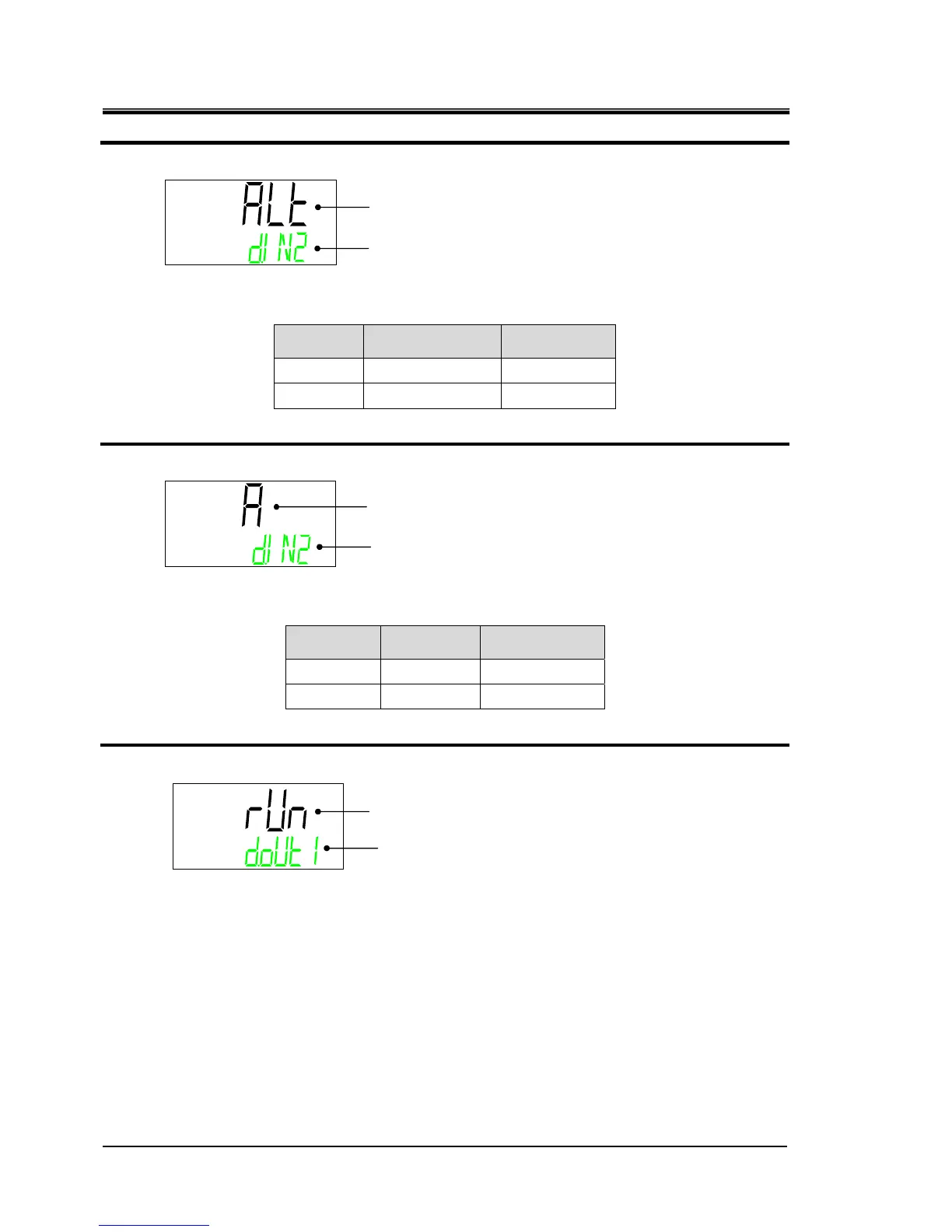

Contact input signal 2 type
6. Press the [▼] key. Displays screen for setting the type of Contact input signal 2.
Displays the type of Contact input signal 2.
Set value Contents
Initial value
ALT
Alternate signal
○
mT
Momentary signal
―
Contact input signal 2 operation
7. Press the [▼] key. Displays screen for setting the operation of the Contact input signal 2.
Select the Contact input signal 2 operation.
Set value Contents
Initial value
A
N.O. type
○
B
N.C. type
―
Contact output signal 1 function
8. Press the [▼] key. Displays setting screen for function of contact output signal 1 .
Displays the function of the Contact output signal 1.
Contact input signal 2 type
DIN2 ⇒ SW ⇒ TYPE(Alternately displayed)
Contact input signal 2 operation
DIN2 ⇒ CON ⇒ TYPE(Alternately displayed)
Contact output signal 1 function
DOUT1 ⇒ SEL(Alternately displayed)
